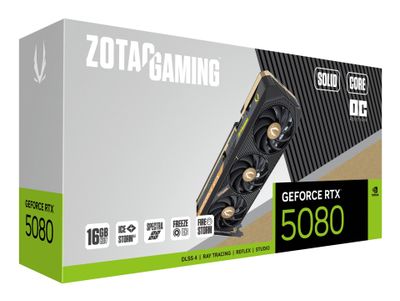

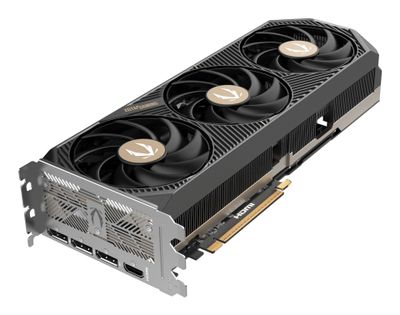

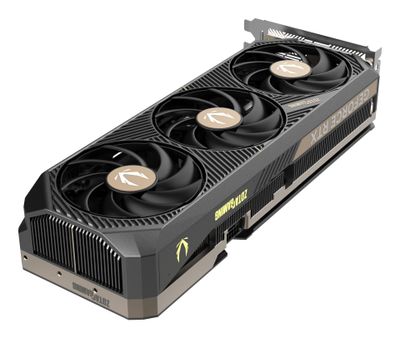

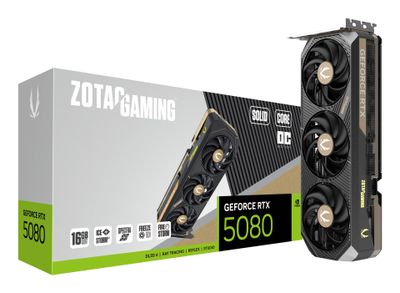

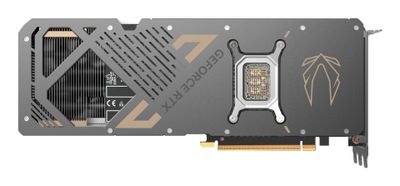

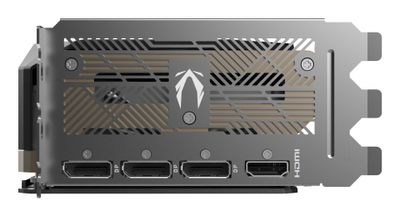

Zotac GAMING GeForce RTX 5080 SOLID CORE OC NVIDIA 16 GB GDDR7

Zotac GAMING GeForce RTX 5080 SOLID CORE OC NVIDIA 16 GB GDDR7_thumb_3

Zotac GAMING GeForce RTX 5080 SOLID CORE OC NVIDIA 16 GB GDDR7_thumb_4

Zotac GAMING GeForce RTX 5080 SOLID CORE OC NVIDIA 16 GB GDDR7_thumb_5

Zotac GAMING GeForce RTX 5080 SOLID CORE OC NVIDIA 16 GB GDDR7_thumb_6

Zotac GAMING GeForce RTX 5080 SOLID CORE OC NVIDIA 16 GB GDDR7_thumb_7

Zotac GAMING GeForce RTX 5080 SOLID CORE OC NVIDIA 16 GB GDDR7_1

Zotac GAMING GeForce RTX 5080 SOLID CORE OC NVIDIA 16 GB GDDR7_2

Zotac GAMING GeForce RTX 5080 SOLID CORE OC NVIDIA 16 GB GDDR7_3

Zotac GAMING GeForce RTX 5080 SOLID CORE OC NVIDIA 16 GB GDDR7_4

Zotac GAMING GeForce RTX 5080 SOLID CORE OC NVIDIA 16 GB GDDR7_5

Zotac GAMING GeForce RTX 5080 SOLID CORE OC NVIDIA 16 GB GDDR7_6

Zotac GAMING GeForce RTX 5080 SOLID CORE OC NVIDIA 16 GB GDDR7_7

Article-No.:

269090

Manufacturer-No.:

ZT-B50800J2-10P

EAN/GTIN:

8886307700568

WEEE Nummer

DE83654239

Compare

Print view

Technical specifications

General

Packaged Quantity

Video Output

Interface Type

PCI Express 5.0 x16

Graphics Processor

NVIDIA GeForce RTX 5080

Max External Resolution

7680 x 4320

Max Monitors Supported

API Supported

DirectX 12 Ultimate, Vulkan 1.4, OpenGL 4.6

Video Adapter Features

Freeze Fan Stop, Triple Fan Design, Reinforced Metal Frame, Nvidia Broadcast, Metal backplate, IceStorm 3.0, NVIDIA DLSS 4, NVIDIA Blackwell GPU architecture, NVIDIA Reflex 2, 4th gen Ray Tracing Cores, 5th gen Tensor Cores, NVIDIA Avatar Cloud Engine (ACE), NVIDIA Multi Frame Generation, NVIDIA Frame Warp, 90mm BladeLink fans, 2.5-slot Fan Cooler, Vapor chamber cooling technology, NVIDIA G-Sync ready, SPECTRA Lighting System, Active Fan Control

Clock Speed

2640 MHz

Graphics Processor Manufacturer

NVIDIA

HDCP Compatible

Type

Graphics card

CUDA Cores Qty

10752

Output Ports (compact list)

HDMI, 3 x DisplayPort

Supported Video Signal

HDMI, DisplayPort

Video Memory

Technology

GDDR7 SDRAM

Bus Width

256-bit

Installed Size

16 GB

Interfaces

Interfaces Details

HDMI, 3 x DisplayPort

Software

Type

NVIDIA Studio drivers, GeForce Game Ready Drivers, ZOTAC FireStorm, GeForce Experience

Power Device

Power Consumption Operational

360 watt

System Requirements

Additional Requirements

16 pin PCI Express power connector

OS Required

Windows 11, Windows 10 64-bit Edition

Required Power Supply

850 W

Dimensions & Weight

Width

5,57 cm

Depth

30,35 cm

Height

11,58 cm

Dimensions & Weight (Shipping)

Shipping Width

20,7 cm

Shipping Depth

9,9 cm

Shipping Height

42,4 cm

Miscellaneous

Color Category

Beige, Black, Gray

Description

The ZOTAC GAMING GeForce RTX™ 5080 SOLID CORE OC is a high-performance graphics card that excels in both gaming and content creation with a 2.5 slot design. Featuring NVIDIA‘s cutting-edge Blackwell architecture and DLSS4, and structural enhancements like an all-metal mid-frame, the SOLID CORE OC is the perfect blend of high performance and build flexibility.

Powerful graphics processing
The NVIDIA GeForce RTX 5080 features a robust architecture with 10752 CUDA cores that enables high frame rates in graphically intense games and applications.
Dynamic visual output
With a maximum external resolution of 7680 x 4320, this card delivers sharp and detailed graphics, perfect for high-resolution displays and immersive gaming.
Advanced cooling system
The 2.5-slot Fan Cooler with IceStorm 3.0 technology ensures performance while reducing noise levels, allowing for uninterrupted gameplay.
Versatile connectivity options
Featuring multiple HDMI and DisplayPort outputs, this graphics card supports a variety of monitors, enhancing flexibility for different setups.
Enhanced gaming features
Equipped with NVIDIA G-Sync and Reflex technology, this card provides a smooth gaming experience with reduced latency and stutter.

Product content

ZOTAC GAMING GeForce RTX 5080 SOLID CORE OC Edition
ZOTAC FireStorm, GeForce Experience, NVIDIA Studio drivers, GeForce Game Ready Drivers
Graphics card support bracket, 16-pin to 3x 8-pin cable adapter
