Ubiquiti UniFi Flex 2.5G PoE - switch - 10 ports - managed

Article-No.:
263831
Manufacturer-No.:
USW-FLEX-2.5G-8-POE
EAN/GTIN:
0810084695968
WEEE Nummer
DE46285170
Technical specifications

General

Packaged Quantity
1

Performance

Performance
Non-blocking switching throughput: 30, Forwarding rate: 45 Mpps, Switching capacity: 60 Gbps

Ports

Qty
8
Type
2.5GBase-T

Second Ports

Qty
1
Type
10Gb Ethernet

Third Ports

Qty
1
Type
10Gb Ethernet SFP+

Capacity

Capacity
VLANs supported: 256, MAC addresses: 4000

Networking

Type
Switch
Ports Qty
10
Routing Protocol
RSTP, STP
Power Over Ethernet (PoE)
PoE++
Jumbo Frame Support
Yes

Power Device

Power Provided
64 Watt
Type
External power adapter

Dimensions & Weight

Width
21,29 cm
Depth
9,94 cm
Height
3,35 cm

Miscellaneous

Color Category
White
Description
The Ubiquiti UniFi Flex 2.5G PoE is a switch designed to meet the demands of modern networking environments. With a switching capacity of 60 Gbps and non-blocking throughput, this device ensures reliable performance for various applications. It supports up to 4,000 MAC addresses and 256 VLANs, allowing for extensive network segmentation and management. Features like flow control, port mirroring, Jumbo frames support, and advanced traffic management capabilities such as storm control and rate limiting enhance functionality. The switch operates effectively in a range of conditions, with a temperature tolerance from -20°C to 45°C and humidity levels between 10% and 90% (non-condensing). Its multiple mounting options (desktop, DIN rail, or wall-mounted) provide flexibility in deployment, making it suitable for various installations without compromising performance.
  • Robust performance
    The Ubiquiti UniFi Flex 2.5G PoE delivers a non-blocking switching throughput of 60 Gbps and a forwarding rate of 45 Mpps, ensuring that data is transmitted efficiently without delays.

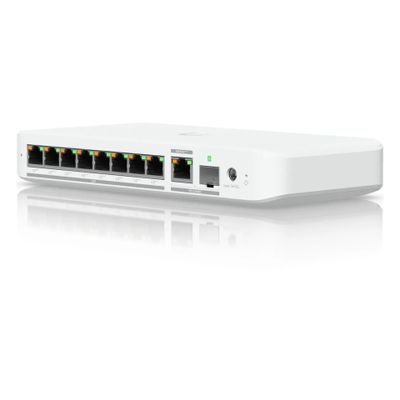

  • Extensive connectivity
    Equipped with 10 ports, including 8 x 2.5GBase-T and 2 x 10Gb Ethernet, this switch supports a variety of devices, providing flexibility for network configuration.
  • Advanced management features
    This switch includes features such as port mirroring, flow control, and storm control, enabling seamless network monitoring and management to optimize performance.
  • Environmentally resilient
    With an operating temperature range from -20°C to 45°C and humidity tolerance of 10% to 90%, this device is built to function reliably in diverse environmental conditions.

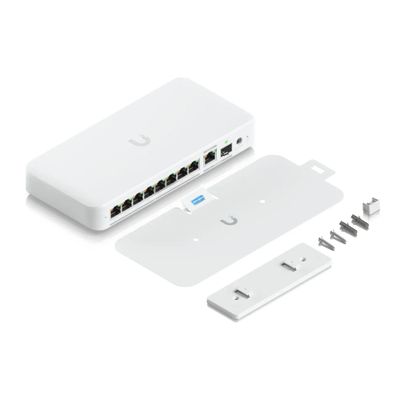

  • Flexible mounting options
    The Ubiquiti UniFi Flex can be easily mounted on a desktop, DIN rail, or wall, making it adaptable for various installation scenarios without sacrificing accessibility.
Product content

Product content

  • Ubiquiti UniFi Flex 2.5G PoE
  • External power adapter
