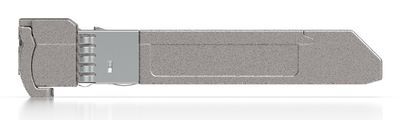

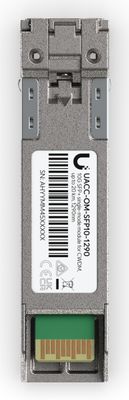

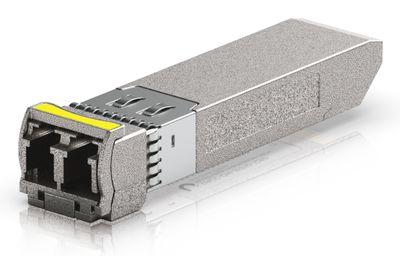

Ubiquiti UACC-OM-SFP10-1290 network transceiver module Fiber optic 11300 Mbit/s SFP+ 1290 nm

Ubiquiti UACC-OM-SFP10-1290 network transceiver module Fiber optic 11300 Mbit/s SFP+ 1290 nm_thumb_3

Ubiquiti UACC-OM-SFP10-1290 network transceiver module Fiber optic 11300 Mbit/s SFP+ 1290 nm_thumb_4

Ubiquiti UACC-OM-SFP10-1290 network transceiver module Fiber optic 11300 Mbit/s SFP+ 1290 nm_1

Ubiquiti UACC-OM-SFP10-1290 network transceiver module Fiber optic 11300 Mbit/s SFP+ 1290 nm_2

Ubiquiti UACC-OM-SFP10-1290 network transceiver module Fiber optic 11300 Mbit/s SFP+ 1290 nm_3

Ubiquiti UACC-OM-SFP10-1290 network transceiver module Fiber optic 11300 Mbit/s SFP+ 1290 nm_4

Article-No.:

257497

Manufacturer-No.:

UACC-OM-SFP10-1290

EAN/GTIN:

0810084694701

WEEE Nummer

DE83654239

Compare

Print view

Technical specifications

General

Packaged Quantity

Networking

Type

SFP+ transceiver module

Form Factor

Plug-in module

Data Transfer Rate

10 Gbps

Data Link Protocol

10 Gigabit Ethernet

Max Transfer Distance

20 km

Optical Wave Length

1290 nm

Connectors (for SD)

Left Connector Type

LC/UPC single-mode

Power Device

Power Consumption Operational

1,2 watt

Description

SFP+ transceiver for CWDM that supports 10G connections up to 20 km using single-mode fiber with a duplex LC UPC connector.

Reliable connectivity
The 10GBase-CWDM technology enables efficient data transmission, ensuring stability and speed for networking applications.
Wide operating range
This module functions optimally in a temperature range from 0°C to 70°C, making it versatile for different environmental conditions.
Extended transfer capabilities
With a maximum transfer distance of 20 km, the transceiver supports extensive network setups.
Low power consumption
Operating at just 1.2 watts, this transceiver module minimizes energy use while maintaining performance.
Standard compliance
The module meets various compliance standards including WEEE, RCM, and UKCA, ensuring reliability and adherence to regulations.
