Product content
Product content

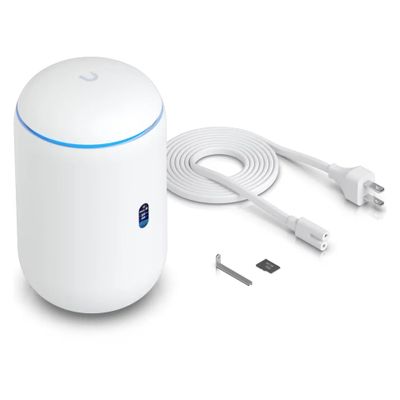

- Ubiquiti Dream Router 7
- Power cable, 64 GB microSD Card
/asset/f/e/5/8/fe58f6d00004831103b625e0dfa12355f3a87e17_267875.jpg)
/asset/0/1/e/e/01eedec5df7454ac6dea396232d38cdaec41cdfe_267875_2.jpg)
/asset/6/6/d/4/66d4bb389abde67c3d6283d4d574a15573b35fc8_267875_3.jpg)
/asset/f/e/5/8/fe58f6d00004831103b625e0dfa12355f3a87e17_267875.jpg)
/asset/0/1/e/e/01eedec5df7454ac6dea396232d38cdaec41cdfe_267875_2.jpg)
/asset/6/6/d/4/66d4bb389abde67c3d6283d4d574a15573b35fc8_267875_3.jpg)
Please login to see the price and order.
Article-No.:
267875
Manufacturer-No.:
UDR7
EAN/GTIN:
0810177160212
WEEE Nummer
DE46285170
Technical specifications
Description
Technical specifications
General
Packaged Quantity
1
Antenna
Antenna Form Factor
Internal
Chassis
Built-in Devices
Status LCD
Processor
Installed Qty
1
Manufacturer
ARM
Clock Speed
1,5 GHz
RAM
Installed Size
3 GB
Performance
Performance
Maximum data rate (2.4 GHz): 688 Mbps, IDS/IPS throughput: 2.3 Gbps, Maximum data rate (5 GHz): 4.3 Gbps, Maximum data rate (6 GHz): 5.7 Gbps, Channel width: 20 / 40 / 80 / 160 / 240 / 320 MHz
Capacity
Capacity
Number of concurrent clients: 300+, IPS signatures: 20000, BSSIDs per radio: 4
Networking
Type
Wireless router
Data Transfer Rate
10 Gbps
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6E), IEEE 802.11ax (Wi-Fi 6), IEEE 802.11be (Wi-Fi 7), IEEE 802.11n, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, 10 Gigabit Ethernet, 2.5 Gigabit Ethernet
Network / Transport Protocol
IPv6, L2TP, WireGuard, OpenVPN, IGMP, DHCP, IPSec
Routing Protocol
OSPF
MAC Address Table Size
2000 entries
Integrated Switch
3-port switch
Wireless Protocol
802.11a/b/g/n/ac/ax/be
Wi-Fi Bands
2.4 GHz / 5 GHz / 6 GHz
Expansion Slots
Expansion Slots
1 (total) / 0 (free) x microSD
Power Device
Voltage Required
AC 100-240
Frequency Required
50/60
Power Provided
50 Watt
Nominal Voltage
AC 120/230 V
Type
Internal power supply
Dimensions & Weight
Width
11 cm
Depth
11 cm
Height
18,41 cm
Weight
1,1 kg
Compatibility
Description
P/N: UACC-CM-RJ45-MG
Specs
P/N: UACC-CM-RJ45-MG
Miscellaneous
Color Category
White
Description
The Ubiquiti Dream Router 7 is designed to deliver robust performance for home or office networking needs. With support for up to 20,000 concurrent clients, it ensures reliable connectivity to support extensive device usage. Featuring multiple data link protocols including IEEE 802.11ax (Wi-Fi 6E) and IEEE 802.11be (Wi-Fi 7), it supports advanced wireless communication capabilities, allowing for seamless data transfer with a maximum data rate of 10 Gbps. Equipped with an intuitive status LCD and a quad-core CPU, the Ubiquiti Dream Router 7 combines functionality with efficiency. The integrated features include advanced network security protocols like VPN support and an application-aware layer 7 firewall, making it suitable for both personal and professional applications. Its operating conditions accommodate a range of temperatures and humidity, while the built-in power supply provides reliable operation.
- Robust performance
Designed to handle up to 20,000 concurrent clients, the Ubiquiti Dream Router 7 delivers consistent and reliable performance for multiple devices in high-demand environments. - Versatile connectivity
With multiple Ethernet interfaces, including 10Gb and 2.5GBase-T, this router supports both wired and wireless connections, ensuring versatility for different networking setups. - Enhanced security
Equipped with robust encryption algorithms and authentication methods, this router ensures secure network communications, protecting sensitive data from unauthorized access. - User-friendly management
Features such as Bluetooth management and cloud support simplify network management, making it easy to monitor and control network settings remotely. - Environmentally resistant
Designed to operate in a wide range of temperatures from -10°C to 40°C and humidity levels between 5% to 95%, ensuring optimal performance in various environmental conditions.
