NZXT RF-U28HF-B1 computer cooling system Computer case Fan Black 1 pc(s)

Article-No.:
245532
Manufacturer-No.:
RF-U28HF-B1
EAN/GTIN:
5056547204413
WEEE Nummer
DE56669739
Technical specifications

General

Product Type
Single frame fan unit
Packaged Quantity
1

Heatsink & Fan

Fans Qty
2
Fan Diameter
140 mm
Fan Height
26 mm
Rotation Speed
500-2000 rpm
Air Flow
98.61 cfm
Power Connector
8-pin fan connector
Features
Zero RPM fan mode, Airflow optimised fan, 8 addressable RGB LEDs, RGB LED, PWM control, Anti-vibration rubber pads
Fan Bearing
Fluid dynamic bearing
Air Pressure
3.2 mm
Noise Level
34.5 dBA
Power Consumption
7.08 W

Dimensions & Weight

Width
14 cm
Depth
2,6 cm
Height
28 cm

Miscellaneous

Product Material
Plastic, PCB, Rubber
Color
Matte white
Color Category
White
RGB
Description

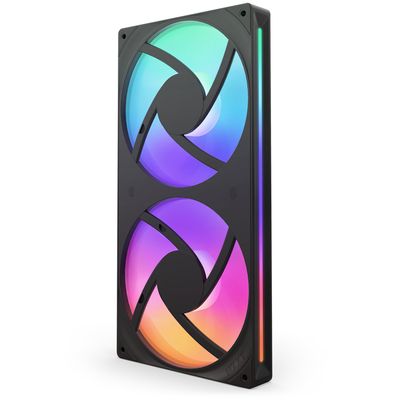

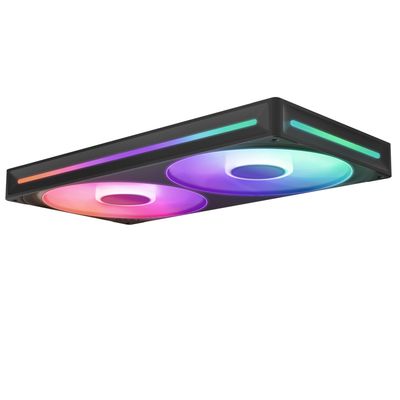

NZXT F Series RGB Core single-frame fans seamlessly integrate multiple fans for effortless installation while offering superior cooling, whisper-quiet performance, and striking RGB visuals.

All-in-one Design
Single-frame unit with integrated fans streamlines installation, setup, and lighting control.

Versatile Connectivity
Simply connect a single cable to an NZXT controller (sold separately) for lighting and speed control via NZXT CAM software. Or, connect to any motherboard's 5V ARGB header using the included splitter cable.

Optimal Performance

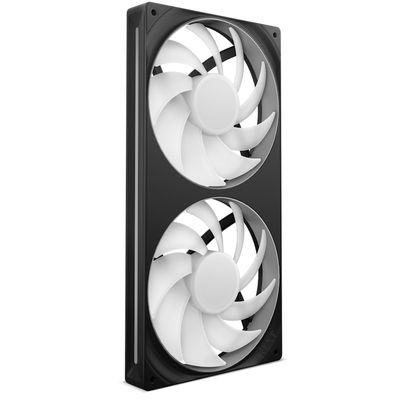

Blade design boosts static pressure to push air through tight spaces with superior airflow.

Fluid Dynamic Bearings
Ensures low noise, high rotational stability, and a 60,000-hour fan lifespan.

Radiant RGB Lighting

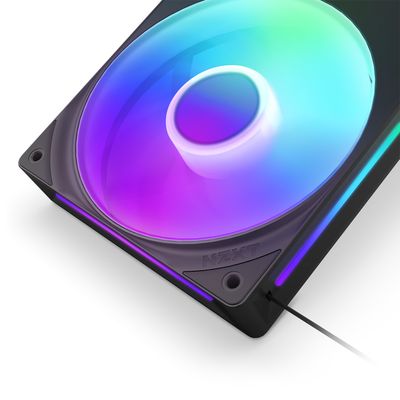

8 aRGB LEDs per fan hub shine through semi-translucent blades and frame side windows.

PWM Control
Dynamically adjusts fan speeds based on PC temperatures for optimal efficiency*.
*Requires PWM connection to motherboard or controller (sold separately)

Silent Operation
Anti-vibration rubber corners dampen noise and Zero RPM Mode* shuts fans off during light loads.

NZXT CAM LogoNZXT CAM Logo
Do More with CAM
Control fan speeds, personalize lighting effects, and sync with other NZXT products*.
  • Enhanced cooling efficiency
    The NZXT F280 RGB Core is designed with airflow optimized fans, capable of delivering an impressive airflow of 98.61 cfm. This ensures your system remains cool under heavy loads, enhancing overall performance and longevity.
  • Quiet operation
    Equipped with fluid dynamic bearings and anti-vibration rubber pads, the F280 RGB Core operates at a noise level of just 34.5 dBA. Enjoy a quieter computing experience without compromising cooling efficiency.
  • Customizable RGB lighting
    With 8 addressable RGB LEDs, the NZXT F280 RGB Core allows for a personalized lighting setup. Illuminate your system according to your aesthetic preferences, adding a vibrant touch to your build.
  • Precise control
    The inclusion of PWM control and a Zero RPM fan mode offers precise management of fan speeds. Adjust cooling intensity from 500 to 2000 rpm based on system requirements, ensuring optimal performance and noise levels.
  • Durable design
    A construction that combines PCB, plastic, and rubber, along with a MTBF of 60,000 hours, underscores the NZXT F280 RGB Core's durability. Depend on this cooling solution to maintain system stability over extended periods.
