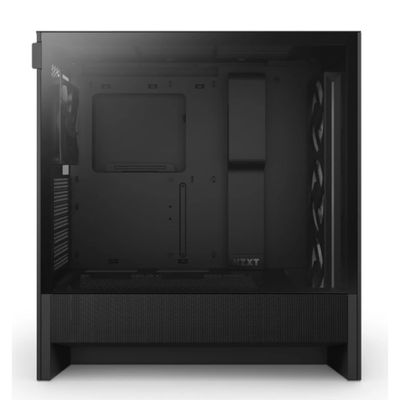

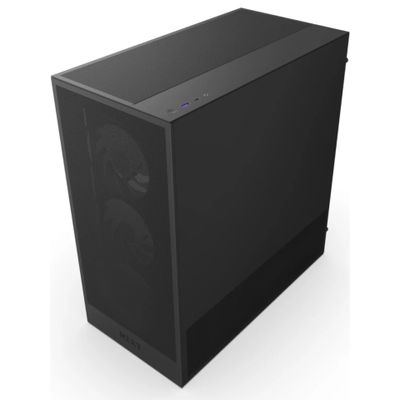

NZXT pc case H5 Flow RGB - Midi - Schwarz

NZXT pc case H5 Flow RGB - Midi - Schwarz_thumb_3

NZXT pc case H5 Flow RGB - Midi - Schwarz_thumb_4

NZXT pc case H5 Flow RGB - Midi - Schwarz_1

NZXT pc case H5 Flow RGB - Midi - Schwarz_2

NZXT pc case H5 Flow RGB - Midi - Schwarz_3

NZXT pc case H5 Flow RGB - Midi - Schwarz_4

Article-No.:

255763

Manufacturer-No.:

CC-H52FB-R1

EAN/GTIN:

5056547205878

WEEE Nummer

DE56669739

Compare

Print view

Technical specifications

General

Packaged Quantity

Chassis

Form Factor

Tower

Internal Bays Qty

Video Card Max Length

410 mm

CPU Cooler Max Height

170 mm

Power Supply Max Length

200 mm

Windowed Side Panel

Yes

Cooling System

Front: 120 mm fan x 3 / 1700 rpm / 50.1 cfm / 23.3 dBA / 2 x 140 mm fan or 120/140/240/280/360mm radiator supported, Rear: 120 mm fan x 1 / 1350 rpm / 60.2 cfm / 24.1 dBA, Top: 120/140 mm fan mount x 2 / 2 x 120/140 mm fan or 120/140/240/280mm radiator supported (140/280mm radiator + fans, only with 55 mm of combined thickness), Bottom: 120 mm fan mount x 2

Mainboard

Form Factor

Extended ATX

Supported Motherboards

ATX, microATX, Mini-ITX, Extended ATX

Expansion Bays

2 (total) / 2 (free) x internal - 2.5", 1 (total) / 1 (free) x internal - 3.5"

Expansion Slots

7 x horizontal

Power Device

Type

No power supply

Max Supported Qty

Dimensions & Weight

Width

22,5 cm

Depth

43 cm

Height

46,5 cm

Weight

7,63 kg

Service & Support

Type

2-year warranty

Miscellaneous

Product Material

Tempered glass, SGCC

Color

Black

Color Category

Black

Description

The NZXT H5 Flow RGB mid-tower chassis combines aesthetic appeal with functionality, featuring a meshed front and top panel that enhances airflow while showcasing high-performance components. Designed with tool-less side panels and covers, this case simplifies upgrades and maintenance, making it an ideal choice for both novice and experienced builders. The tempered-glass window side panel allows users to display their build, while an efficient cable management system ensures a clean and organized interior, providing ease of installation and airflow optimization.
With support for multiple internal bays, the NZXT H5 Flow RGB facilitates extensive storage options, accommodating different form factors, including 2.5-inch and 3.5-inch drives. The case is engineered to support large graphics cards and CPU coolers, ensuring ample space for high-performance components while maintaining cooling efficiency. The inclusion of multiple fan locations allows for customized cooling setups, essential for maximizing system performance and longevity.

Spacious internal layout
The NZXT H5 Flow RGB mid-tower offers a spacious interior, supporting large graphics cards up to 410 mm and CPU coolers up to 170 mm, allowing for extensive hardware choices and optimal performance.
Efficient cooling options
The case allows for multiple cooling configurations, supporting up to three 120/140 mm fans or various radiator sizes for effective thermal management, ensuring your components operate at peak efficiency.
Flexible storage capabilities
With capacity for up to three internal storage drives, including both 2.5-inch and 3.5-inch options, the case provides flexible storage solutions tailored to user needs.

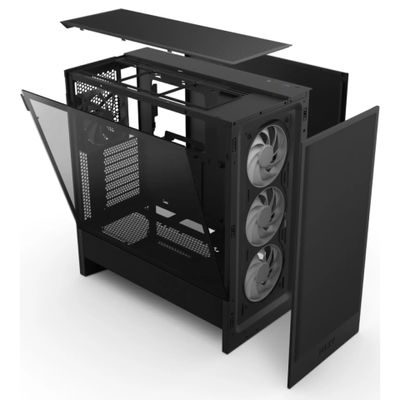

User-friendly features
Tool-less side panels and covers make installation and upgrades straightforward, while the USB 3.2 and USB-C connectors on the front panel enhance connectivity and accessibility.
Sleek design
The mixed-material construction, featuring tempered-glass and SGCC, offers durability and a modern aesthetic that complements any setup and showcases internal components.

Product content

NZXT H5 Flow RGB
Cable ties, Stand-Off mounting tool, 12 x M3x5 mm screw, 4 x 6-32x6 mm screw, F360 RGB Core fan (case version), F120Q fan (case version), 17 x 6-32x5 mm screw, 6-32x6.5 mm standoff screw, 8 x 6-32x30 mm screw, 28 x CB5x10 mm screw
