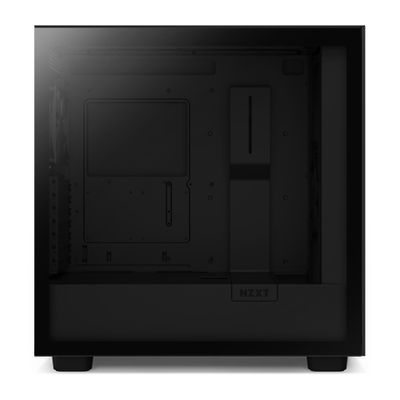

NZXT PC case H series H7 Flow - Midi

Article-No.:
236278
Manufacturer-No.:
CM-H72FB-01
EAN/GTIN:
5056547205502
WEEE Nummer
DE83654239
Technical specifications

General

Packaged Quantity
1

Chassis

Form Factor
Tower
Internal Bays Qty
4
Video Card Max Length
410 mm
CPU Cooler Max Height
185 mm
Power Supply Max Length
200 mm
Windowed Side Panel
Yes

Cooling System

Cooling System
Top: fan mount / 2 x 140 mm or 3 x 120 mm fan supported or 120/140/240/280/360 radiator supported, Rear: fan mount / 1 x 120/140mm fan or 120/140mm radiator supported, Bottom: fan mount / 3 x 120 mm fan or 120/240/360 mm radiator supported, Front: 120 mm fan x 3 / 1350 rpm / 60.2 cfm / 24.1 dBA / 3 x 140 mm fan supported or 120/140/240/280/360/420 mm radiator supported

Mainboard

Form Factor
Extended ATX
Supported Motherboards
ATX, microATX, Mini-ITX, Extended ATX

Expansion Bays

Expansion Bays
2 (total) / 2 (free) x internal - 2.5" / 3.5" shared, 2 (total) / 2 (free) x internal - 3.5"

Expansion Slots

Expansion Slots
7 x horizontal

Power Device

Type
No power supply
Max Supported Qty
1

Dimensions & Weight

Width
24,4 cm
Depth
46,8 cm
Height
54,4 cm
Weight
11,13 kg

Miscellaneous

Product Material
Tempered glass, Steel, SGCC
Color
Matte black
Color Category
Black
Description
The H7 Flow revolutionizes GPU cooling in a classic mid-tower form factor. Its vertical PSU layout allows space for 3 x 120mm bottom fans, offering efficient cooling without expanding the case footprint.

Dedicated GPU Cooling
Supports three bottom-mounted 120mm fans for direct GPU cooling in a narrow mid-tower footprint.
Angled H7 Flow showing front 3 120mm fansAngled H7 Flow showing front 3 120mm fans

Out-of-the-Box Performance
Comes equipped with 3 x 120mm front-mounted fans for exceptional out-of-the-box cooling performance.

Optimized for Airflow
High-performance mesh panels maximize airflow for both intake and exhaust, as well as filter dust.
H7 Flow showing radiator size supportH7 Flow showing radiator size support

Large Radiator Support
Supports up to a 420mm radiator in front and 360mm radiator up top for max cooling potential.
Open Back of H7 Flow showing cable managementOpen Back of H7 Flow showing cable management

Easily Manage Cables
Intuitive cable management system with wide channels, built-in hooks, and included straps for easy routing.

10-Fan Capacity
Capacity for up to 10 fans in total: 3 up top, 3 in front, 3 on bottom, and 1 in the rear.

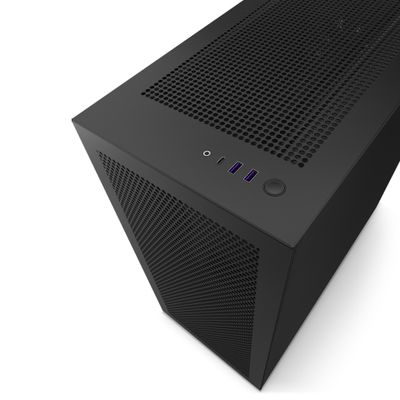

Top I/O Ports
Conveniently access 2 x USB-A and 1 x USB-C ports located on the top panel.

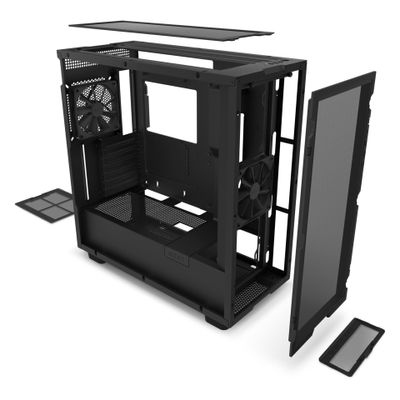

Exploded view of H7 Flow panelsExploded view of H7 Flow panels

Tool-less Panel Access
Tool-less access to the front, top, and side panels makes building and upgrading a breeze.
Product content

Product content

  • NZXT H series H7 Flow
  • Cable ties, screws, Stand-Off removal tool
