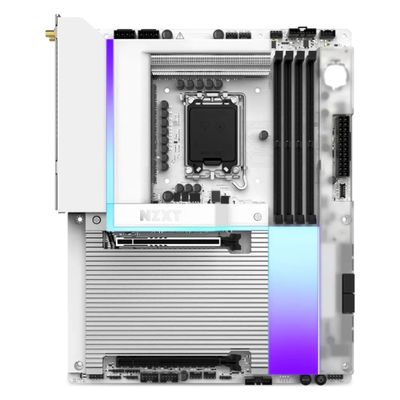

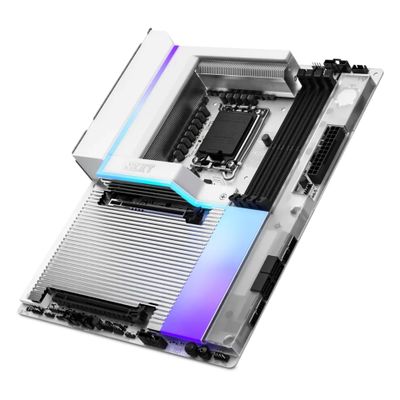

NZXT N9 Z890 - motherboard - ATX - LGA1851 Socket - Z890

Article-No.:
257247
Manufacturer-No.:
N9-Z89XT-W1
EAN/GTIN:
5056547206189
Technical specifications

General

Packaged Quantity
1

Processor

Installed Qty
0
Max Supported Qty
1

Mainboard

Form Factor
ATX
Chipset Type
Intel Z890
Supported RAM Technology
DDR5 SDRAM
Supported RAM Speed
4000 MHz (O.C.)
Processor Socket
LGA1851 Socket
Power Connectors
24-pin main power connector, 2 x 8-pin ATX12V connectors
RAM Slots
4 DIMM slots

Interfaces

Internal Interfaces
1 x USB-C 3.2 Gen 2x2 - header, 1 x audio - header, 4 x USB 2.0 - header, 4 x USB 3.2 Gen 1 - header

RAM

Features
Intel Extreme Memory Profiles (XMP) 3.0, Dual channel memory architecture

Video Output

Type
Graphics adapter (CPU required)

Audio Output

Type
Sound card
Compliant Standards
High Definition Audio
Audio Codec
Realtek ALC1220
Audio
High Definition Audio (8-channel)

Networking

Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.3, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, 2.5 Gigabit Ethernet
Network
2.5 Gigabit Ethernet, Bluetooth 5.3, 802.11a/b/g/n/ac/ax (Wi-Fi 6E)
Bluetooth

Expansion Slots

Expansion Slots
1 x CPU, 1 x M.2 socket (2230 M.2 Key E slot), 1 x PCIe 5.0 x16, 2 x PCIe 4.0 x16 (x4 mode), 4 x M.2 socket (2280 M.2 Key M slot), 4 x DIMM 288-pin

Interfaces

Storage Interfaces
PCIe 4.0 -connectors: 2 x M.2, PCIe 5.0 -connectors: 1 x M.2, SATA-600 -connectors: 4 x 7pin Serial ATA, SATA-600 / PCIe 4.0 -connectors: 1 x M.2
Storage
Serial ATA-600
USB / FireWire
USB 3.2 Gen 1, USB 3.2 Gen 2, USB4, USB-C 3.2 Gen 2x2
Storage Ports
4 x SATA-600 (RAID), 4 x M.2

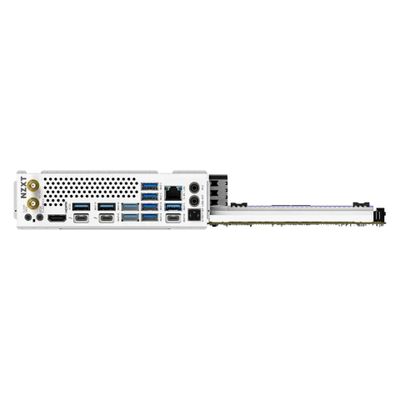

USB / FireWire Ports Configuration (Active)
2 x USB4 + 1 x USB-C 3.2 Gen 2x2 + 4 x USB 3.2 Gen 2 + 3 x USB 3.2 Gen 1
USB / FireWire Ports Configuration (Headers)
1 x USB-C 3.2 Gen 2x2 + 4 x USB 3.2 Gen 1 + 4 x USB 2.0

Service & Support

Type
3-year warranty
Description
The NZXT N9 Z890 motherboard is engineered for enthusiasts who demand flexibility and performance. Featuring the Intel Z890 chipset and support for Intel Core Ultra processors, this ATX motherboard allows for configurability with its 4 DIMM slots that support DDR5 SDRAM and speeds up to 4000 MHz when overclocked. It incorporates a 16+1+2 Phase Power Design with high-efficiency power delivery, ensuring stable performance under load. Connectivity is a highlight, offering options including 2.5 Gigabit Ethernet, Bluetooth 5.3, and Wi-Fi 6E for fast and reliable networking. The motherboard is equipped with USB 3.2 Gen 1 and Gen 2 ports, Thunderbolt 4, and multiple storage interfaces, allowing for rapid data transfer and extensive peripheral support. Its robust build features include high-quality components such as a 6 Layer PCB and M.2 heatsink, designed to promote longevity for demanding applications.
  • Efficient power delivery
    The motherboard features a 16+1+2 Phase Power Design and Dr.MOS MOSFETs, ensuring reliable power distribution for optimal performance during intense workloads.
  • Extensive connectivity options
    Includes various ports such as USB 3.2 Gen 1, USB 3.2 Gen 2, Thunderbolt 4, and LAN ports to accommodate a range of peripherals and high-speed data transfer.
  • Gaming capabilities
    With support for high-performance capacities like DDR5 SDRAM and an integrated design for future express lanes, this motherboard enhances the gaming experience.
  • Audio quality
    Equipped with a Realtek ALC1220 audio codec and high definition audio support, the board provides immersive sound for gaming and multimedia applications.
  • Thermal management
    The motherboard includes M.2 heatsinks and a well-designed cooling system to prevent thermal throttling and maintain performance.
Product content

Product content

  • NZXT N9 Z890
  • 4 x Serial ATA cable
  • 4 x M.2 screws, 2 x Wi-Fi aerial, 2 x NZXT 8-pin splitter
