Product content

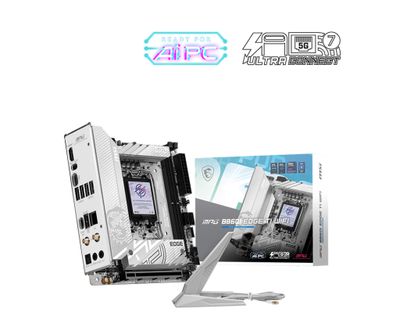

Product content
- MSI MPG B860I EDGE TI WIFI
- Serial ATA cable
- 1 x M.2 screw, EZ front panel cable, cable sticker, EZ Wi-Fi antenna, ARGB extension cable
- Software
/asset/c/8/8/a/c88a20ee7cf316e9589de85d66a1e1af65c6c645_e1d4f9f8462ec9d3a01dcb334f4045ef7429fc6f.jpg)
/asset/a/3/8/d/a38d732d1fe9d902d489c2e73724fb0114845094_62bbe3be3b01a7ae9f8131506309e4478a1d6408.jpg)
/asset/9/6/9/d/969d8429053587971a26bf555ad1f123f08ed2ec_373aaf3794228c4fc3c857716f7cb61a207b030c.jpg)
/asset/1/a/8/4/1a8470eacbd8a3a1769b4f3b5b79c37af6a5f181_94e3bdeb024b80d9cb744208db7c3ae22dde9182.jpg)
/asset/8/b/f/e/8bfe07d3c759000ee751174f02e115e15977817c_dba4036d29b65db3256555e89566e3ccc8962590.jpg)
/asset/c/8/8/a/c88a20ee7cf316e9589de85d66a1e1af65c6c645_e1d4f9f8462ec9d3a01dcb334f4045ef7429fc6f.jpg)
/asset/a/3/8/d/a38d732d1fe9d902d489c2e73724fb0114845094_62bbe3be3b01a7ae9f8131506309e4478a1d6408.jpg)
/asset/9/6/9/d/969d8429053587971a26bf555ad1f123f08ed2ec_373aaf3794228c4fc3c857716f7cb61a207b030c.jpg)
/asset/1/a/8/4/1a8470eacbd8a3a1769b4f3b5b79c37af6a5f181_94e3bdeb024b80d9cb744208db7c3ae22dde9182.jpg)
/asset/8/b/f/e/8bfe07d3c759000ee751174f02e115e15977817c_dba4036d29b65db3256555e89566e3ccc8962590.jpg)
Please login to see the price and order.
Article-No.:
274419
Manufacturer-No.:
7E43-001R
EAN/GTIN:
4711377350174
WEEE Nummer
DE83654239
Technical specifications
Description
Technical specifications
General
Packaged Quantity
1
Processor
Installed Qty
0
Max Supported Qty
1
Mainboard
Form Factor
Mini ITX
Chipset Type
Intel B860
Supported RAM Technology
DDR5 SDRAM
Supported RAM Integrity Check
Non-ECC
Supported RAM Speed
7200 MT/s (O.C.), 4800 MT/s, 6400 MT/s (O.C.), 6400 MT/s, 8600 MT/s (O.C.)
Processor Socket
LGA1851 Socket
Power Connectors
24-pin main power connector, 8-pin ATX12V connector
Supported RAM (Registered or Buffered)
Unbuffered
RAM Slots
2 DIMM slots
Interfaces
Internal Interfaces
1 x USB-C 3.2 Gen 2 - header, 1 x audio - header, 2 x USB 2.0 - header, 2 x USB 3.2 Gen 1 - header, 1 x SPI - header
RAM
Features
Intel Extreme Memory Profiles (XMP) 3.0, Dual channel memory architecture
Max Supported Size
128 GB
Video Output
Type
Graphics adapter (CPU required)
Audio Output
Type
Sound card
Compliant Standards
High Definition Audio
Audio Codec
Realtek ALC897
Audio
High Definition Audio (8-channel)
Networking
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.4, IEEE 802.11be (Wi-Fi 7), IEEE 802.11n, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, 5 Gigabit Ethernet, 2.5 Gigabit Ethernet
Network Controller
Intel Killer BE1750x / Intel Killer E5000B
Network
802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4, 5 Gigabit Ethernet
Expansion Slots
Expansion Slots
1 x CPU, 2 x M.2 socket (2280 M.2 Key M slot), 1 x PCIe 5.0 x16, 2 x DIMM 288-pin, 1 x M.2 socket (Key E)
Interfaces
Storage Interfaces
PCIe 5.0 -connectors: 1 x M.2, SATA-600 -connectors: 2 x 7pin Serial ATA - RAID 0 / RAID 1, SATA-600 / PCIe 4.0 -connectors: 1 x M.2
Storage
Serial ATA-600 (RAID), M.2 socket
USB / FireWire
USB 3.2 Gen 1, USB 3.2 Gen 2, USB4, USB-C 3.2 Gen2
Storage Ports
2 x SATA-600 (RAID), 2 x M.2
USB / FireWire Ports Configuration (Active)
1 x USB4 + 1 x USB-C 3.2 Gen 2 + 1 x USB 3.2 Gen 2 + 4 x USB 3.2 Gen 1
USB / FireWire Ports Configuration (Headers)
1 x USB-C 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 2 x USB 2.0
Software
Software Included
MSI Center, Norton 360 Deluxe (60 days trial), AIDA64 Extreme - MSI Edition
Dimensions & Weight
Width
17 cm
Depth
17 cm
Description

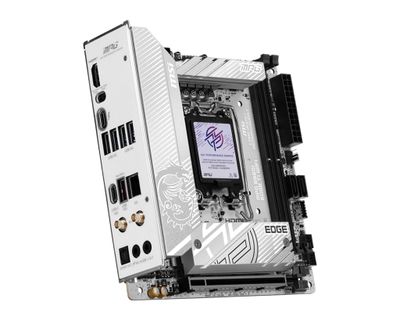

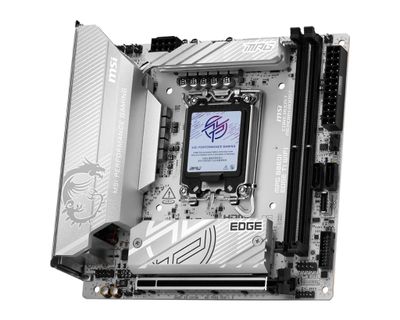

MPG B860I EDGE TI WIFI is a mini-ITX B860 motherboard with incredible power and expansion. It features robust power design, Killer Wi-Fi 7 and 5G LAN, Thunderbolt™ 4, PCIe 5.0 connecitvity. It is definetly the best B860 mini-ITX motherboard for Intel Core Ultra processors.
- Robust connectivity options

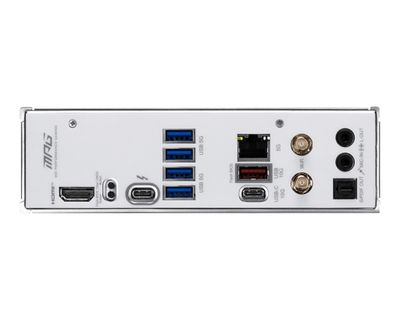

The motherboard features various ports including 2 x USB 3.2 Gen 1, 2 x USB 3.2 Gen 2, 1 x USB-C 3.2 Gen 2, and USB4, along with audio line-out, HDMI output, and a microphone input, allowing versatile connectivity with multiple devices. - High-quality audio experience
Outfitted with a high definition audio codec, the Realtek ALC897, this motherboard delivers rich audio output for an immersive gaming and media experience. - Advanced RAM support
This motherboard supports dual-channel DDR5 SDRAM with speeds ranging from 4800 MT/s to 8600 MT/s (O.C.), facilitating memory performance for demanding applications. - Enhanced system protection
Features like overcurrent protection, overvoltage protection, and ESD protection help to ensure longevity and stability of the system, reducing the risk of hardware damage. - Efficient cooling solutions
The MSI Frozr AI Cooling technology optimizes the cooling performance of the motherboard, maintaining optimal temperatures during intensive workloads.
