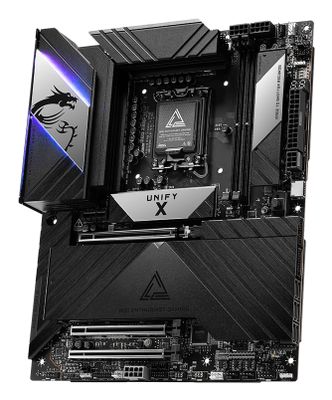

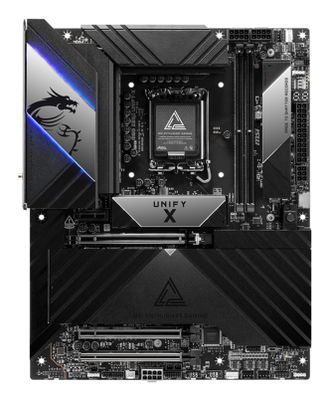

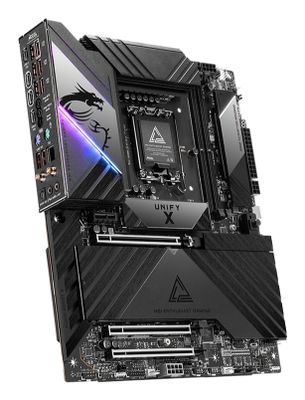

MSI MEG Z890 UNIFY-X motherboard Intel Z890 LGA 1851 (Socket V1) ATX

MSI MEG Z890 UNIFY-X motherboard Intel Z890 LGA 1851 (Socket V1) ATX_thumb_3

MSI MEG Z890 UNIFY-X motherboard Intel Z890 LGA 1851 (Socket V1) ATX_thumb_4

MSI MEG Z890 UNIFY-X motherboard Intel Z890 LGA 1851 (Socket V1) ATX_thumb_5

MSI MEG Z890 UNIFY-X motherboard Intel Z890 LGA 1851 (Socket V1) ATX_1

MSI MEG Z890 UNIFY-X motherboard Intel Z890 LGA 1851 (Socket V1) ATX_2

MSI MEG Z890 UNIFY-X motherboard Intel Z890 LGA 1851 (Socket V1) ATX_3

MSI MEG Z890 UNIFY-X motherboard Intel Z890 LGA 1851 (Socket V1) ATX_4

MSI MEG Z890 UNIFY-X motherboard Intel Z890 LGA 1851 (Socket V1) ATX_5

Article-No.:

265088

Manufacturer-No.:

7E20-001R

EAN/GTIN:

4711377266970

WEEE Nummer

DE83654239

Compare

Print view

Technical specifications

General

Packaged Quantity

Processor

Installed Qty

Max Supported Qty

Mainboard

Form Factor

ATX

Chipset Type

Intel Z890

Supported RAM Technology

DDR5 SDRAM

Supported RAM Integrity Check

Non-ECC

Supported RAM Speed

4800 MHz (O.C.), 3600 MHz, 2400 MHz, 3200 MHz (O.C.)

Processor Socket

LGA1851 Socket

I/O Controller

Nuvoton NCT6687D-M

Power Connectors

8-pin PCI Express power connector, 24-pin main power connector, 6-pin PD power connector, 2 x 8-pin ATX12V connectors

Supported RAM (Registered or Buffered)

Unbuffered

RAM Slots

2 DIMM slots

Interfaces

Internal Interfaces

1 x USB-C 3.2 Gen 2x2 - header, 1 x Thunderbolt 5 - header, 1 x audio - header, 4 x USB 2.0 - header, 4 x USB 3.2 Gen 1 - header, 1 x SPI - header

RAM

Features

Intel Extreme Memory Profiles (XMP) 3.0, Dual channel memory architecture

Max Supported Size

128 GB

Video Output

Type

Graphics adapter (CPU required)

Audio Output

Type

Sound card

Compliant Standards

High Definition Audio

Audio Codec

Realtek ALC4080

Audio

High Definition Audio (8-channel)

Networking

Data Link Protocol

Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6), Bluetooth 5.4, IEEE 802.11be (Wi-Fi 7), IEEE 802.11n, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, 5 Gigabit Ethernet

Network Controller

Intel Killer BE1750x / Intel Killer E5000B

Network

802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4, 5 Gigabit Ethernet

Expansion Slots

1 x CPU, 2 x PCIe 5.0 x16, 1 x M.2 socket (2260/2280/22110 M.2 Key M slot), 5 x M.2 socket (2260/2280), 2 x DIMM 288-pin, 1 x PCIe 4.0 x16, 1 x PCIe 4.0 x1

Interfaces

Storage Interfaces

PCIe 4.0 -connectors: 4 x M.2, PCIe 5.0 -connectors: 1 x M.2, SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5, SATA-600 / PCIe 4.0 -connectors: 1 x M.2

Storage

Serial ATA-600 (RAID), M.2 socket

USB / FireWire

USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen2, USB-C 3.2 Gen 2x2

Storage Ports

6 x SATA-600 (RAID), 6 x M.2

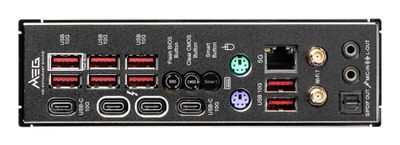

USB / FireWire Ports Configuration (Active)

2 x USB4 + 2 x USB-C 3.2 Gen 2 + 8 USB 3.2 Gen 2

USB / FireWire Ports Configuration (Headers)

1 x USB-C 3.2 Gen 2x2 + 4 x USB 3.2 Gen 1 + 4 x USB 2.0

Software

Software Included

MSI Center, Adobe Creative Cloud (free trial), AIDA64 Extreme - MSI Edition, MSI App Player, Norton 360, Intel Killer Networking, Intel Extreme Tuning Utility, Drivers & utilities, MSI CPU-Z

Dimensions & Weight

Width

30,5 cm

Depth

24,4 cm

Description

The V power makes the MEG Z890 UNIFY-X motherboard defeating all challenges among Z890 motherboards. Employing AI server-grade TLVR inductor to enhance overall efficiency and provide the extreme performance. It also equips all the latest technology such as DDR5, PCIe 5.0, Killer Wi-fi 7 and 5G LAN, Thunderbolt 4, and all the EZ DIY features and Supplemental PCIe Power, ready for all challenges of gaming and AI.

The MSI ENTHUSIAST GAMING (MEG) series sets the new standard for gaming excellence, offering raw power and precision engineering with sophisticated design philosophy. Each product in the series is crafted to meet the highest standards of gaming performance and elegance, making it the ultimate gaming experience that every gamer dreams of.

With mythological power, divine imagery, and ancient lore woven into every aspect of the product line, the MEG series delivers an immersive and captivating gaming experience that is unmatched in sophistication and performance. It transcends being just a collection of products; it represents the pinnacle of gaming luxury, revolutionizing the gaming world and becoming the top choice for discerning gamers worldwide.

MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.

Tuning Controller is an exclusive accessory designed for overclocking enthusiasts. It allows users to fine-tune overclocking parameters easily with just one click. Featuring multiple shortcut buttons, the Tuning Controller simplifies the complex overclocking process, making it more accessible for power users aiming to optimize system performance with precision.

ULTRA PERFORMANCE

DIRECT 20+2+1+1 POWER DESIGN
Unleash and sustain the maximum performance with a flagship VRM design built with a total of direct 20+2+1+1 digital power phases. Combining dual power connectors and 110A Smart Power Stage, MEG Z890 UNIFY-X is ready for the challenge of high-end processors.

FROZR DESIGN

Robust power design
The MEG Z890 UNIFY-X features a 20+2+1+1 phase power design, ensuring stable power delivery for enhanced performance under load.
Advanced cooling solutions
Equipped with Frozr AI Cooling and an enlarged chipset heatsink, this motherboard optimizes thermal performance, allowing sustained operation even during intense tasks.
Versatile expansion options
With five expansion slots including PCIe 4.0 support, users have flexibility for future hardware upgrades, whether for graphics cards or other add-ons.
Improved memory management
MSI Memory Boost technology enhances memory performance and stability, especially for high-speed DDR5 modules.
Enhanced user convenience
Featuring a pre-mounted I/O shield and EZ M.2 Clip II, installation and setup become hassle-free for builders of any experience level.

Product content

MSI MEG Z890 UNIFY-X
4 x Serial ATA cable
2 thermistor cables, m.2 screw / standoff sets, Tuning controller, EZ front panel cable, JRGB extension cable (1 to 2), JARGB extension cable, 1 to 3 EZ Conn-Cable, EZ Wi-Fi antenna, EZ M.2 clip II remover, JRGB extension cable (1 to 3), 4 x EZ M.2 clip II
