Product content
Product content

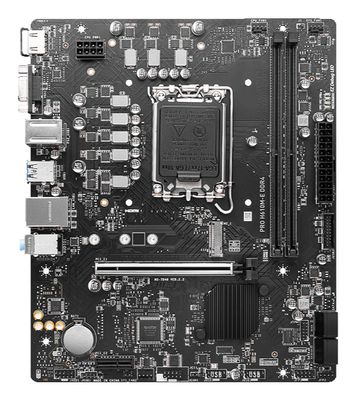

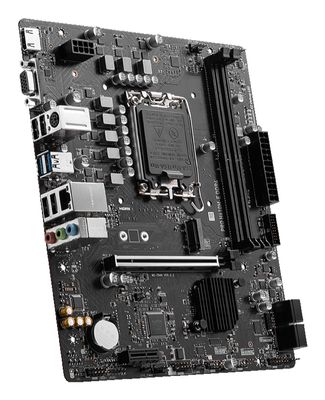

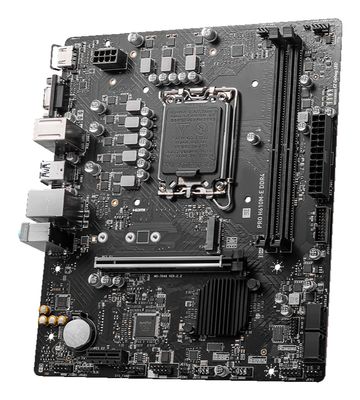

- MSI PRO H610M-E DDR4
- 2 x Serial ATA cable
- IO shield, M.2 clip
- Software
/asset/3/a/4/1/3a41cf2d892a430058764941351d4a0b46cbb2b4_f0f1bc38533689aa31d309c8b4e1ad5bc56154fc.jpg)
/asset/3/0/0/3/3003f09a34adbc06c99103c22cb7964b9e61a5f4_b95ad0d9b65221b28d873b72c871debb73d3b339.jpg)
/asset/9/3/5/3/935375b6049c5198d0ff517f793848785c806f62_91e66eac8daeccd2a091984d843fe2aa1103df83.jpg)
/asset/1/a/8/c/1a8cd62360c44f8f8d1b06a617a9b92d78ee9599_f83dfee405ffbe446da080f16aa17b84a0cb8d26.jpg)
/asset/7/1/2/4/71247600ce08f491eb2f368d433c5c2fa874be87_81fb3e106c65a853bf38eca66555d2a437095b94.jpg)
/asset/3/a/4/1/3a41cf2d892a430058764941351d4a0b46cbb2b4_f0f1bc38533689aa31d309c8b4e1ad5bc56154fc.jpg)
/asset/3/0/0/3/3003f09a34adbc06c99103c22cb7964b9e61a5f4_b95ad0d9b65221b28d873b72c871debb73d3b339.jpg)
/asset/9/3/5/3/935375b6049c5198d0ff517f793848785c806f62_91e66eac8daeccd2a091984d843fe2aa1103df83.jpg)
/asset/1/a/8/c/1a8cd62360c44f8f8d1b06a617a9b92d78ee9599_f83dfee405ffbe446da080f16aa17b84a0cb8d26.jpg)
/asset/7/1/2/4/71247600ce08f491eb2f368d433c5c2fa874be87_81fb3e106c65a853bf38eca66555d2a437095b94.jpg)
Please login to see the price and order.
Article-No.:
215259
Manufacturer-No.:
7D48-001R
EAN/GTIN:
4711377002660
WEEE Nummer
DE83654239
Technical specifications
Description
Technical specifications
General
Packaged Quantity
1
Processor
Installed Qty
0
Max Supported Qty
1
Mainboard
Form Factor
Micro ATX
Chipset Type
Intel H610
Supported RAM Technology
DDR4 SDRAM
Supported RAM Integrity Check
Non-ECC
Supported RAM Speed
3200 MHz, 2133 MHz, 2666 MHz
Processor Socket
LGA1700 Socket
Power Connectors
24-pin main power connector, 8-pin ATX12V connector
Supported RAM (Registered or Buffered)
Unbuffered
RAM Slots
2 DIMM slots
Interfaces
Internal Interfaces
1 x audio - header, 1 x serial - header, 4 x USB 2.0 - header, 2 x USB 3.2 Gen 1 - header, 1 x SPI - header
RAM
Features
Dual channel memory architecture
Max Supported Size
64 GB
Video Output
Type
Graphics adapter (CPU required)
Audio Output
Type
Sound card
Compliant Standards
High Definition Audio
Audio Codec
Realtek ALC897
Audio
High Definition Audio (8-channel)
Networking
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet
Network Controller
Realtek RTL8111H
Network
Gigabit Ethernet
Expansion Slots
Expansion Slots
1 x CPU, 1 x M.2 socket (2242/2260/2280 M.2 Key M slot), 2 x DIMM 288-pin, 1 x PCIe 3.0 x1, 1 x PCIe 4.0 x16
Interfaces
Storage Interfaces
SATA-600 -connectors: 4 x 7pin Serial ATA, PCIe 3.0 -connectors: 1 x M.2
Storage
Serial ATA-600, M.2 socket
RAID Features
Intel Smart Response Technology
USB / FireWire
USB 3.2 Gen 1
Storage Ports
4 x SATA-600, 1 x M.2
USB / FireWire Ports Configuration (Active)
2 x USB 3.2 Gen 1 + 4 x USB 2.0
USB / FireWire Ports Configuration (Headers)
2 x USB 3.2 Gen 1 + 4 x USB 2.0
Software
Software Included
MSI Center
Dimensions & Weight
Width
23,6 cm
Depth
20 cm
Description
PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.
FULLY CONTROLLABLE IN BIOS AND SOFTWARE
MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.
FROZR AI COOLING
Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.
LOW LATENCY GAMING LAN POWERED BY INTEL®
Stay connected with Intel® LAN, optimized for stable internet throughput ideal for championship level online plays.
LIGHTNING GEN 4 PCI-E
MSI lightning Gen 4 PCI-E is the latest and the fastest PCI-E data transfer solution with 64GB/s of transfer bandwidth that has doubled compared to its previous generation. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications. Optimized by steel armor design, your motherboards can support the weight of heavy graphics cards.
EXTREME STABILITY & COMPATIBILITY TESTING
MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what. Our memory partners include brands like Corsair, Crucial, Kingston, G.Skill and many more to optimize memory modules and configurations.
CORE BOOST
Core Boost technology combines MSI's premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU overclocking.
FULLY CONTROLLABLE IN BIOS AND SOFTWARE
MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.
FROZR AI COOLING
Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.
LOW LATENCY GAMING LAN POWERED BY INTEL®
Stay connected with Intel® LAN, optimized for stable internet throughput ideal for championship level online plays.
LIGHTNING GEN 4 PCI-E
MSI lightning Gen 4 PCI-E is the latest and the fastest PCI-E data transfer solution with 64GB/s of transfer bandwidth that has doubled compared to its previous generation. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications. Optimized by steel armor design, your motherboards can support the weight of heavy graphics cards.
EXTREME STABILITY & COMPATIBILITY TESTING
MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what. Our memory partners include brands like Corsair, Crucial, Kingston, G.Skill and many more to optimize memory modules and configurations.
CORE BOOST
Core Boost technology combines MSI's premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU overclocking.
- Flexible connectivity options

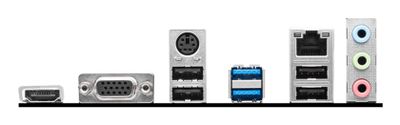

The MSI PRO H610M-E provides a variety of connectivity options, including USB 3.2 Gen 1 ports, audio line-in and line-out, HDMI, and VGA outputs. This range of ports allows users to connect various peripherals and devices seamlessly. - Efficient RAM support
With support for DDR4 SDRAM and non-ECC memory integrity check, the motherboard accommodates RAM speeds from 2133 MHz to 3200 MHz. This ensures efficient performance and responsiveness for demanding applications. - Enhanced audio capabilities
Featuring high definition audio through the Realtek ALC897 codec, the motherboard supports up to 8-channel audio output. Enhanced audio technology improves the overall sound experience for gaming and multimedia. - Robust expansion capabilities
The motherboard is designed with two DIMM slots, multiple PCIe slots, and an M.2 socket, providing ample opportunities for upgrading and expanding system capabilities based on user needs. - Reliable network performance
Equipped with a Gigabit Ethernet network controller, the MSI PRO H610M-E ensures reliable and fast networking, enabling smooth online experiences essential for gaming and data transfer.
