Article-No.:
275615
Manufacturer-No.:
7E78-001R
EAN/GTIN:
4711377384308
WEEE Nummer
DE14287349
Technical specifications
Description
Technical specifications
General
Packaged Quantity
1
Processor
Installed Qty
0
Max Supported Qty
1
Mainboard
Form Factor
Micro ATX
Compatible Processors
Ryzen
Chipset Type
AMD B850
Supported RAM Technology
DDR5 SDRAM
Supported RAM Integrity Check
Non-ECC, On-die ECC
Supported RAM Speed
5600 MT/s, 4800 MT/s, 8200 MT/s (O.C.), 6400 MT/s (O.C.), 5600 MT/s (O.C.), 6000 MT/s (O.C.)
Processor Socket
Socket AM5
Power Connectors
24-pin main power connector, 2 x 8-pin ATX12V connectors
Supported RAM (Registered or Buffered)
Unbuffered
RAM Slots
4 DIMM slots
Interfaces
Internal Interfaces
1 x USB-C 3.2 Gen 2 - header, 1 x audio - header, 1 x serial - header, 4 x USB 2.0 - header, 2 x USB 3.2 Gen 1 - header, 1 x SPI - header
RAM
Features
AMD EXPO technology, Dual channel memory architecture
Max Supported Size
256 GB
Video Output
Type
Graphics adapter (CPU required)
Audio Output
Type
Sound card
Compliant Standards
High Definition Audio
Audio Codec
Realtek ALC897
Audio
High Definition Audio (8-channel)
Networking
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.4, IEEE 802.11be (Wi-Fi 7), IEEE 802.11n, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, 5 Gigabit Ethernet, 2.5 Gigabit Ethernet
Network Controller
Realtek RTL8126VB
Network
802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4, 5 Gigabit Ethernet
Expansion Slots
Expansion Slots
1 x CPU, 2 x PCIe 3.0 x16 (x1 mode), 1 x PCIe 5.0 x16, 2 x M.2 socket (2260/2280 M.2 Key M slot), 4 x DIMM 288-pin, 1 x PCIe 4.0 x16 (x4 mode)
Interfaces
Storage Interfaces
PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1, PCIe 5.0 -connectors: 1 x M.2 - RAID 0 / RAID 1, SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10
Storage
Serial ATA-600 (RAID), M.2 socket
USB / FireWire
USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen2
Storage Ports
4 x SATA-600 (RAID), 2 x M.2
USB / FireWire Ports Configuration (Active)
2 x USB-C 3.2 Gen 2 + 3 x USB 3.2 Gen 2 + 3 x USB 3.2 Gen 1
USB / FireWire Ports Configuration (Headers)
1 x USB-C 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0
Software
Software Included
MSI Center
Dimensions & Weight
Width
24,384 cm
Depth
24,384 cm
Description

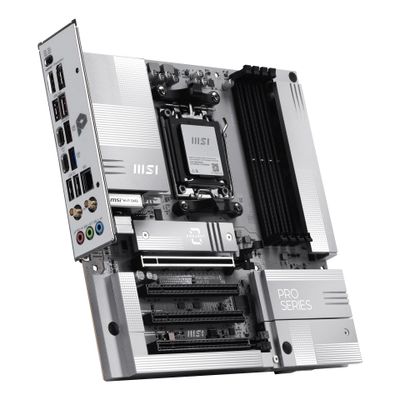

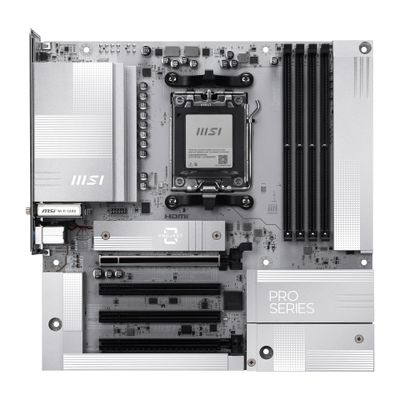

Experience performance with the MSI PRO B850M-A WIFI PZ motherboard, designed for the Ryzen processors. This micro ATX motherboard offers a rich feature set, including support for high-speed DDR5 RAM with speeds up to 8200 MT/s when overclocked, ensuring that users can harness processing power for demanding applications and gaming. The motherboard is equipped with multiple expansion slots, featuring PCIe 4.0 and PCIe 5.0 x16 for graphics and high-speed storage, as well as dedicated M.2 slots for faster data transfer rates than traditional SATA connections. Connectivity is a strong point with the MSI PRO B850M-A WIFI PZ, offering USB 3.2 Gen 2 and USB-C ports for versatile connections with peripherals. With built-in high definition audio, users can enjoy immersive sound quality for an enhanced multimedia experience. The motherboard includes 5 Gigabit Ethernet and support for Wi-Fi 6E technology, ensuring fast and reliable connections. Built with durability in mind, it features a 6 Layer PCB and MSI Steel Armor that protect components and maintain performance over time.
- Robust Connectivity

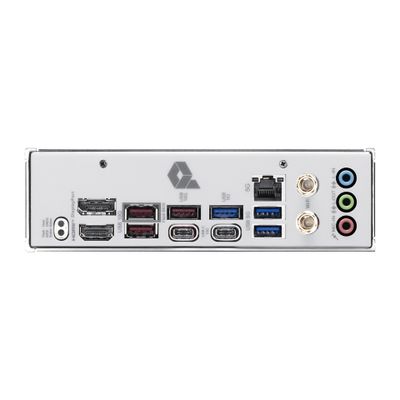

This motherboard features USB 3.2 Gen 2 and USB-C ports, ensuring quick and efficient connections to various peripherals. It supports multiple audio outputs including audio line-in and line-out for versatile sound options. - Powerful Performance
Designed to accommodate high-performing Ryzen processors, this motherboard supports DDR5 RAM speeds up to 8200 MT/s when overclocked. It utilizes an 8+2+1 phase power design, offering better power management for demanding tasks. - Enhanced Durability
With a 6 Layer PCB and MSI Steel Armor, this motherboard provides protection for components, ensuring stable performance over the long term. Features like overcurrent and overvoltage protection add extra security. - Advanced Cooling Solutions
The MSI PRO B850M-A WIFI PZ includes Frozr AI Cooling technology and an Extended Heatsink Design to manage temperatures efficiently, helping maintain optimal performance during intense workloads or gaming sessions. - Audio Technology
Incorporating MSI Audio Boost, this motherboard delivers high definition 8-channel audio output, enhancing the overall user experience for gaming, music, or media consumption.
