Product content
Product content
- MSI MAG B850M MORTAR WIFI
- Serial ATA cable
- 1 x M.2 screw, EZ front panel cable, cable stickers, EZ Wi-Fi antenna, 1 to 2 EZ Conn-Cable, 2 x EZ M.2 clip II, EZ M.2 clip II remover
- Software
/asset/7/f/6/0/7f60be086f2b6e9162520e98c8d6ee950b922182_273230.jpg)
/asset/2/2/b/e/22be967dc0595dbc74c16ed5f2f96a877e6b21ed_273230_2.jpg)
/asset/8/0/c/2/80c238127549f074eeb1a1557ab8ccfac4aada51_273230_3.jpg)
/asset/6/7/f/6/67f640275c29b61f6c74b5b3e6494ebc1712dbf2_273230_4.jpg)
/asset/7/f/6/0/7f60be086f2b6e9162520e98c8d6ee950b922182_273230.jpg)
/asset/2/2/b/e/22be967dc0595dbc74c16ed5f2f96a877e6b21ed_273230_2.jpg)
/asset/8/0/c/2/80c238127549f074eeb1a1557ab8ccfac4aada51_273230_3.jpg)
/asset/6/7/f/6/67f640275c29b61f6c74b5b3e6494ebc1712dbf2_273230_4.jpg)
Please login to see the price and order.
Article-No.:
273230
Manufacturer-No.:
7E61-001R
EAN/GTIN:
4711377321150
WEEE Nummer
DE14287349
Technical specifications
Description
Technical specifications
General
Packaged Quantity
1
Processor
Installed Qty
0
Max Supported Qty
1
Mainboard
Form Factor
Micro ATX
Chipset Type
AMD B850
Supported RAM Technology
DDR5 SDRAM
Supported RAM Integrity Check
Non-ECC
Supported RAM Speed
4100 Mhz (O.C), 2400 MHz, 2800 MHz, 2800 MHz (O.C.), 2400 MHz (O.C.), 3200 MHz (O.C.)
Processor Socket
Socket AM5
Power Connectors
24-pin main power connector, 2 x 8-pin ATX12V connectors
Supported RAM (Registered or Buffered)
Unbuffered
RAM Slots
4 DIMM slots
Interfaces
Internal Interfaces
1 x USB-C 3.2 Gen 2 - header, 1 x audio - header, 4 x USB 2.0 - header, 2 x USB 3.2 Gen 1 - header, 1 x SPI - header
RAM
Features
AMD EXPO technology, Dual channel memory architecture
Max Supported Size
256 GB
Video Output
Type
Graphics adapter (CPU required)
Audio Output
Type
Sound card
Compliant Standards
High Definition Audio
Audio Codec
Realtek ALC4080
Audio
High Definition Audio (8-channel)
Networking
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.4, IEEE 802.11be (Wi-Fi 7), IEEE 802.11n, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, 5 Gigabit Ethernet, 2.5 Gigabit Ethernet
Network Controller
Realtek RTL8126VB
Network
802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4, 5 Gigabit Ethernet
Expansion Slots
Expansion Slots
1 x CPU, 1 x PCIe 4.0 x4, 1 x M.2 socket (2280 M.2 Key M slot), 1 x PCIe 5.0 x16, 2 x M.2 socket (2242/2260 M.2 Key M slot), 4 x DIMM 288-pin, 1 x M.2 socket (Key E)
Interfaces
Storage Interfaces
PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 5, PCIe 5.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 5, SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10
Storage
Serial ATA-600 (RAID), M.2 socket
USB / FireWire
USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen2, USB-C 3.2 Gen 2x2
Storage Ports
4 x SATA-600 (RAID), 3 x M.2
USB / FireWire Ports Configuration (Active)

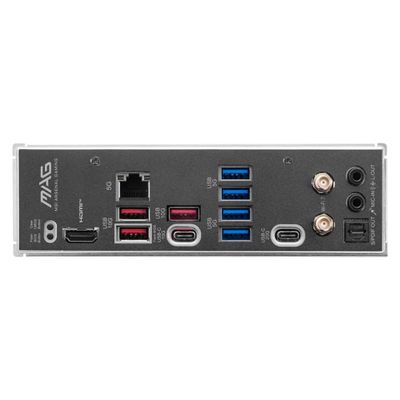

1 x USB-C 3.2 Gen 2x2 + 1 x USB-C 3.2 Gen 2 + 3 x USB 3.2 Gen 2 + 4 x USB 3.2 Gen 1
USB / FireWire Ports Configuration (Headers)
1 x USB-C 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0
Software
Software Included
AIDA64 Extreme (60 days trial), MSI Center
Dimensions & Weight
Width
24,384 cm
Depth
24,384 cm
Description

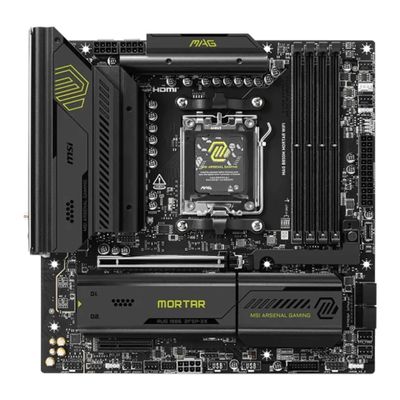

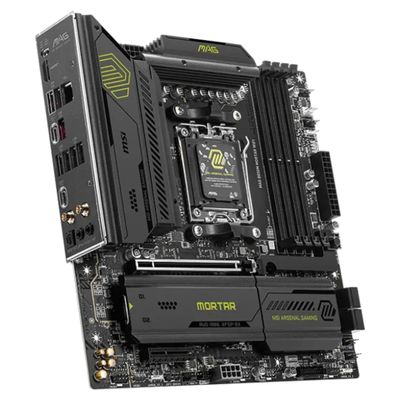

The MSI MAG B850M MORTAR WIFI motherboard is designed for performance and flexibility, suitable for AMD Ryzen 7000/8000/9000 Series processors. Featuring a micro ATX form factor, this motherboard supports DDR5 SDRAM with speeds reaching up to 4100 MHz (O.C.) across four DIMM slots. Enhanced with MSI's Core Boost technology and an extended heatsink design, this motherboard ensures robust power delivery and efficient cooling, ideal for high-performance gaming and productivity tasks.
Connectivity is a key highlight of the MAG B850M, with multiple high-speed USB 3.2 Gen connections, including USB-C options for data transfers. Networking capabilities include 5 Gigabit Ethernet and Wi-Fi 7 support, ensuring users have rapid and stable online access. The Realtek ALC4080 sound card provides high definition audio quality, supporting an immersive audio experience. With features like MSI Mystic Light, 8 Layer PCB, and an EZ Debug LED, this motherboard combines aesthetic appeal with advanced functionality, catering to the needs of tech enthusiasts and gamers alike.
Connectivity is a key highlight of the MAG B850M, with multiple high-speed USB 3.2 Gen connections, including USB-C options for data transfers. Networking capabilities include 5 Gigabit Ethernet and Wi-Fi 7 support, ensuring users have rapid and stable online access. The Realtek ALC4080 sound card provides high definition audio quality, supporting an immersive audio experience. With features like MSI Mystic Light, 8 Layer PCB, and an EZ Debug LED, this motherboard combines aesthetic appeal with advanced functionality, catering to the needs of tech enthusiasts and gamers alike.
- Robust power design
The 12+2+1 Phase Power Design optimizes power delivery for stable performance even under heavy loads, complemented by a 60 A Power Stage for high current capacity. - Efficient cooling system
Frozr AI Cooling technology enhances thermal management by adjusting fan speeds according to system temperatures, ensuring components remain cool during intense use. - Advanced connectivity options
Featuring 4 x SATA-600 RAID storage options and 3 x M.2 sockets, this motherboard offers extensive storage flexibility for faster data access and increased performance. - Immersive audio experience
MSI Audio Boost 5 technology delivers high definition audio through the Realtek ALC4080 sound card, providing clear and rich sound quality for gaming and multimedia. - User-friendly design
DIY-friendly features such as a pre-mounted I/O shield and EZ M.2 Shield FROZR II facilitate easy builds and upgrades, catering to both novice and experienced users.
