Product content
Product content
- MSI MAG B850 TOMAHAWK MAX WIFI
- Serial ATA cable
- EZ front panel cable, cable sticker, 1 to 3 EZ Conn-Cable, EZ Wi-Fi antenna, EZ M.2 clip II remover, 3 x EZ M.2 clip II
- Software
/asset/b/9/1/e/b91e6a43e2e221181ff44a91f90385ff49937372_261165.jpg)
/asset/b/e/c/b/becba1b73d6769995b9439e2b50b410994e24231_261165_2.jpg)
/asset/3/7/c/b/37cb1e09807b9717dc848a251bbd3e701b41a66b_261165_3.jpg)
/asset/b/9/1/e/b91e6a43e2e221181ff44a91f90385ff49937372_261165.jpg)
/asset/b/e/c/b/becba1b73d6769995b9439e2b50b410994e24231_261165_2.jpg)
/asset/3/7/c/b/37cb1e09807b9717dc848a251bbd3e701b41a66b_261165_3.jpg)
Please login to see the price and order.
Article-No.:
261165
Manufacturer-No.:
7E62-002R
EAN/GTIN:
4711377290623
WEEE Nummer
DE14287349
Technical specifications
Description
Technical specifications
General
Packaged Quantity
1
Processor
Installed Qty
0
Max Supported Qty
1
Mainboard
Form Factor
ATX
Chipset Type
AMD B850
Supported RAM Technology
DDR5 SDRAM
Supported RAM Integrity Check
Non-ECC
Supported RAM Speed
5600 MHz (O.C.), 4800 MHz, 6400 MHz (O.C.), 8400 MHz (O.C.)
Processor Socket
Socket AM5
I/O Controller
Nuvoton NCT6687-R
Power Connectors
8-pin PCI Express power connector, 24-pin main power connector, 2 x 8-pin PCI Express power connector
Supported RAM (Registered or Buffered)
Unbuffered
RAM Slots
4 DIMM slots
Interfaces
Internal Interfaces
1 x USB-C 3.2 Gen 2x2 - header, 4 x USB-C 3.2 Gen 2 - header, 1 x audio - header, 4 x USB 3.2 Gen 1 - header, 1 x SPI - header
RAM
Features
AMD EXPO technology, Dual channel memory architecture
Max Supported Size
256 GB
Video Output
Type
Graphics adapter (CPU required)
Audio Output
Type
Sound card
Compliant Standards
High Definition Audio
Audio Codec
Realtek ALC4080
Audio
High Definition Audio (8-channel)
Networking
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.4, IEEE 802.11be (Wi-Fi 7), IEEE 802.11n, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, 5 Gigabit Ethernet, 2.5 Gigabit Ethernet
Network
802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4, 5 Gigabit Ethernet
Expansion Slots
Expansion Slots
1 x CPU, 1 x PCIe 5.0 x16, 1 x M.2 socket (2280/22110), 3 x M.2 socket (2260/2280), 4 x DIMM 288-pin, 1 x PCIe 3.0 x1, 1 x PCIe 4.0 x16
Interfaces
Storage Interfaces
PCIe 4.0 -connectors: 2 x M.2, PCIe 5.0 -connectors: 2 x M.2, SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10
Storage
Serial ATA-600 (RAID), M.2 socket
USB / FireWire
USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen2, USB-C 3.2 Gen 2x2
Storage Ports
4 x SATA-600 (RAID), 4 x M.2
USB / FireWire Ports Configuration (Active)

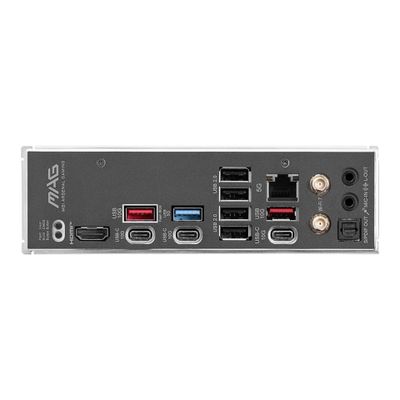

3 x USB-C 3.2 Gen 2 + 2 x USB 3.2 Gen 2 + 1 x USB 3.2 Gen 1 + 4 x USB 2.0
USB / FireWire Ports Configuration (Headers)
1 x USB-C 3.2 Gen 2x2 + 4 x USB 3.2 Gen 1 + 4 x USB 2.0
Software
Software Included
MSI Center, AIDA64 Extreme - MSI Edition, MSI App Player, Norton 360, Dropbox, Adobe Acrobat Reader
Dimensions & Weight
Width
30,48 cm
Depth
24,348 cm
Description

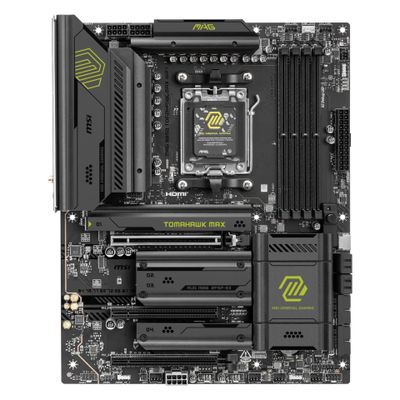

The MSI MAG B850 TOMAHAWK MAX WIFI motherboard is designed for high-performance computing and gaming. Equipped with advanced features including the AMD B850 chipset, it supports Ryzen 7000, 8000, and 9000 Series processors, enabling exceptional processing capabilities. Its 4 DIMM slots support DDR5 SDRAM with speeds up to 8400 MHz when overclocked, ensuring smooth multitasking and performance during demanding applications.
Connectivity is a key highlight, featuring multiple USB ports including USB 3.2 Gen 2 and USB-C 3.2 Gen 2x2, enabling rapid data transfer. Additionally, the integrated 5 Gigabit Ethernet and Wi-Fi 7 capability provide seamless Internet connectivity for online gaming and heavy downloading. The board is enhanced with MSI's Audio Boost technology, an extended heatsink design, and pre-mounted I/O shield for convenience and durability during installation.
Connectivity is a key highlight, featuring multiple USB ports including USB 3.2 Gen 2 and USB-C 3.2 Gen 2x2, enabling rapid data transfer. Additionally, the integrated 5 Gigabit Ethernet and Wi-Fi 7 capability provide seamless Internet connectivity for online gaming and heavy downloading. The board is enhanced with MSI's Audio Boost technology, an extended heatsink design, and pre-mounted I/O shield for convenience and durability during installation.
- Powerful processing support
The motherboard is compatible with AMD Ryzen processors from the 7000 to 9000 Series, providing flexibility for performance enhancements. - High-speed memory capability
Equipped with 4 DIMM slots, it supports DDR5 RAM with speeds reaching up to 8400 MHz (overclocking), facilitating improved system responsiveness. - Extensive connectivity options
Includes various USB ports, such as USB 3.2 Gen 2, USB-C 3.2 Gen 2x2, and multiple audio outputs to ensure versatile options for peripherals and devices. - Robust networking features
Offers 5 Gigabit Ethernet and Wi-Fi 7 to ensure a stable and fast Internet connection for both gaming and streaming needs. - Exceptional audio experience
Designed with MSI Audio Boost technology, it delivers high-definition audio for an immersive sound experience in games and media.
