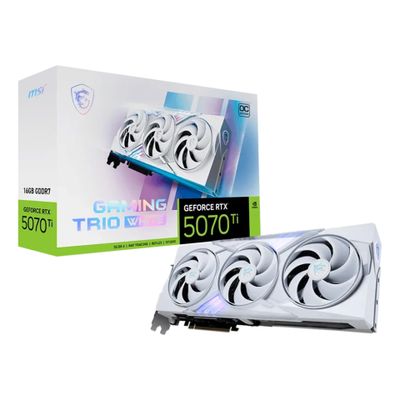

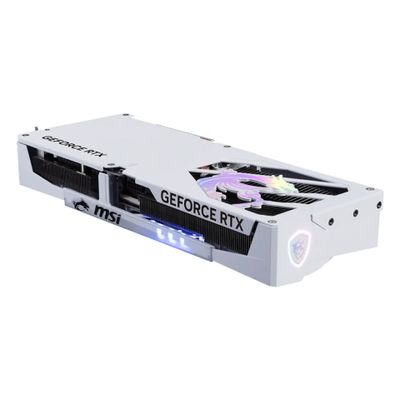

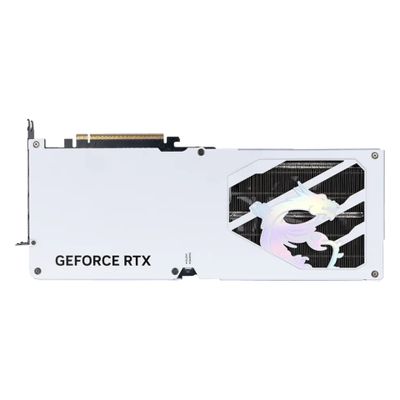

MSI GeForce RTX 5070 Ti 16G GAMING TRIO OC - graphics card - GeForce RTX 5070 Ti - 16 GB - white

MSI GeForce RTX 5070 Ti 16G GAMING TRIO OC - graphics card - GeForce RTX 5070 Ti - 16 GB - white_thumb_3

MSI GeForce RTX 5070 Ti 16G GAMING TRIO OC - graphics card - GeForce RTX 5070 Ti - 16 GB - white_thumb_4

MSI GeForce RTX 5070 Ti 16G GAMING TRIO OC - graphics card - GeForce RTX 5070 Ti - 16 GB - white_thumb_5

MSI GeForce RTX 5070 Ti 16G GAMING TRIO OC - graphics card - GeForce RTX 5070 Ti - 16 GB - white_1

MSI GeForce RTX 5070 Ti 16G GAMING TRIO OC - graphics card - GeForce RTX 5070 Ti - 16 GB - white_2

MSI GeForce RTX 5070 Ti 16G GAMING TRIO OC - graphics card - GeForce RTX 5070 Ti - 16 GB - white_3

MSI GeForce RTX 5070 Ti 16G GAMING TRIO OC - graphics card - GeForce RTX 5070 Ti - 16 GB - white_4

MSI GeForce RTX 5070 Ti 16G GAMING TRIO OC - graphics card - GeForce RTX 5070 Ti - 16 GB - white_5

Article-No.:

276359

Manufacturer-No.:

V531-057R

EAN/GTIN:

4711377301060

Compare

Print view

Technical specifications

General

Packaged Quantity

Video Output

Interface Type

PCI Express 5.0

Graphics Processor

NVIDIA GeForce RTX 5070 Ti

Max External Resolution

7680 x 4320

Max Monitors Supported

API Supported

DirectX 12 Ultimate, OpenGL 4.6

Video Adapter Features

Triple Fan Design, Nvidia Studio, Core Pipe, Nvidia Broadcast, Metal backplate, Nickel plated copper base, Custom PCB, Dual Bios, 2oz copper PCB, NVIDIA DLSS 4, NVIDIA Blackwell GPU architecture, NVIDIA Reflex 2, 4th gen Ray Tracing Cores, 5th gen Tensor Cores, 9th Gen NVIDIA Encoder, NVIDIA Avatar Cloud Engine (ACE), TriFrozr 4 Thermal Design, Wave Curved 4.0, Air Antegrade Fin 2.0, NVIDIA Multi Frame Generation, NVIDIA Frame Warp, MSI Stormforce fan, NVIDIA G-Sync ready, DrMOS, RGB Lighting

Graphics Processor Manufacturer

NVIDIA

HDCP Compatible

Type

Graphics card

CUDA Cores Qty

8960

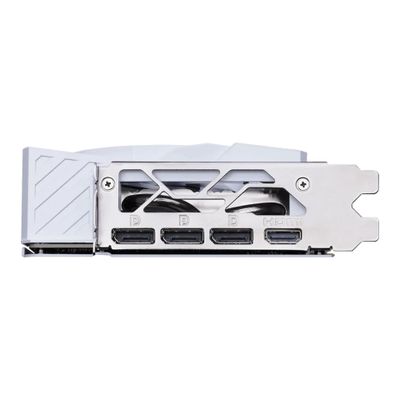

Output Ports (compact list)

HDMI, 3 x DisplayPort

Supported Video Signal

HDMI, DisplayPort

Boost Clock Speed

2572 MHz

Video Memory

Technology

GDDR7 SDRAM

Bus Width

256-bit

Installed Size

16 GB

Interfaces

Interfaces Details

HDMI, 3 x DisplayPort

Software

Type

MSI APP Player, NVIDIA Studio drivers, MSI Center, Adobe Creative Cloud All Apps (1 month membership), GeForce Game Ready Drivers, MSI Afterburner, Norton 360 (30 days trial)

Power Device

Power Consumption Operational

300 Watt

System Requirements

Additional Requirements

16 pin PCI Express power connector

Required Power Supply

750 W

Dimensions & Weight

Width

5 cm

Depth

33,8 cm

Height

14 cm

Weight

1,296 kg

Dimensions & Weight (Shipping)

Shipping Weight

1,819 kg

Miscellaneous

Color

White

Color Category

White

Description

Experience gaming like never before with the GeForce RTX 5070 Ti 16G GAMING TRIO OC from MSI. This graphics card features a 16 GB video memory and a bus width of 256-bit, providing the necessary capabilities for rendering high-resolution graphics. With support for a maximum external resolution of 7680 x 4320, the card allows for an immersive gaming experience, managing multiple displays up to four monitors seamlessly.
Powered by NVIDIA's graphics processor, this card ensures compatibility with HDCP, allowing for playback of high-definition content. The selection of output ports includes HDMI and three DisplayPort connections, accommodating various setups. Whether gaming, streaming, or designing, this card delivers performance and visual quality for all applications.

Robust video memory
Equipped with 16 GB of video memory, this graphics card handles demanding applications and provides smooth gameplay.
High resolution support
Supports a maximum external resolution of 7680 x 4320, delivering clarity and detail in every frame.
Multi-monitor capability
Allows for connectivity to up to 4 monitors simultaneously, enabling an expansive gaming or work setup.
Secure playback compatibility
Offers HDCP compatibility, allowing for high-definition video content playback.
Variety of output options
Features HDMI and three DisplayPort outputs, ensuring connectivity to a range of display devices.

Documents

MSI GeForce RTX 5070 Ti 16G GAMING TRIO OC - graphics card - GeForce RTX 5070 Ti - 16 GB - white Brochure

Product content

MSI GeForce RTX 5070 Ti 16G GAMING TRIO OC
MSI Afterburner, Norton 360 (30 days trial), MSI APP Player, NVIDIA Studio drivers, MSI Center, Adobe Creative Cloud All Apps (1 month membership), GeForce Game Ready Drivers
Graphics card holder, 16-pin to 3x 8-pin cable adapter
