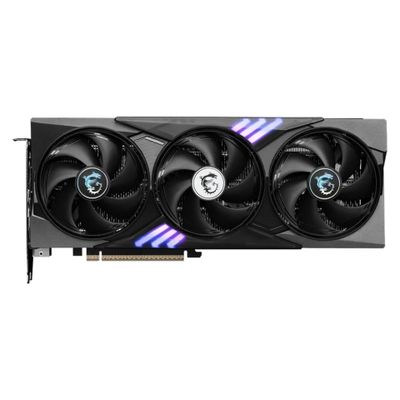

MSI GAMING TRIO OC - graphics card - GeForce RTX 5060 Ti - 8 GB

MSI GAMING TRIO OC - graphics card - GeForce RTX 5060 Ti - 8 GB_thumb_3

MSI GAMING TRIO OC - graphics card - GeForce RTX 5060 Ti - 8 GB_1

MSI GAMING TRIO OC - graphics card - GeForce RTX 5060 Ti - 8 GB_2

MSI GAMING TRIO OC - graphics card - GeForce RTX 5060 Ti - 8 GB_3

Article-No.:

278495

Manufacturer-No.:

V536-004R

EAN/GTIN:

4711377341394

Compare

Print view

Technical specifications

General

Packaged Quantity

Video Output

Interface Type

PCI Express 5.0 x16 (x8 mode)

Graphics Processor

NVIDIA GeForce RTX 5060 Ti

Max External Resolution

7680 x 4320

Max Monitors Supported

API Supported

DirectX 12 Ultimate, OpenGL 4.6

Video Adapter Features

Triple Fan Design, Nvidia Studio, Core Pipe, Nvidia Broadcast, Metal backplate, Nickel plated copper base, NVIDIA DLSS 4, NVIDIA Blackwell GPU architecture, NVIDIA Reflex 2, 4th gen Ray Tracing Cores, 5th gen Tensor Cores, 9th Gen NVIDIA Encoder, NVIDIA Avatar Cloud Engine (ACE), TriFrozr 4 Thermal Design, Wave Curved 4.0, Air Antegrade Fin 2.0, NVIDIA Multi Frame Generation, NVIDIA Frame Warp, MSI Stormforce fan, NVIDIA G-Sync ready, DrMOS, Fuse protection

Graphics Processor Manufacturer

NVIDIA

HDCP Compatible

Type

Graphics card

CUDA Cores Qty

4608

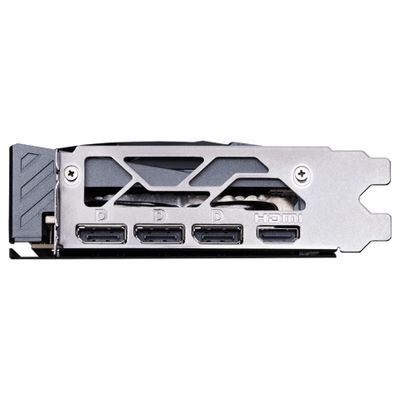

Output Ports (compact list)

HDMI, 3 x DisplayPort

Supported Video Signal

HDMI, DisplayPort

Boost Clock Speed

2647 MHz

Video Memory

Technology

GDDR7 SDRAM

Bus Width

128-bit

Installed Size

8 GB

Interfaces

Interfaces Details

HDMI, 3 x DisplayPort

Software

Type

MSI APP Player, MSI Center, Adobe Creative Cloud All Apps (1 month membership), Norton 360 for Gamers (30 days trial), MSI Afterburner

Power Device

Power Consumption Operational

180 Watt

System Requirements

Additional Requirements

16 pin PCI Express power connector

Required Power Supply

600 W

Dimensions & Weight

Width

4,4 cm

Depth

30 cm

Height

12,5 cm

Weight

839 g

Dimensions & Weight (Shipping)

Shipping Weight

1,345 kg

Miscellaneous

Color Category

Black, Gray

Description

The MSI GAMING TRIO OC is designed to deliver impressive gaming performance with its NVIDIA GeForce RTX 5070 Ti graphics processor. It has 16 GB of GDDR7 SDRAM and a 256-bit bus width, providing a memory speed of 28 Gbps for swift and smooth gaming visuals. The maximum external resolution of 7680 x 4320 supports graphics on multiple monitors, with the capability to connect up to 4 displays simultaneously. V-Sync rate at max resolution reaches 120 Hz, providing an immersive gaming experience with reduced lag.

High-capacity memory
The graphics card comes with 16 GB of GDDR7 SDRAM, allowing for efficient multitasking and high-resolution gaming.
Powerful graphics processing
Powered by the NVIDIA GeForce RTX 5070 Ti, it offers a boost clock speed of 2572 MHz to handle demanding games and applications.
Advanced cooling design
Featuring a triple fan design and MSI Stormforce fan, this card ensures optimal temperature management during intense gaming sessions.
Versatile connectivity options
With multiple output ports, including 3 DisplayPort and HDMI, this graphics card supports a variety of display configurations.
Robust build quality
The graphics card features a metal backplate and nickel plated copper base, ensuring durability while optimizing thermal conductivity.

Documents

Product content

MSI GAMING TRIO OC
MSI Afterburner, MSI APP Player, MSI Center, Adobe Creative Cloud All Apps (1 month membership), Norton 360 for Gamers (30 days trial)
Graphics card holder, 16-pin to 2x 8-pin cable adapter
