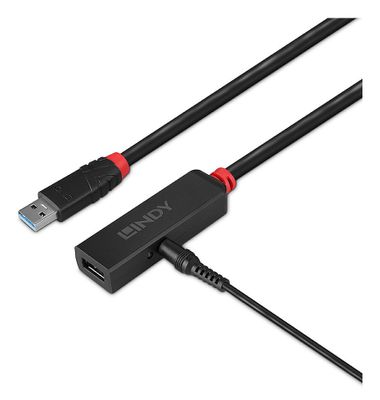

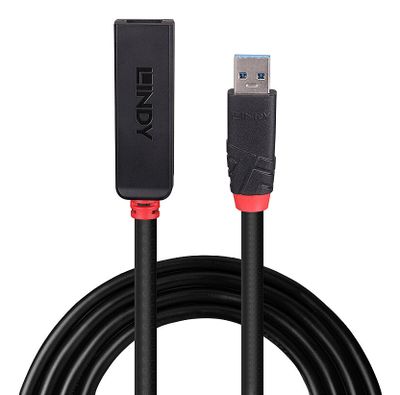

Lindy USB-A extension cable - 5 m

Article-No.:
257383
Manufacturer-No.:
43401
EAN/GTIN:
4002888434010
WEEE Nummer
DE64817326
Technical specifications

General

Packaged Quantity
1

Cable

I/O Cable Type
USB extension cable
Compliant Standards
USB 3.2
Technology
STP
Left Connector Type
9 pin USB Type A
Right Connector Type
9 pin USB Type A, Power DC jack 2.5 mm (ID: 0.7 mm)
Right Connector Gender
Female
Left Connector Gender
Male
Shielding Material
Tinned copper
Right Connector Qty
2
Left Connector Qty
1
Cable Features
Gold plated pins, PVC housing, 0°C to 40°C operating temperature, Up to 5Gbps data rate, Minimum bend radius 80 mm, Round, Tinned copper conductor
Jacket Material
PVC
Plated Connector
Nickel

Dimensions & Weight

Weight
420 g
Length
5 m

Dimensions & Weight (Shipping)

Shipping Weight
460 g

Miscellaneous

Color
Black
Color Category
Black
Description
The Lindy USB 3.0 Active Extension Cable uses built-in active electronics to extend the cable length of a USB 3.0 device by an additional 3m whilst continuing to support data transfer rates of up to 5Gbps. With its USB A male and USB A female connector it allows Type A devices such as storage devices, webcams and other Type A devices to be connected at longer distances to PCs, laptops and tablets, while also ensuring flexible positioning.

Up to 5 of these USB 3.0 Active Extensions Slim can be chained together. In addition, a maximum of 5 of the different cable lengths of these USB 3.0 Active Extensions Slim can be combined with each other. The only exception is the 15m version No. 43404: as it has 2 chipsets, a maximum of 3 other USB 3.0 Active Extensions Slim can be combined with it.

The Lindy USB 3.0 Active Extension Slim is supplied with power via the USB bus, but also has a DC socket for connecting a power supply unit for devices with high power requirements or if you want to connect several cables in series.

The Lindy USB 3.0 Active Extension Cable is compatible with all USB Type A equipped computers. The cable's unique and slim design allows installation in narrow surroundings - an advantage over other active USB leads which use bulky connectors. With plug and play functionality, this extension cable can be installed quickly and with minimum fuss, ideal for both professional and first time users.

Information about USB 3.0, 3.1 & 3.2
USB 3.0, USB 3.1 and USB 3.2 PCs, cables and devices are all compatible with each other, when using either a USB Type A or USB Type C host interface.
USB 3.0, USB 3.1 Gen 1 and USB 3.2 Gen 1 all support data transfer rates up to 5 Gbps.
USB 3.1 Gen 2 and USB 3.2 Gen 2 both support data transfer rates up to 10 Gbps.
  • Efficient data transfer
    With USB 3.2 compliance, this cable enables data transfer rates of up to 5 Gbps, making it suitable for transferring large files quickly and easily.
  • Robust construction
    The cable features tinned copper conductors and gold-plated pins that enhance durability and reduce signal loss, ensuring optimal performance over time.
  • Versatile connectivity
    The cable includes two 9-pin USB-A connectors, allowing for a variety of devices to be connected seamlessly, along with a power DC jack for additional versatility.
  • Temperature resilient
    Operating effectively within a temperature range of 0°C to 40°C, this cable is designed to function in various environments without compromising performance.
