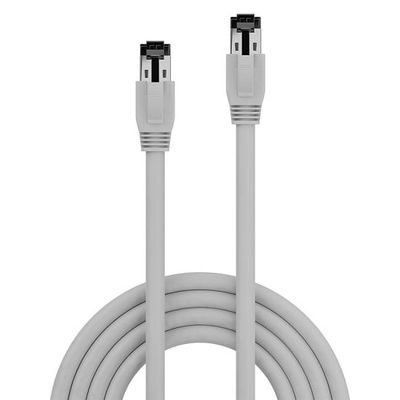

Lindy 5m Cat.8.1 S/FTP LSZH Cable, Grey

Lindy 5m Cat.8.1 S/FTP LSZH Cable, Grey_thumb_3

Lindy 5m Cat.8.1 S/FTP LSZH Cable, Grey_1

Lindy 5m Cat.8.1 S/FTP LSZH Cable, Grey_2

Lindy 5m Cat.8.1 S/FTP LSZH Cable, Grey_3

Article-No.:

257807

Manufacturer-No.:

47446

EAN/GTIN:

4002888474467

WEEE Nummer

DE64817326

Compare

Print view

Technical specifications

General

Packaged Quantity

Cable

Network Cable Type

Patch cable

Technology

S/FTP, PiMF

Left Connector Type

RJ-45

Right Connector Type

RJ-45

Right Connector Gender

Male

Left Connector Gender

Male

Shielding Material

Aluminum foil with braid

Features

Gold-plated pins, Strain relief, Latch protection, Corrosion-resistant, Polycarbonate housing, Copper conductors

Right Connector Qty

Left Connector Qty

Jacket Material

Low Smoke Zero Halogen (LSZH)

Dimensions & Weight

Width

12 mm

Depth

38,5 mm

Height

17 mm

Length

5 m

Diameter

7,5 mm

Miscellaneous

Color

Gray

Color Category

Gray

Description

Cat.8.1 S/FTP LSZH network cable with support for bandwidth up to 2000MHz and features a snagless design with gold plated contacts for ethernet standards up to 40GBase-T.

Cat.8.1 cable with S/FTP shielding (braid for overall shield and foil shield for each individual wire pair). With operating frequencies up to 2000MHz they are equipped for ethernet standards 25GBase-T and 40GBase-T. These cables are manufactured and tested according to the ISO/IEC 11801 specification.

The gold-plated contacts ensure reliable, corrosion-free connections over extensive periods of time. A robust snagless strain relief design prevents damage to the connector latch during installation and removal. The halogen-free sheath material of the LSZH cable makes the product suitable for use in public spaces with its low smoke emission and elimination of toxic halogen emissions.

Available in the following lengths: 0.3m, 0.5m, 1m, 1.5m, 2m, 3m, 5m

Enhanced durability
Featuring gold-plated pins and corrosion-resistant copper conductors, this cable is designed for longevity and reliable connectivity. The inclusion of latch protection and strain relief further ensures a durable connection that withstands the rigors of daily use.
High performance
With tested frequencies up to 2000 MHz and the advanced S/FTP, PiMF technology, this CAT 8.1 patch cable delivers high-speed data transmission with minimal interference. Its halogen-free, snagless design, complemented by a Low Smoke Zero Halogen (LSZH) jacket, offers both safety and high performance.
Universal compatibility
Equipped with male RJ-45 connectors on both ends, this patch cable seamlessly connects to a wide range of devices. The nickel-plated connector ensures a secure connection, while the aluminum foil with braid shielding minimizes electromagnetic interference.
