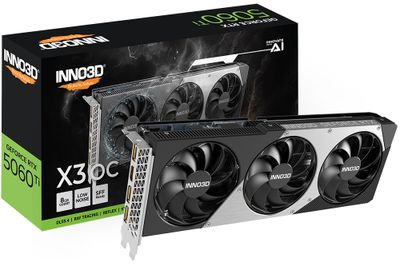

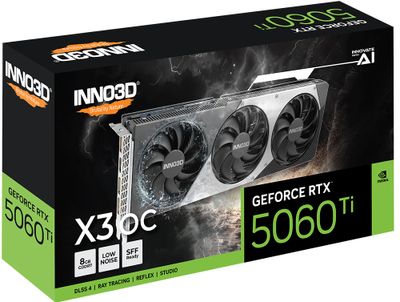

INNO3D GeForce RTX 5060 Ti X3 OC NVIDIA 8 GB GDDR7

Article-No.:
271853
Manufacturer-No.:
N506T3-08D7X-193075L
EAN/GTIN:
8886307700766
WEEE Nummer
DE94008937
Technical specifications

General

Packaged Quantity
1

Video Output

Interface Type
PCI Express 5.0
Graphics Processor
NVIDIA GeForce RTX 5060 Ti
Max External Resolution
7680 x 4320
Max Monitors Supported
4
API Supported
DirectX 12 Ultimate, Vulkan 1.4, OpenGL 4.6
Video Adapter Features
Triple Fan Design, Nvidia Studio, NVIDIA FreeStyle, Metal backplate, Nickel plated copper heatpipes, Copper base, NVIDIA ShadowPlay, NVIDIA Creator Ready Drivers, NVIDIA GeForce SFF-Ready, NVIDIA DLSS 4, NVIDIA Blackwell GPU architecture, 4th gen Ray Tracing Cores, 5th gen Tensor Cores, 9th Gen NVIDIA Encoder, 6th Gen NVIDIA Decoder, NVIDIA GPU Boost, NVIDIA G-Sync ready, 2-slot Fan Cooler, NVIDIA Ansel, Real-Time Ray Tracing, NVIDIA Highlights
Clock Speed
2325 MHz
Graphics Processor Manufacturer
NVIDIA
HDCP Compatible
Type
Graphics card
CUDA Cores Qty
4608
Output Ports (compact list)
HDMI, 3 x DisplayPort
Supported Video Signal
HDMI, DisplayPort
Boost Clock Speed
2602 MHz

Video Memory

Technology
GDDR7 SDRAM
Bus Width
128-bit
Bandwidth
448 GBps
Installed Size
8 GB

Interfaces

Interfaces Details
HDMI (Display Stream Compression (DSC)), 3 x DisplayPort

System Requirements

Additional Requirements
Adjacent PCI slot, 8 pin PCI Express power connector
OS Required
Linux, Windows 11, FreeBSDx86, Windows 10
Required Power Supply
650 W

Dimensions & Weight

Width
4,1 cm
Depth
30 cm
Height
11,6 cm

Miscellaneous

Color Category
Black, Gray
Description
INNO3D® GEFORCE® RTX™ 5060 Ti 8GB X3 OC
The INNO3D GeForce RTX 50 Series promises exceptional performance from these next-gen graphics cards powered by

NVIDIA’s Blackwell Architecture.
The INNO3D GeForce RTX 50 Series promises exceptional performance from these next-gen graphics cards powered by Nvidia’s Blackwell architecture. The INNO3D GeForce RTX 5060 Ti 8GB and 16GB X3 OC heralds a new era in graphics technology with these GPUs setting a new benchmark for performance. The X3 OC goes beyond raw power, featuring a stunning redesign that seamlessly blends form and function. This perfect fusion of aesthetics and cutting-edge technology has earned INNO3D widespread acclaim, solidifying its status as a pioneer in graphics innovation.

RTX. It’s On.
The Ultimate in Ray Tracing and AI

RTX is the most advanced platform for full ray tracing and neural rendering technologies that are revolutionizing the ways we play and create. Over 700 games and applications use RTX to deliver realistic graphics and incredibly fast performance with cutting-edge AI features like DLSS Multi Frame Generation.

NVIDIA DLSS 4
Supreme Speed. Superior Visuals. Powered by AI.

DLSS is a revolutionary suite of neural rendering technologies that uses AI to boost FPS, reduce latency, and improve image quality. ‌The latest breakthrough, DLSS 4, brings new Multi Frame Generation and enhanced Ray Reconstruction and Super Resolution, powered by GeForce RTX™ 50 Series GPUs and fifth-generation Tensor Cores. DLSS on GeForce RTX is the best way to play, backed by an NVIDIA AI supercomputer in the cloud constantly improving your PC’s gaming capabilities. Supreme Speed. Superior Visuals. Powered by AI.

Full Ray Tracing with Neural Rendering
Game-Changing Realism

The NVIDIA Blackwell architecture unlocks the game-changing realism of full ray tracing. Experience cinematic quality visuals at unprecedented speed powered by GeForce RTX 50 Series with fourth-gen RT Cores and breakthrough neural rendering technologies accelerated with fifth-gen Tensor Cores.

NVIDIA Reflex 2
Compete at Warp Speed

Reflex technologies optimize the graphics pipeline for ultimate responsiveness, providing faster target acquisition, quicker reaction times, and improved aim precision in competitive games. Reflex 2 introduces Frame Warp, which further reduces latency based on the game’s latest mouse input. Compete at Warp Speed

RTX AI PCs
NVIDIA Powers the World’s AI. And Yours.

Upgrade to advanced AI with NVIDIA GeForce RTX™ GPUs and accelerate your gaming, creating, productivity, and development. Thanks to built-in AI processors, you get world-leading AI technology powering your Windows PC. NVIDIA Powers the World’s AI. And Yours.

Creators
Your Creative AI-dvantage

NVIDIA Studio is your creative advantage. GeForce RTX 50 Series GPUs unlock transformative performance in video editing, 3D rendering, and graphic design. Experience RTX accelerations in top creative apps, world-class NVIDIA Studio drivers engineered and continually updated to provide maximum stability, and a suite of exclusive tools that harness the power of RTX for AI-assisted creative workflows. Your Creative AI-dvantage

INNO3D GeForce RTXâ„¢ 5060 Ti X3 OC
Enormous Cooler with Triple Fan Blades
88mm scythe fan blades for optimal cooling

Copper Base
Full coverage for GPU
Absorb the heat effectively and spread out by heatpipe

Aluminum Base
Full coverage for Memory
Spread out the heat effectively to the fins

Optimized fin thickness and spacing
Increased airflow between the fins

Multifunctional Backplate
Hot air extraction and release, and PCB protection

Dual Slot
Two slot form factor is an excellent option for MATX and ITX SFF (small form factor) builds.
  • Powerful performance
    The graphics card boasts NVIDIA GeForce RTX 5060 Ti with 4608 CUDA cores and a maximum boost clock speed of 2602 MHz, delivering rendering power for complex graphics tasks.
  • High memory capacity
    An 8 GB GDDR7 SDRAM ensures plenty of video memory for running high-resolution textures and gaming at demanding settings while maintaining fluid performance across applications.
  • Advanced connectivity options
    Featuring three DisplayPort 2.1b outputs and one HDMI output, the card allows for flexible multi-display setups and supports Display Stream Compression for efficient transmission.
  • Enhanced visual experience
    Supports Real-Time Ray Tracing and NVIDIA DLSS 4 to deliver realistic lighting and shadows in games, bringing environments to life with detail.
  • Robust thermal management
    The 2-slot fan cooler and triple fan design ensure efficient cooling while operating, preventing overheating during intense gaming sessions.
Product content

Product content

  • Inno3D GeForce RTX 5060 Ti 8GB X3 OC
  • Graphics card support bracket
