Product content
Product content

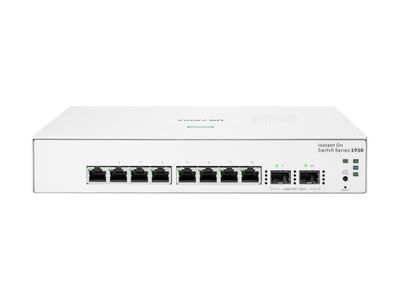

- HPE Aruba Instant On 1930 8G 2SFP Switch
- External power adapter
/asset/4/2/9/1/4291d632b05cc7244410a88bd6fc31d99df9ba48_ded91570_f9b0_4d31_aca8_b053b48d4c4a.jpg)
/asset/7/f/b/f/7fbfcda3b0aecf8f77be7adf708e7fe5d352c1b2_da70eb63_8ab9_4c7c_a91f_04137fbe7c41.jpg)
/asset/4/2/9/1/4291d632b05cc7244410a88bd6fc31d99df9ba48_ded91570_f9b0_4d31_aca8_b053b48d4c4a.jpg)
/asset/7/f/b/f/7fbfcda3b0aecf8f77be7adf708e7fe5d352c1b2_da70eb63_8ab9_4c7c_a91f_04137fbe7c41.jpg)
Please login to see the price and order.
Article-No.:
279365
Manufacturer-No.:
JL680A#ABB
EAN/GTIN:
0190017355030
Technical specifications
Description
Technical specifications
General
Localization
English
Packaged Quantity
1
Processor
Type
Cortex-A9
Installed Qty
1
Manufacturer
ARM
Clock Speed
800 MHz
RAM
Technology
SDRAM
Installed Size
512 MB
Flash Memory
Installed Size
256 MB
Performance
Performance
Latency (100 Mbps): 5.2 µs, Switching capacity: 20 Gbps, Latency (1 Gbps): 3 µs, Throughput: 14.88 Mpps
Ports
Qty
8
Type
10/100/1000
Second Ports
Qty
2
Type
Gigabit SFP
Capacity
Capacity
Link aggregation ports: 8, Access Control Entries (ACEs) per ACL: 480, IPv4 routes (static): 32, VLANs supported: 256, Packet buffer size: 1.5 MB
Networking
Type
Switch
Ports Qty
10
Routing Protocol
Static IP routing
MAC Address Table Size
8000 entries
Advanced Switching
Layer 3
Jumbo Frame Support
9216 bytes
Power Device
Power Consumption Operational
11 Watt
Frequency Required
50/60
Nominal Voltage
AC 120/230 V
Type
External power adapter
Dimensions & Weight
Width
25,4 cm
Depth
15,95 cm
Height
4,39 cm
Weight
820 g
Service & Support
Type
Limited lifetime warranty
Miscellaneous
Color Category
White
Description
The HPE Networking Instant On Switch 1930 series is designed for small and growing businesses that require enhanced performance to support bandwidth-demanding applications. The 1930 switch series seamlessly integrates with existing Instant On indoor/outdoor access points and can be centrally managed with the Instant On mobile app onsite or remotely. These cloud-managed layer 2+ Ethernet switches consist of 8-, 24-, and 48-port Class 4 PoE (i.e. PoE+) and non-PoE Gigabit Ethernet models, with 1 G SFP slots on 8-port model and 1 G/10 G SFP+ slots on 24-/48 G models for fiber connectivity.
- Simplify Network Deployment and Management for Small Organizations
The HPE Networking Instant On Switch 1930 series features easy-to-use, out-of-the-box, plug-and-play deployment.
The series offers a complete portfolio of choices for increased small business flexibility. It consists of seven models including 8 G-, 24 G-, and 48 G-ports with and without class 4 PoE (i.e. PoE+).
The 24- and 48- port models include four SFP/SFP+ transceiver slots that support Gigabit or 10-Gigabit speeds for fiber connectivity.
The HPE Networking Instant On Switch 1930 series can be deployed using two management modes – Instant On cloud-management (access via mobile app and/or web portal) and the local web GUI. - Keep Your Business Protected with Integrated Security Features
The HPE Networking Instant On Switch 1930 series supports energy efficient Ethernet for lower power consumption and an enhanced feature set for more robust operation.
Enhanced security features such as IEEE 802.1x, and VLANs guard your network from unwanted or unauthorized access.
Automatic denial-of-service (DOS) monitors and protects the network against malicious attacks.
Management security restricts access to critical configuration commands, offers multiple privilege levels with password protection. - Deliver High Perfomance
The HPE Networking Instant On Switch 1930 series delivers advanced functionalities including customizable like VLANs, link aggregation, Spanning Tree Protocols, and IEEE 802.1X access control.
8-, 24-, and 48-port configurations with a choice of non-PoE and Class 4 PoE models provides deployment flexibility that fits all small business environment. Class4 PoE options allow to power devices like IP phones, surveillance cameras and access points, without the cost of additional cabling.
The 24- and 48-port models include 1 G/10 G SFP+ ports for reliable fiber connectivity and other connections across longer distances.
