Please login to see the price and order.
Article-No.:
277283
Manufacturer-No.:
JL675A#ABB
EAN/GTIN:
0190017348001
Technical specifications
Description
Technical specifications
General
Localization
English
Packaged Quantity
1
Processor
Type
A9
Installed Qty
1
Manufacturer
ARM
Clock Speed
116 GHz
RAM
Technology
DDR3 SDRAM
Installed Size
4 GB
Flash Memory
Installed Size
16 GB
Performance
Performance
Throughput: 98.6 µs, Latency (1 Gbps): 1.9 µs, Switching capacity: 176 Gbps, Latency (10 Gbps): 1.8 µs
Ports
Qty
48
Type
10/100/1000 (PoE+)
Second Ports
Qty
4
Type
1 Gigabit / 10 Gigabit SFP+
Capacity
Capacity
MLD groups: 512, Switched virtual interfaces (SVIs): 16, IPv4 ACL entries (ingress): 256, IPv6 ACL entries (ingress): 128, MAC ACL entries (ingress): 256, IGMP groups: 512, ARP entries: 1024, IPv4 routes (Unicast): 512, IPv6 routes (Unicast): 512
Networking
Type
Switch
Ports Qty
52
Routing Protocol
IGMPv2, IGMPv3
MAC Address Table Size
8192 entries
Power Over Ethernet (PoE)
PoE+
PoE Budget
370 W
Power Device
Power Consumption Operational
30,6 Watt
Frequency Required
50/60
Power Provided
500 Watt
Nominal Voltage
AC 230 V
Type
Internal power supply
Dimensions & Weight
Width
44,2 cm
Depth
30,48 cm
Height
4,39 cm
Weight
52 kg
Service & Support
Type
Limited lifetime warranty
Miscellaneous
Height (Rack Units)
1
Color Category
Black
Description

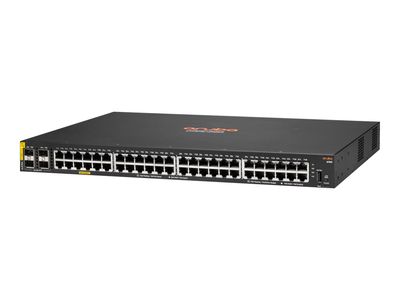

The HPE Aruba Networking CX 6100 Switch Series is a modern family of entry-level access switches ideal for branch offices, mid-market enterprises, and SMB networks. Designed for reliable, simple, and secure access, this switch family provides a convenient wired access solution for enterprise networks supporting Internet of Things (IoT), mobile, and cloud applications. Prepare your network for future demands with a powerful ASIC and the programmable HPE Aruba Networking CX Switch Operating System to deliver a more consistent, more efficient operator experience. This Layer 2 switch series has convenient built-in high speed uplinks with up to 740W of IEEE 802.3at Class 4 PoE to support IoT devices such as security cameras and wireless APs. A compact and fanless 12-port model is ideal for use in quiet workspaces. With robust quality of service (QoS), support for static routing, and IPv6, these switches also simplify ownership with no switch software licensing requirements.
- Entry-level Layer 2 access switches
The HPE Aruba Networking CX 6100 Switch Series offers gigabit connectivity with high-speed uplinks and optional PoE to provide entry-level, reliable, and convenient wired access connectivity for enterprise branch office and SMB networks.
The switch series delivers a simple, consistent operator experience with the HPE Aruba Networking CX Switch Operating System (AOS-CX) used across HPE Aruba Networking CX switching platforms.
It has fully-managed enterprise-class switches deliver Layer 2 capabilities with support for static routing, access control lists (ACLs), robust quality of service (QoS), traffic prioritization, sFlow , and IPv6.
The CX 6100 series provides right-size deployment with choice of 12, 24, and 48-port 1U models with convenient built-in 1/10GbE uplinks and up to 740W of Class 4 PoE.
It simplifies ownership with no switch software licensing or subscriptions required. - AI-ready performance and power
The HPE Aruba Networking CX 6100 Switch Series is designed with a dedicated ASIC that delivers very low latency, increased packet buffering, and adaptive power consumption needed for AI, Wi-Fi 7, and Internet of Things (IoT) requirements.
It has up to 740W IEEE 802.3at Class 4 PoE with up to 30W per port supports newer Wi-Fi 7 and PoE devices.
The four built-in wire speed 1/10GbE uplinks mitigate bottlenecks at the access layer where users and devices connect. - Simplified configuration and management
The HPE Aruba Networking CX 6100 Switch Series provides flexibility to manage and simplify configurations with HPE Aruba Networking Central, HPE Aruba Networking Switch Multi-Edit Software, easy-to-use web GUI, or industry-standard CLI.
HPE Aruba Networking Switch Multi-Edit Software introduces automation that allows for rapid network-wide changes and verifies policy conformance post network updates.
The switch series offers unified management across wired, wireless, and WAN using HPE Aruba Networking Central.
It reduces manual IT operation tasks around initial deployment or on-going configuration changes to accommodate adds, moves, and changes with colorless ports using local user roles and local MAC authentication (LMA).
The CX 6100 series is ready for software-defined networking with REST APIs for fine-grained programmability of network tasks. - It offers virtual switching framework (VSF) stacking - Scale and simplicity
It support for up to eight switches (or members) in a stack through chain or ring topology.
It offers the flexibility to create stacks that span longer distances such as hundreds of meters across campuses to kilometers between sites.
It has the flexibility to mix 24 and 48-port modular and fixed CX 6100 models.
It has a simplified configuration and management as the switches act as a single chassis when stacked.
