Article-No.:

206030

Manufacturer-No.:

3314

EAN/GTIN:

4250058533142

WEEE Nummer

DE97680110

Compare

Print view

Technical specifications

General

Packaged Quantity

AV Furniture

Type

Mounting kit

Color

Black

Recommended Display Size

46"-65"

Mounting Components

Rail, 8 VESA adapters, 3 poles, 3 mounting brackets

Recommended Display Size (metric)

116.8-165.1 cm

Tilt

0° to 20°

Cable Management

Cable management clips

Adjustments

Tilt

Lockable

Lock Type

Padlock (not included)

Placing / Mounting

Ceiling mountable

Dimensions & Weight

Width

470,9 cm

Depth

27,8 cm

Height

150 cm

Miscellaneous

Max Load Weight

160 kg

Color Category

Black

Description

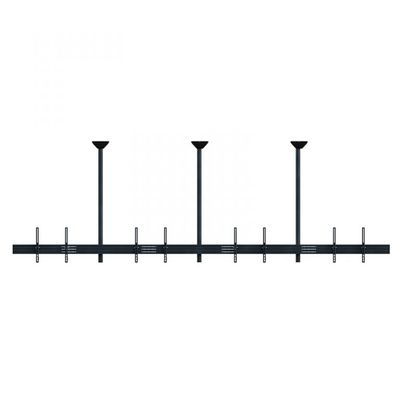

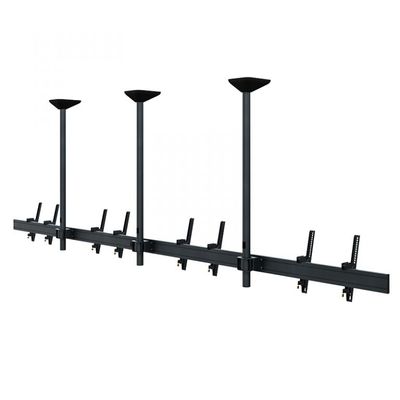

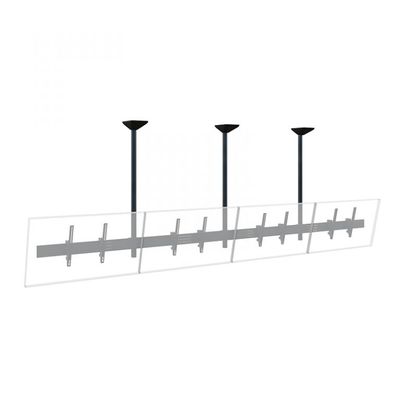

CPS MENUBOARD D4L 46 – 65“

The CPS Menuboard D4L 46 – 65“ is a ceiling mounting system. The system is suitable for four screens between 46 – 65“ | 117 – 165 cm, which are mounted side-by-side.

The screens are mounted in landscape orientation. The VESA mountings can be fitted with a maximum of VESA 600 x 400 mm and can also be tilted from -5° to +15°.

The total width of the system is 4709 mm. This can be shortened if necessary.

Cables are routed via cable clips on the rails.

The surfaces of the components are protected by an impact and scratch resistant powder coating in black.

The maximum load is 40 kg per screen.

The complete solution can be combined and extended with the components of the comPROnents® series without restriction and thus offer further application possibilities.
