Product content
Product content

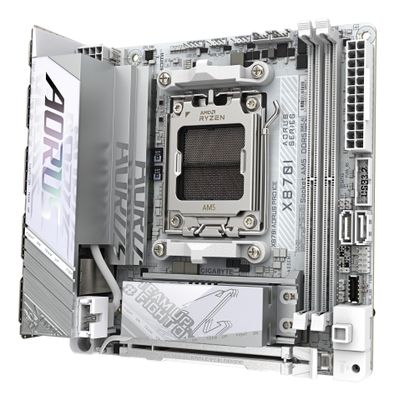

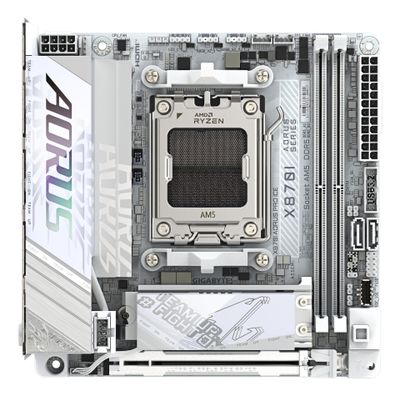

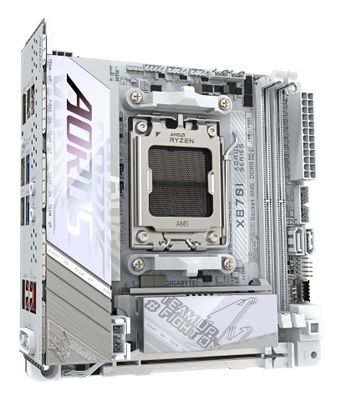

- AORUS X870I PRO ICE
- 2 x Serial ATA cable

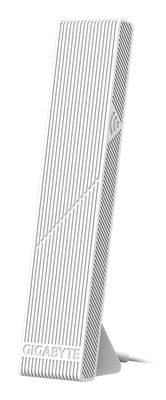

- 1 x M.2 screw, Wi-Fi antenna, 2 x thermal pads for M.2 SSD, 2 x fan extension power cables
/asset/f/a/e/b/faeb7a215a0c7c48d575174c13adbff464b07e3a_439403be0a65b2d17c2d04b36547febd6b39d3dc.jpg)
/asset/f/c/7/a/fc7aaf3c6574435318433b94cf5576281d946e4d_6cd4274ce66b5298ae62978aae25e6d87a3b7bee.jpg)
/asset/5/8/2/4/582486448918466087c13657d14df22fa2c35977_66ff9263948d5db1d0cfbf110d19b0bbabc2872b.jpg)
/asset/f/8/c/e/f8ceea3f06a33fcc0474055d2c62d0126a03a5d2_7ad66f13bb7ab6394de36b9c074240a9046d64dc.jpg)
/asset/d/1/e/8/d1e8e7438162c7d912996a2f9a3dac63c54fbca5_3ae4ecb4c95c1314caf11e39c79304821985a9c9.jpg)
/asset/8/8/b/8/88b8294b75a8c0d9b6a82d57bd238e021aa96f80_c42debe7fbc89c78e2cede96dc68b86953005654.jpg)
/asset/f/a/e/b/faeb7a215a0c7c48d575174c13adbff464b07e3a_439403be0a65b2d17c2d04b36547febd6b39d3dc.jpg)
/asset/f/c/7/a/fc7aaf3c6574435318433b94cf5576281d946e4d_6cd4274ce66b5298ae62978aae25e6d87a3b7bee.jpg)
/asset/5/8/2/4/582486448918466087c13657d14df22fa2c35977_66ff9263948d5db1d0cfbf110d19b0bbabc2872b.jpg)
/asset/f/8/c/e/f8ceea3f06a33fcc0474055d2c62d0126a03a5d2_7ad66f13bb7ab6394de36b9c074240a9046d64dc.jpg)
/asset/d/1/e/8/d1e8e7438162c7d912996a2f9a3dac63c54fbca5_3ae4ecb4c95c1314caf11e39c79304821985a9c9.jpg)
/asset/8/8/b/8/88b8294b75a8c0d9b6a82d57bd238e021aa96f80_c42debe7fbc89c78e2cede96dc68b86953005654.jpg)
Please login to see the price and order.
Article-No.:
258295
Manufacturer-No.:
X870I AORUS PRO ICE
EAN/GTIN:
4719331866112
WEEE Nummer
DE83654239
Technical specifications
Description
Technical specifications
General
Packaged Quantity
1
Processor
Installed Qty
0
Max Supported Qty
1
Mainboard
Form Factor
Mini ITX
Chipset Type
AMD X870
Supported RAM Technology
DDR5 SDRAM
Supported RAM Integrity Check
Non-ECC
Supported RAM Speed
3900 MHz (O.C.), 4100 Mhz (O.C), 2400 MHz, 2200 MHz, 2600 MHz, 2800 MHz (O.C.), 3000 MHz (O.C.), 3100 MHz (O.C.), 3200 MHz (O.C.), 3300 MHz (O.C.), 3400 MHz (O.C.), 3333 MHz (O.C.), 3600 MHz (O.C.), 3500 MHz (O.C.), 3800 MHz (O.C.), 4000 MHz (O.C.), 4200 MHz (O.C.)
Processor Socket
Socket AM5
Power Connectors
24-pin main power connector, 8-pin ATX12V connector
Supported RAM (Registered or Buffered)
Unbuffered
RAM Slots
2 DIMM slots
Interfaces
Internal Interfaces
1 x USB-C 3.2 Gen 2 - header, 2 x USB 2.0 - header, 1 x speaker - header, 2 x USB 3.2 Gen 1 - header
RAM
Features
AMD EXPO technology, Intel Extreme Memory Profiles (XMP), Dual channel memory architecture
Max Supported Size
128 GB
Video Output
Type
Graphics adapter (CPU required)
Audio Output
Type
Sound card
Compliant Standards
High Definition Audio
Audio Codec
Realtek ALC4080
Audio
High Definition Audio (8-channel)
Networking
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.4, IEEE 802.11be (Wi-Fi 7), IEEE 802.11n, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, 2.5 Gigabit Ethernet
Network Controller
Realtek RTL8922AE
Network
2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4
Expansion Slots
Expansion Slots
1 x CPU, 1 x PCIe 4.0 x4, 1 x PCIe 4.0 x8, 1 x PCIe 5.0 x16, 2 x M.2 socket (2280 M.2 slot), 2 x DIMM 288-pin
Interfaces
Storage Interfaces
PCIe 5.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5, PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5, SATA-600 -connectors: 2 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
Storage
Serial ATA-600 (RAID), M.2 socket
USB / FireWire
USB 3.2 Gen 1, USB 3.2 Gen 2, USB4, USB-C 3.2 Gen2
Storage Ports
2 x SATA-600 (RAID), 2 x M.2
USB / FireWire Ports Configuration (Active)

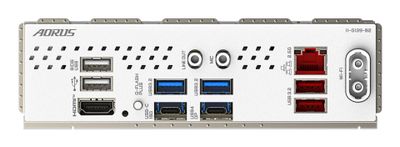

1 x USB4 + 1 x USB-C 3.2 Gen 2 + 2 x USB 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 2 x USB 2.0
USB / FireWire Ports Configuration (Headers)
1 x USB-C 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 2 x USB 2.0
Dimensions & Weight
Width
17 cm
Depth
17 cm
Description
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
- Optimized Connectivity
The motherboard provides a variety of connection options, including USB 4.0, USB-C 3.2 Gen 2, and multiple USB 3.2 and USB 2.0 ports, ensuring compatibility with a wide array of devices. - Advanced Thermal Solutions
M.2 Thermal Guard and thermal armor help maintain optimal temperatures, allowing components to perform efficiently and extend their lifespan. - High-Definition Audio
Integrated Realtek ALC4080 audio codec delivers high definition audio output with support for 8-channel audio, enhancing the overall multimedia experience. - Versatile Expansion Options
Includes multiple expansion slots such as PCIe 5.0 x16 and M.2 sockets, providing flexibility for future upgrades and expansions. - Robust Build Quality
Designed with a 6 layer PCB and ultra-durable PCIe Armor, this motherboard ensures durability and stability even under high-performance conditions.
