Product content
Product content
- Gigabyte B860M GAMING WIFI6
- 2 x Serial ATA cable
- Wi-Fi antenna, computer case screws, M.2 SSD thick/thin rubber pad
- Software
/asset/b/f/5/1/bf51e7a26e8125fa4384ecc7de20a5ac5613e55d_B860M_GAMING_WIFI6_01.png)
/asset/5/9/d/d/59dd3640b032416ebb7f35ffe3b14334380e38b6_B860M_GAMING_WIFI6_02.png)
/asset/a/5/a/e/a5aeb9bef8b78f76bcba651cefc73296ef006511_B860M_GAMING_WIFI6_03.png)
/asset/4/c/9/0/4c90df8f793b1cf2fcddae0f20157e6dbbb0d227_B860M_GAMING_WIFI6_04.png)
/asset/b/f/5/1/bf51e7a26e8125fa4384ecc7de20a5ac5613e55d_B860M_GAMING_WIFI6_01.png)
/asset/5/9/d/d/59dd3640b032416ebb7f35ffe3b14334380e38b6_B860M_GAMING_WIFI6_02.png)
/asset/a/5/a/e/a5aeb9bef8b78f76bcba651cefc73296ef006511_B860M_GAMING_WIFI6_03.png)
/asset/4/c/9/0/4c90df8f793b1cf2fcddae0f20157e6dbbb0d227_B860M_GAMING_WIFI6_04.png)
Please login to see the price and order.
Article-No.:
276789
Manufacturer-No.:
B860M GAMING WIFI6
EAN/GTIN:
4719331866891
WEEE Nummer
DE83654239
Technical specifications
Description
Technical specifications
General
Packaged Quantity
1
Processor
Installed Qty
0
Max Supported Qty
1
Mainboard
Form Factor
Micro ATX
Chipset Type
Intel B860
Supported RAM Technology
DDR5 SDRAM
Supported RAM Integrity Check
Non-ECC, ECC (operate in non-ECC mode)
Supported RAM Speed
5600 MT/s, 8000 MT/s (O.C.), 8200 MT/s (O.C.), 7000 MT/s (O.C.), 6800 MT/s (O.C.), 6400 MT/s, 8400 MT/s (O.C.), 6600 MT/s (O.C.), 7400 MT/s (O.C.), 7600 MT/s (O.C.), 7800 MT/s (O.C.), 7900 MT/s (O.C.), 7950 MT/s (O.C.), 8266 MT/s (O.C.), 8600 MT/s (O.C.), 8800 MT/s (O.C.), 9066 MT/s (O.C.)
Processor Socket
LGA1851 Socket
Power Connectors
24-pin main power connector, 8-pin ATX12V connector
Supported RAM (Registered or Buffered)
Unbuffered
RAM Slots
2 DIMM slots
Interfaces
Internal Interfaces
1 x USB-C 3.2 Gen 1 - header, 1 x audio - header, 1 x serial - header, 4 x USB 2.0 - header, 1 x SPDIF out - header, 2 x USB 3.2 Gen 1 - header, 1 x SPI - header
RAM
Features
Intel Extreme Memory Profiles (XMP), Supported ECC modules operate in non-ECC mode
Max Supported Size
128 GB
Video Output
Type
Graphics adapter (CPU required)
Audio Output
Type
Sound card
Compliant Standards
High Definition Audio
Audio
High Definition Audio (8-channel)
Networking
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11n, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, 2.5 Gigabit Ethernet
Network Controller
Realtek RTL8851BE
Network
802.11a/b/g/n/ac/ax, Bluetooth 5.3
Bluetooth
Expansion Slots
Expansion Slots
1 x CPU, 2 x M.2 socket (2280 M.2 Key M slot), 1 x PCIe 5.0 x16, 2 x DIMM 288-pin, 1 x PCIe 4.0 x16
Interfaces
Storage Interfaces
PCIe 5.0 -connectors: 1 x M.2, SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5, PCIe 4.0 -connectors: 1 x M.2
Storage
Serial ATA-600 (RAID), M.2 socket
USB / FireWire
USB 3.2 Gen 1
Storage Ports
4 x SATA-600 (RAID), 2 x M.2
USB / FireWire Ports Configuration (Active)
3 x USB 3.2 Gen 1 + 3 x USB 2.0
USB / FireWire Ports Configuration (Headers)
1 x USB-C 3.2 Gen 1 + 2 x USB 3.2 Gen 1 + 4 USB 2.0
Software
Software Included
GIGABYTE Control Center, LAN manager, Norton Internet Security (OEM Version), HWiNFO
Dimensions & Weight
Width
24,4 cm
Depth
22,5 cm
Description

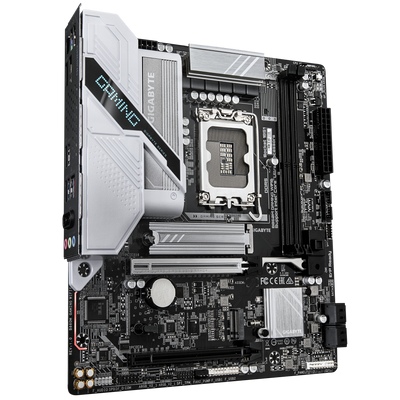

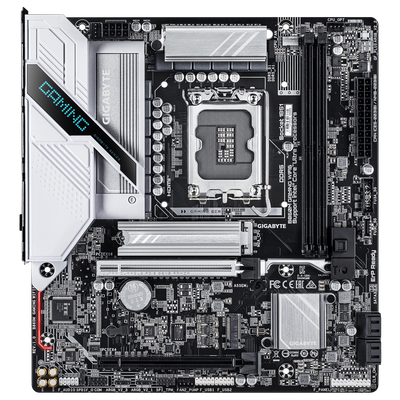

The GIGABYTE B860M GAMING WIFI6 motherboard is engineered for gamers and high-performance tasks, offering a robust platform to build upon. Designed with a micro ATX form factor, this motherboard supports Intel Core Ultra processors, providing flexibility and power for any gaming setup. Its support for DDR5 SDRAM and high RAM speeds up to 9066 MT/s (O.C.) ensures that the system can handle demanding applications with ease.
Equipped with advanced connectivity options, the B860M features multiple USB ports including USB 3.2 Gen 1 and USB-C, as well as LAN capabilities with 2.5 Gigabit Ethernet. High-definition audio output and an array of expansion slots including PCIe 5.0 ensure that this motherboard can cater to a variety of components and peripherals. With features like RGB FUSION for customizable lighting and GIGABYTE Smart Fan 6 for optimal cooling, this motherboard offers everything needed for a dependable and visually appealing computing experience.
Equipped with advanced connectivity options, the B860M features multiple USB ports including USB 3.2 Gen 1 and USB-C, as well as LAN capabilities with 2.5 Gigabit Ethernet. High-definition audio output and an array of expansion slots including PCIe 5.0 ensure that this motherboard can cater to a variety of components and peripherals. With features like RGB FUSION for customizable lighting and GIGABYTE Smart Fan 6 for optimal cooling, this motherboard offers everything needed for a dependable and visually appealing computing experience.
- Versatile connectivity

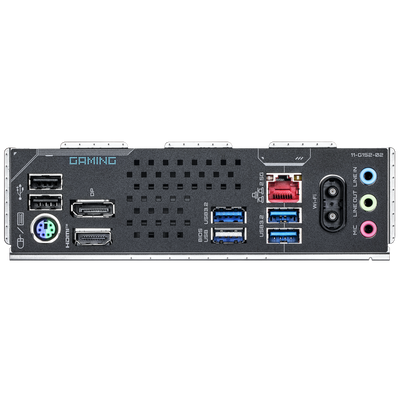

The GIGABYTE B860M GAMING WIFI6 motherboard includes a range of connectivity options, featuring 3 x USB 3.2 Gen 1 and USB-C ports for fast data transfer as well as HDMI and DisplayPort outputs for flexible video display choices. - High-performance RAM support
With support for DDR5 SDRAM and speeds ranging from 5600 MT/s to 9066 MT/s overclock, this motherboard allows for extensive memory bandwidth to enhance gaming and content creation experiences. - Robust cooling solutions
The motherboard features GIGABYTE Smart Fan 6 technology, which offers comprehensive fan control and monitoring capabilities, ensuring the system stays cool during intense gaming sessions and high workloads. - Expandable storage options
Equipped with multiple storage interfaces including 4 x SATA-600 ports and 2 x M.2 sockets, the B860M GAMING WIFI6 allows for extensive storage scalability, supporting RAID configurations for data redundancy. - Enhanced durability
The motherboard is designed with ultra-durable hardware features, including a 6 Layer PCB, debug LED, and a PCIe EZ Latch for stable and reliable performance during demanding tasks.
