Product content
Product content
- Gigabyte B860M EAGLE V2
- 2 x Serial ATA cable
- Wi-Fi antenna, computer case screws, M.2 SSD thick/thin rubber pad
- Software
/asset/0/6/3/5/06356f710cc512013bf106a52707f4eaf4804853_B860M_EAGLE_V2_01.png)
/asset/5/a/5/4/5a54d17e622f3f4e3472071c4edf7a967cd998ad_B860M_EAGLE_V2_02.png)
/asset/d/d/2/e/dd2e4259637e0088b387ec0bde8256fc99f7f1a8_B860M_EAGLE_V2_03.png)
/asset/b/7/7/e/b77e54ee3805e522e3aa35365e37be47b96f542a_B860M_EAGLE_V2_04.png)
/asset/0/6/3/5/06356f710cc512013bf106a52707f4eaf4804853_B860M_EAGLE_V2_01.png)
/asset/5/a/5/4/5a54d17e622f3f4e3472071c4edf7a967cd998ad_B860M_EAGLE_V2_02.png)
/asset/d/d/2/e/dd2e4259637e0088b387ec0bde8256fc99f7f1a8_B860M_EAGLE_V2_03.png)
/asset/b/7/7/e/b77e54ee3805e522e3aa35365e37be47b96f542a_B860M_EAGLE_V2_04.png)
Please login to see the price and order.
Article-No.:
274246
Manufacturer-No.:
B860M EAGLE V2
EAN/GTIN:
4719331869656
WEEE Nummer
DE83654239
Technical specifications
Description
Technical specifications
General
Packaged Quantity
1
Processor
Installed Qty
0
Max Supported Qty
1
Mainboard
Form Factor
Micro ATX
Chipset Type
Intel B860
Supported RAM Technology
DDR5 SDRAM
Supported RAM Integrity Check
Non-ECC, ECC (operate in non-ECC mode)
Supported RAM Speed
3200 MHz, 3900 MHz (O.C.), 4100 Mhz (O.C), 3950 MHz (O.C.), 3975 MHz (O.C.), 2800 MHz, 3300 MHz (O.C.), 3400 MHz (O.C.), 3600 MHz (O.C.), 3500 MHz (O.C.), 3800 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4400 MHz (O.C.), 4300 MHz (O.C.), 4200 MHz (O.C.), 3700 MHz (O.C.), 4533 MHz (O.C.)
Processor Socket
LGA1851 Socket
Power Connectors
24-pin main power connector, 8-pin ATX12V connector
RAM Slots
2 DIMM slots
Interfaces
Internal Interfaces
USB-C 3.2 Gen 1 - header, 1 x audio - header, 4 x USB 2.0 - header, 1 x SPDIF out - header, 2 x USB 3.2 Gen 1 - header, 1 x SPI - header
RAM
Features
Intel Extreme Memory Profiles (XMP), Dual channel memory architecture, Supported ECC modules operate in non-ECC mode
Max Supported Size
128 GB
Video Output
Type
Graphics adapter (CPU required)
Audio Output
Type
Sound card
Compliant Standards
High Definition Audio
Audio
High Definition Audio (8-channel)
Networking
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet
Network
2.5 Gigabit Ethernet
Expansion Slots
Expansion Slots
1 x CPU, 2 x M.2 socket (2280 M.2 Key M slot), 1 x PCIe 5.0 x16, 2 x DIMM 288-pin, 1 x PCIe 4.0 x16
Interfaces
Storage Interfaces
PCIe 5.0 -connectors: 1 x M.2, SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5, PCIe 4.0 -connectors: 1 x M.2
Storage
Serial ATA-600 (RAID), M.2 socket
USB / FireWire
USB 3.2 Gen 1, USB-C 3.2 Gen 1
Storage Ports
4 x SATA-600 (RAID), 2 x M.2
USB / FireWire Ports Configuration (Active)
3 x USB 3.2 Gen 1 + 3 x USB 2.0
USB / FireWire Ports Configuration (Headers)
1 x USB-C 3.2 Gen 1 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0
Software
Software Included
GIGABYTE Control Center, Norton Internet Security (OEM Version), Realtek Gaming LAN Bandwidth Control
Dimensions & Weight
Width
24,4 cm
Depth
22,5 cm
Description

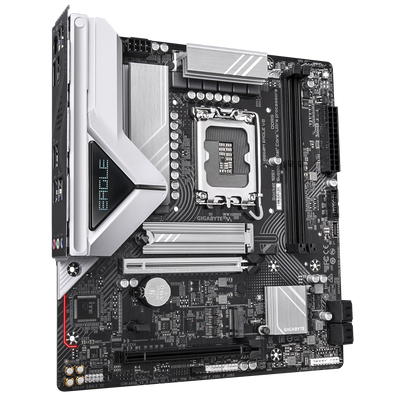

The GIGABYTE B860M EAGLE V2 motherboard is designed for performance and versatility. This micro ATX motherboard features an Intel B860 chipset and supports Intel Core Ultra processors from Series 2, allowing for a powerful computing experience. It supports dual-channel DDR5 SDRAM with RAM speeds of up to 4400 MHz overclocked, satisfying the demands of gamers and creators alike. Equipped with multiple expansion slots, this motherboard includes M.2 slots and PCIe 4.0 and 5.0 interfaces, enabling fast data transfer and expansive storage options. The connectivity options also include USB 3.2 Gen 1, HDMI, DisplayPort, and 2.5 Gigabit Ethernet for reliable networking. Combined with hardware features like RGB FUSION and M.2 Thermal Guard, the GIGABYTE B860M EAGLE V2 is a foundation for a robust and visually appealing PC build.
- Robust connectivity options
This motherboard provides a variety of connectivity options including USB 2.0, USB 3.2 Gen 1, HDMI, DisplayPort, and 2.5 Gigabit Ethernet, ensuring seamless integration with multiple devices. - High performance support
With compatibility for Intel Core Ultra processors and dual-channel memory architecture supporting up to 4400 MHz overclocking, this motherboard is designed for demanding applications and intense gaming sessions. - Enhanced graphics capabilities
Featuring a graphics adapter slot that requires a CPU, the B860M EAGLE V2 supports high-definition audio and the ability to connect advanced displays, providing a visually engaging experience. - Advanced thermal management
The design includes M.2 Thermal Guard and fan speed detection features to maintain optimal temperatures and performance during heavy loads, ensuring system reliability. - User-friendly design
This motherboard incorporates a DIY-friendly design with easy installation features and Q-Flash for quick BIOS updates, catering to enthusiasts and first-time builders.
