- Gigabyte B850M EAGLE WIFI6E
- Software
/asset/1/5/9/1/15912180188d1faa27a6d87866b934f098342a48_276175.jpg)
/asset/6/f/b/8/6fb84689735cc9a84845a20cb762b2e8afd35def_276175_2.jpg)
/asset/8/3/f/d/83fdddfcf20a5248e7c8b8c0df0b007afdb4fdd2_276175_3.jpg)
/asset/1/b/0/0/1b00f4d3320d9f892b9c2ba8c538ed68cdada327_276175_4.jpg)
/asset/1/5/9/1/15912180188d1faa27a6d87866b934f098342a48_276175.jpg)
/asset/6/f/b/8/6fb84689735cc9a84845a20cb762b2e8afd35def_276175_2.jpg)
/asset/8/3/f/d/83fdddfcf20a5248e7c8b8c0df0b007afdb4fdd2_276175_3.jpg)
/asset/1/b/0/0/1b00f4d3320d9f892b9c2ba8c538ed68cdada327_276175_4.jpg)
Please login to see the price and order.
Article-No.:
276175
Manufacturer-No.:
B850M EAGLE WF6E
EAN/GTIN:
4719331871826
WEEE Nummer
DE74106091
Technical specifications
Description
Technical specifications
General
Packaged Quantity
1
Processor
Installed Qty
0
Max Supported Qty
1
Mainboard
Form Factor
Micro ATX
Compatible Processors
Ryzen
Chipset Type
AMD B850
Supported RAM Technology
DDR5 SDRAM
Supported RAM Integrity Check
Non-ECC, ECC (operate in non-ECC mode)
Supported RAM Speed
7200 MT/s (O.C.), 4800 MT/s, 8000 MT/s (O.C.), 8200 MT/s (O.C.), 7000 MT/s (O.C.), 6400 MT/s (O.C.), 6800 MT/s (O.C.), 4400 MT/s, 5200 MT/s, 5600 MT/s (O.C.), 5800 MT/s (O.C.), 6000 MT/s (O.C.), 6200 MT/s (O.C.), 6600 MT/s (O.C.), 7400 MT/s (O.C.), 7600 MT/s (O.C.), 7800 MT/s (O.C.), 7900 MT/s (O.C.), 7950 MT/s (O.C.)
Processor Socket
Socket AM5
Power Connectors
24-pin main power connector, 8-pin ATX12V connector
Supported RAM (Registered or Buffered)
Unbuffered
RAM Slots
4 DIMM slots
Interfaces
Internal Interfaces
1 x USB-C 3.2 Gen 2 - header, 1 x audio - header, 4 x USB 2.0 - header, 2 x USB 3.2 Gen 1 - header, 1 x SPI - header
RAM
Features
AMD EXPO technology, Dual channel memory architecture, Supported ECC modules operate in non-ECC mode
Max Supported Size
256 GB
Video Output
Type
Graphics adapter (CPU required)
Audio Output
Type
Sound card
Compliant Standards
High Definition Audio
Audio
High Definition Audio (8-channel)
Networking
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet, Bluetooth 5.3, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11n, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, 2.5 Gigabit Ethernet
Network Controller
Realtek RTL8852CE
Network
2.5 Gigabit Ethernet, Bluetooth 5.3, 802.11a/b/g/n/ac/ax (Wi-Fi 6E)
Bluetooth
Expansion Slots
Expansion Slots
1 x CPU, 1 x PCIe 5.0 x16, 1 x M.2 socket (2280/22110 M.2 Key M slot), 1 x M.2 socket (2280/2580/22110/25110 M.2 Key M slot), 4 x DIMM 288-pin, 1 x PCIe 3.0 x16 (x4 mode)
Interfaces
Storage Interfaces
PCIe 5.0 -connectors: 1 x M.2, SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5, PCIe 4.0 -connectors: 1 x M.2
Storage
Serial ATA-600 (RAID), M.2 socket
USB / FireWire
USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen2
Storage Ports
4 x SATA-600 (RAID), 2 x M.2
USB / FireWire Ports Configuration (Active)
1 x USB-C 3.2 Gen 2 + 1 x USB 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0
USB / FireWire Ports Configuration (Headers)
1 x USB-C 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0
Software
Software Included
GIGABYTE Control Center, Norton Internet Security (OEM Version), Realtek Gaming LAN Bandwidth Control
Dimensions & Weight
Width
24,4 cm
Depth
24,4 cm
Description

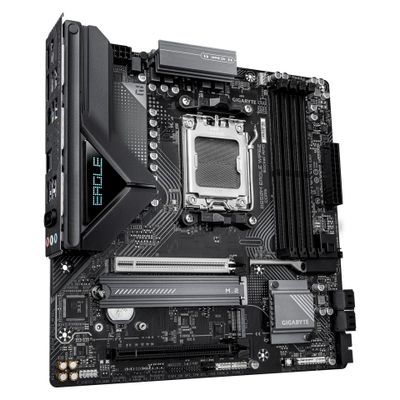

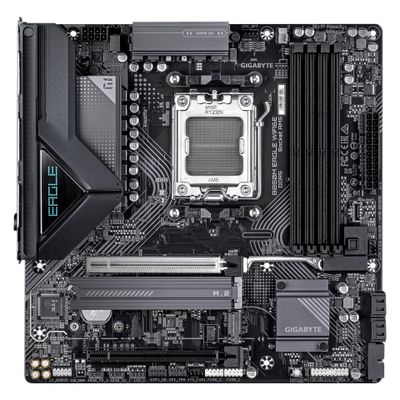

The GIGABYTE B850M EAGLE WIFI6E motherboard offers a platform for building powerful PCs with features. It supports the AMD B850 chipset and is compatible with Ryzen 7000, 8000, and 9000 Series processors, ensuring versatility for various computing needs. Designed in a micro ATX form factor, this motherboard provides an efficient layout that can fit into smaller cases while offering connectivity options to enhance user experience.
With four DIMM slots supporting DDR5 SDRAM, the motherboard allows for high-speed memory configurations up to 7950 MT/s, catering to computing tasks. It features an array of I/O ports, including USB 3.2 Gen 2, USB-C, HDMI, and DisplayPort, enabling seamless connectivity with devices. Additionally, the incorporation of high definition audio and thermal management features ensures that the system runs smoothly under demanding conditions.
With four DIMM slots supporting DDR5 SDRAM, the motherboard allows for high-speed memory configurations up to 7950 MT/s, catering to computing tasks. It features an array of I/O ports, including USB 3.2 Gen 2, USB-C, HDMI, and DisplayPort, enabling seamless connectivity with devices. Additionally, the incorporation of high definition audio and thermal management features ensures that the system runs smoothly under demanding conditions.
- Robust connectivity options

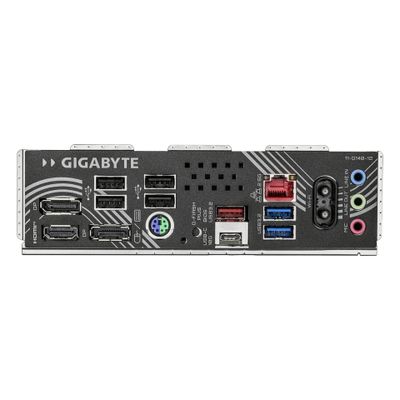

The motherboard features a wide range of ports, including 2.5 Gigabit Ethernet for wired networking, USB 3.2 Gen 2, USB-C 3.2 Gen 2 for connectivity, and multiple audio outputs ensuring compatibility with various peripherals. - Advanced thermal management
Equipped with M.2 Thermal Guard and hardware monitoring features, including temperature detection and fan speed detection, this motherboard helps maintain performance and system stability during intensive tasks. - Efficient power design
The GIGABYTE B850M EAGLE WIFI6E utilizes an 8+2+2 phase power design and premium power chokes to provide stable power delivery, ensuring reliability for demanding applications and gaming. - User-friendly features
Features like EZ Debug LED and Q-Flash Plus button aid in troubleshooting and firmware updates, enhancing the overall experience when setting up or maintaining the system. - Support for high-speed memory
With support for dual-channel memory architecture and speeds up to 7950 MT/s, the motherboard maximizes RAM performance, benefiting applications that require substantial memory bandwidth.
