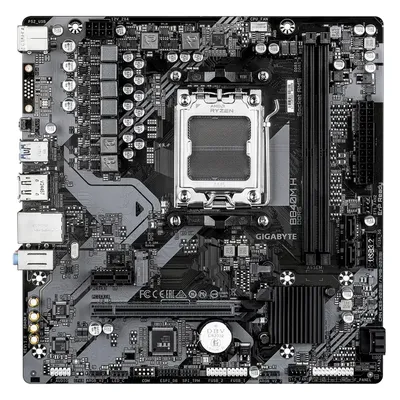

GIGABYTE Mainboard B840M H - Micro ATX - Socket AM5 - AMD B840

Article-No.:
276176
Manufacturer-No.:
B840M H
EAN/GTIN:
4719331877880
WEEE Nummer
DE74106091
Technical specifications

General

Packaged Quantity
1

Processor

Installed Qty
0
Max Supported Qty
1

Mainboard

Form Factor
Micro ATX
Compatible Processors
Ryzen
Chipset Type
AMD B840
Supported RAM Technology
DDR5 SDRAM
Supported RAM Integrity Check
Non-ECC
Supported RAM Speed
7200 MT/s (O.C.), 4800 MT/s, 7000 MT/s (O.C.), 6400 MT/s (O.C.), 6800 MT/s (O.C.), 4400 MT/s, 5200 MT/s, 5600 MT/s (O.C.), 6000 MT/s (O.C.), 6200 MT/s (O.C.), 6600 MT/s (O.C.), 6666 MT/s (O.C.)
Processor Socket
Socket AM5
Power Connectors
24-pin main power connector, 8-pin ATX12V connector
Supported RAM (Registered or Buffered)
Unbuffered
RAM Slots
2 DIMM slots

Interfaces

Internal Interfaces
1 x audio - header, 4 x USB 2.0 - header, 2 x USB 3.2 Gen 1 - header, 1 x SPI - header

RAM

Features
AMD EXPO technology, Intel Extreme Memory Profiles (XMP), Dual channel memory architecture
Max Supported Size
128 GB

Video Output

Type
Graphics adapter (CPU required)

Audio Output

Type
Sound card
Compliant Standards
High Definition Audio
Audio
High Definition Audio (8-channel)

Networking

Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet
Network
Gigabit Ethernet

Expansion Slots

Expansion Slots
1 x CPU, 1 x M.2 socket (2280/2580 M.2 Key M slot), 2 x DIMM 288-pin, 1 x PCIe 3.0 x1, 1 x PCIe 4.0 x16

Interfaces

Storage Interfaces
PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10, SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10
Storage
Serial ATA-600 (RAID), M.2 socket
USB / FireWire
USB 3.2 Gen 1
Storage Ports
4 x SATA-600 (RAID), 1 x M.2
USB / FireWire Ports Configuration (Active)
2 x USB 3.2 Gen 1 + 4 x USB 2.0
USB / FireWire Ports Configuration (Headers)
2 x USB 3.2 Gen 1 + 4 x USB 2.0

Software

Software Included
GIGABYTE Control Center, LAN manager, Norton Internet Security (OEM Version)

Dimensions & Weight

Width
23 cm
Depth
22,5 cm
Description
The GIGABYTE B840M H motherboard is designed to offer robust performance with its micro ATX form factor and compatibility with Ryzen processors from the 7000 to 9000 Series. It supports DDR5 SDRAM memory technology, allowing for speeds of up to 7200 MT/s when overclocked, ensuring that users can enjoy enhanced multitasking and gaming. The motherboard features dual-channel memory architecture and a variety of storage options, including four SATA-600 ports and one M.2 socket, making it suitable for building a powerful and efficient system.
In addition to its specifications, the GIGABYTE B840M H motherboard comes equipped with features for durability and ease of use. It includes hardware monitoring capabilities to track system temperatures and fan speeds, enhancing the longevity of components. The RGB FUSION feature allows for customizable lighting styles, while the DIY-friendly design simplifies the building process, making it accessible for enthusiasts and newcomers. With high definition audio output and multiple USB ports, this motherboard ensures a rich audio and connectivity experience.
  • Compatibility with processors
    The GIGABYTE B840M H supports a wide range of Ryzen processors, ensuring flexibility for various builds. This feature allows users to select their preferred processor from the Ryzen 7000, 8000, or 9000 series without concern over compatibility.
  • Enhanced memory support
    This motherboard supports DDR5 SDRAM and features a dual-channel memory architecture, maximizing performance levels. It enables RAM speeds ranging from 4400 MT/s to 7200 MT/s when overclocked, providing the performance needed for demanding applications.
  • Versatile storage options
    Equipped with four SATA-600 ports and an M.2 socket, the GIGABYTE B840M H allows for significant storage configurations. This versatility means that users can easily expand their storage according to their needs, whether for fast SSDs or larger HDDs.
  • Robust hardware monitoring
    The motherboard includes a comprehensive hardware monitoring system designed to track key system metrics such as temperatures and fan speeds. This feature helps to maintain optimal performance and ensures the longevity of the system components.
  • Customizable lighting options
    The RGB FUSION feature allows users to personalize the lighting of their builds, creating an aesthetically pleasing experience. Coupled with a DIY-friendly design, this makes for an enjoyable building process while also allowing for creativity in case modding.
Product content

Product content

  • Gigabyte B840M H
  • Software
