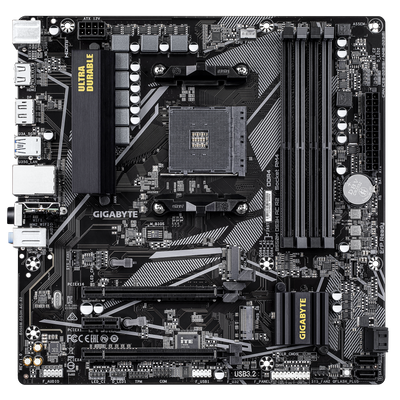

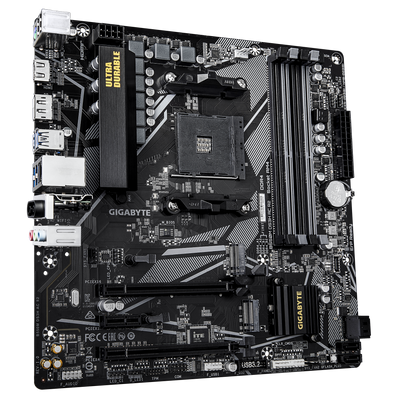

GIGABYTE Mainboard B550M DS3H AC R2 - Micro ATX - Socket AM4 - AMD B550

Article-No.:
276421
Manufacturer-No.:
B550M DS3H AC R2
EAN/GTIN:
4719331869908
WEEE Nummer
DE74106091
Technical specifications

General

Packaged Quantity
1

Processor

Installed Qty
0
Max Supported Qty
1

Mainboard

Form Factor
Micro ATX
Compatible Processors
Ryzen
Chipset Type
AMD B550
Supported RAM Technology
DDR4 SDRAM
Supported RAM Integrity Check
Non-ECC, ECC (operate in non-ECC mode)
Supported RAM Speed
1334 MHz, 1467 MHz, 1067 MHz, 1600 MHz, 1200 MHz
Processor Socket
Socket AM4
Power Connectors
24-pin main power connector, 8-pin ATX12V connector
Supported RAM (Registered or Buffered)
Unbuffered
RAM Slots
4 DIMM slots

Interfaces

Internal Interfaces
1 x USB-C 3.2 Gen 1 - header, 1 x audio - header, 1 x serial - header, 2 x USB 2.0 - header, 2 x USB 3.2 Gen 1 - header

RAM

Features
Dual channel memory architecture, Supported ECC modules operate in non-ECC mode
Max Supported Size
128 GB

Video Output

Type
Graphics adapter (CPU required)

Audio Output

Type
Sound card
Compliant Standards
High Definition Audio
Audio Codec
Realtek ALC1220
Audio
High Definition Audio (8-channel)

Networking

Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, Bluetooth 5.0
Network Controller
Realtek RTL8821CE
Network
Bluetooth 5.0, Gigabit Ethernet, 802.11a/b/g/n/ac
Bluetooth

Expansion Slots

Expansion Slots
1 x CPU, 1 x PCIe 4.0 x16 (PCIe 4.0 x16 mode (with 3rd Generation Ryzen CPU); PCIe 3.0 x16 mode (with 3nd Generation Ryzen with Radeon Graphics CPU)), 4 x DIMM 288-pin, 1 x PCIe 3.0 x1, 1 x PCIe 3.0 x16 (x4 mode)

Interfaces

Storage Interfaces
SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10, SATA-600 / PCIe 3.0 -connectors: 1 x M.2, PCIe 4.0 -connectors: 1 x M.2
Storage
Serial ATA-600 (RAID), M.2 socket
USB / FireWire
USB 3.2 Gen 1
Storage Ports
4 x SATA-600 (RAID), 2 x M.2
USB / FireWire Ports Configuration (Active)
4 x USB 3.2 Gen 1 + 2 x USB 2.0
USB / FireWire Ports Configuration (Headers)
1 x USB-C 3.2 Gen 1 + 2 x USB 3.2 Gen 1 + 2 x USB 2.0

Software

Software Included
EasyTune, Xpress Install, GIGABYTE App Center, Norton Internet Security, GIGABYTE Fast Boot, @BIOS, GIGABYTE Smart Backup, Realtek Gaming LAN Bandwidth Control

Dimensions & Weight

Width
24,4 cm
Depth
24,4 cm
Description
The GIGABYTE B550M DS3H AC R2 motherboard is designed for the Ryzen processor platform, offering a foundation for building high-performance systems. This micro ATX motherboard features four DIMM slots that support DDR4 SDRAM, ensuring fast and efficient memory operation with speeds up to 3200 MHz. With advanced connectivity options including multiple USB ports, HDMI, and Gigabit Ethernet, this motherboard provides versatile performance for gaming, content creation, and everyday tasks. Whether building a budget-friendly rig or a capable workstation, the B550M DS3H AC R2 enhances both productivity and entertainment with its comprehensive feature set. Additionally, the audio capabilities, powered by the Realtek ALC1220 codec, support high-definition audio, ideal for immersive sound experiences. The onboard network controller ensures stable and reliable connections, making it a suitable choice for online gaming and streaming. With RAID support for data security and a streamlined BIOS setup, the B550M DS3H AC R2 equips users with everything needed for an optimized computing environment.

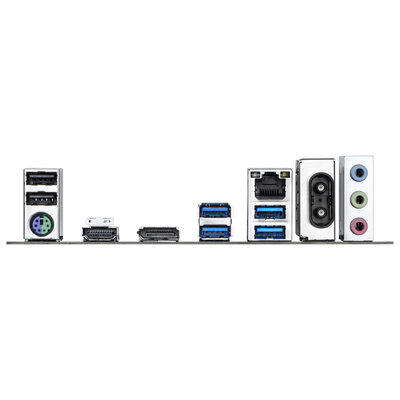

  • Versatile connectivity options
    The motherboard includes a variety of interfaces such as HDMI, USB 3.2 Gen 1, and audio ports, enhancing the usability for various devices and peripherals.
  • Reliable audio performance
    Equipped with high-definition audio capabilities, the Realtek ALC1220 codec ensures crystal clear sound quality for an immersive audio experience.
  • Enhanced networking capabilities
    Featuring Gigabit Ethernet and Wi-Fi 5, the motherboard offers quick and reliable Internet access, suitable for both gaming and streaming applications.
  • Efficient thermal management
    With hardware monitoring features that track CPU and chassis temperatures, users can maintain optimal performance and avoid overheating issues.
  • Flexible storage solutions
    Supports both Serial ATA and M.2 interfaces, allowing for multiple storage configurations and fast data access through RAID options.
Product content

Product content

  • Gigabyte B550M DS3H AC R2
  • 2 x Serial ATA cable
  • IO shield, Wi-Fi antenna
  • Software
