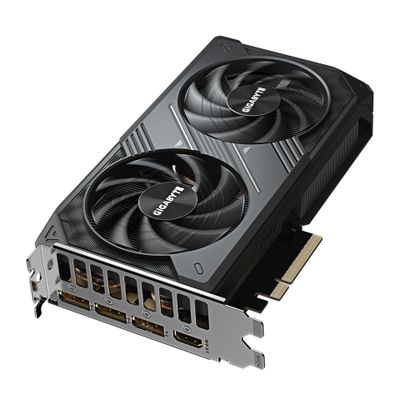

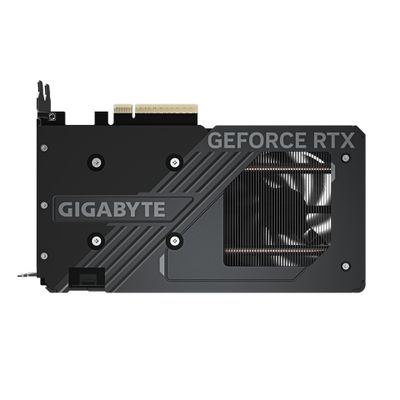

GIGABYTE graphics card RTX 5060 WINDFORCE OC 8G - 8 GB GDDR7 OC

GIGABYTE graphics card RTX 5060 WINDFORCE OC 8G - 8 GB GDDR7 OC_thumb_3

GIGABYTE graphics card RTX 5060 WINDFORCE OC 8G - 8 GB GDDR7 OC_thumb_4

GIGABYTE graphics card RTX 5060 WINDFORCE OC 8G - 8 GB GDDR7 OC_thumb_5

GIGABYTE graphics card RTX 5060 WINDFORCE OC 8G - 8 GB GDDR7 OC_1

GIGABYTE graphics card RTX 5060 WINDFORCE OC 8G - 8 GB GDDR7 OC_2

GIGABYTE graphics card RTX 5060 WINDFORCE OC 8G - 8 GB GDDR7 OC_3

GIGABYTE graphics card RTX 5060 WINDFORCE OC 8G - 8 GB GDDR7 OC_4

GIGABYTE graphics card RTX 5060 WINDFORCE OC 8G - 8 GB GDDR7 OC_5

Article-No.:

276523

Manufacturer-No.:

GV-N5060WF2OC-8GD

EAN/GTIN:

4719331356323

WEEE Nummer

DE74106091

Compare

Print view

Technical specifications

General

Packaged Quantity

Video Output

Interface Type

PCI Express 5.0

Graphics Processor

NVIDIA GeForce RTX 5060

Max External Resolution

7680 x 4320

Max Monitors Supported

API Supported

DirectX 12, OpenGL 4.6

Video Adapter Features

Gigabyte Alternate Spinning, Nvidia Studio, 3D Active Fan, Nvidia Broadcast, Composite copper heat pipes, Screen cooling, NVIDIA DLSS 4, NVIDIA Blackwell GPU architecture, NVIDIA Reflex 2, 4th gen Ray Tracing Cores, 5th gen Tensor Cores, 9th Gen NVIDIA Encoder, NVIDIA Avatar Cloud Engine (ACE), Hawk Fan design, Server-grade thermal conductive gel, NVIDIA Multi Frame Generation, NVIDIA Frame Warp, Ultra Durable VGA, GIGABYTE WINDFORCE cooling design, Dual Fan Design, NVIDIA G-Sync ready

Clock Speed

2512 MHz

Graphics Processor Manufacturer

NVIDIA

Type

Graphics card

CUDA Cores Qty

3840

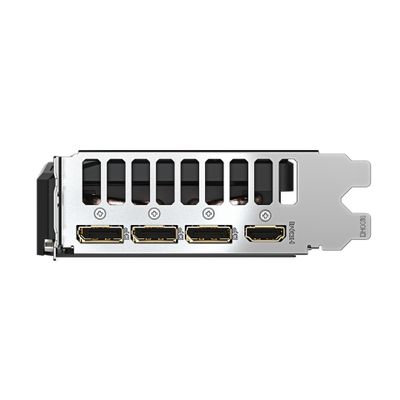

Output Ports (compact list)

HDMI, 3 x DisplayPort

Supported Video Signal

HDMI, DisplayPort

Video Memory

Technology

GDDR7 SDRAM

Bus Width

128-bit

Installed Size

8 GB

Interfaces

Interfaces Details

HDMI, 3 x DisplayPort

Software

Type

NVIDIA Studio drivers, Gigabyte Control Center, GeForce Game Ready Drivers

System Requirements

Additional Requirements

8 pin PCI Express power connector

Required Power Supply

450 W

Dimensions & Weight

Width

4 cm

Depth

19,9 cm

Height

11,6 cm

Miscellaneous

Package Type

Retail

Color Category

Black

Description

The GIGABYTE GeForce RTX 5060 WINDFORCE OC 8G graphics card combines performance with cooling technology to elevate gaming and creative experiences. Equipped with a robust NVIDIA GeForce RTX 5060 processor and 8 GB of GDDR7 SDRAM, this graphics card can efficiently handle demanding workloads while ensuring smooth gameplay. The dual fan design and GIGABYTE WINDFORCE cooling solution allows for effective heat dissipation, enhancing longevity and stability during intense gaming sessions.
With support for up to four monitors and a maximum external resolution of 7680 x 4320, users can enjoy a vast workspace or immersive gaming environment. The card's clock speed of 2512 MHz and 3840 CUDA cores ensure that tasks are completed swiftly, while the integrated NVIDIA features like G-Sync, DLSS 4, and ray tracing capabilities bring improved visual fidelity and responsiveness. Designed for gamers and creators, this graphics card is adaptable to various applications, providing a versatile tool for achieving graphic excellence.

Performance
The GIGABYTE GeForce RTX 5060 features an NVIDIA GeForce RTX 5060 processor and 3840 CUDA cores, ensuring high efficiency and rapid processing for both gaming and professional applications.
Cooling system
Equipped with a dual fan design and composite copper heat pipes, this graphics card provides effective heat dissipation, maintaining optimal performance during heavy workloads.
Multi-monitor support
Supports up to four monitors simultaneously, allowing for extensive workspace setups and immersive gaming experiences with a maximum external resolution of 7680 x 4320.
Integrated NVIDIA technologies
Includes features like NVIDIA G-Sync, DLSS 4, and 4th generation Ray Tracing Cores, enhancing the graphics quality and responsiveness for real-time experiences.
Memory capabilities
The installed 8 GB memory with a 128-bit bus width and high-speed of 28 Gbps enables seamless multitasking and performance in graphically intense scenarios.

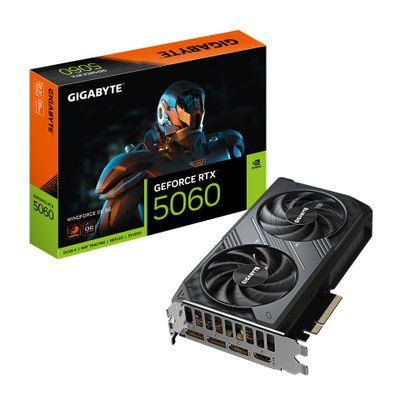

Product content

Gigabyte GeForce RTX 5060 WINDFORCE OC 8G
NVIDIA Studio drivers, Gigabyte Control Center, GeForce Game Ready Drivers
