- Gigabyte B850M FORCE
- Software
/asset/d/5/c/4/d5c4c91fe788894d3b9d531d025711407155eaef_B850M_FORCE_01.png)
/asset/e/9/7/2/e972297a2e942d7885622bb4824c833058d579f1_B850M_FORCE_02.png)
/asset/3/d/9/a/3d9a7f110a834196db81cdbf3fe273f1e36fc520_B850M_FORCE_03.png)
/asset/1/9/8/6/19861b8079ae2d5f461448405cbf95598660f743_B850M_FORCE_04.png)
/asset/d/5/c/4/d5c4c91fe788894d3b9d531d025711407155eaef_B850M_FORCE_01.png)
/asset/e/9/7/2/e972297a2e942d7885622bb4824c833058d579f1_B850M_FORCE_02.png)
/asset/3/d/9/a/3d9a7f110a834196db81cdbf3fe273f1e36fc520_B850M_FORCE_03.png)
/asset/1/9/8/6/19861b8079ae2d5f461448405cbf95598660f743_B850M_FORCE_04.png)
Please login to see the price and order.
Article-No.:
276796
Manufacturer-No.:
B850M FORCE
EAN/GTIN:
4719331874322
WEEE Nummer
DE74106091
Technical specifications
Description
Technical specifications
General
Packaged Quantity
1
Processor
Installed Qty
0
Max Supported Qty
1
Mainboard
Form Factor
Micro ATX
Chipset Type
AMD B850
Supported RAM Technology
DDR5 SDRAM
Supported RAM Integrity Check
Non-ECC, ECC (operate in non-ECC mode)
Supported RAM Speed
9200 MT/s (O.C.), 7200 MT/s (O.C.), 4800 MT/s, 8000 MT/s (O.C.), 8200 MT/s (O.C.), 7000 MT/s (O.C.), 6400 MT/s (O.C.), 6800 MT/s (O.C.), 4400 MT/s, 5200 MT/s, 5600 MT/s (O.C.), 8400 MT/s (O.C.), 5800 MT/s (O.C.), 6000 MT/s (O.C.), 6200 MT/s (O.C.), 6600 MT/s (O.C.), 7600 MT/s (O.C.), 7800 MT/s (O.C.), 8600 MT/s (O.C.), 8800 MT/s (O.C.), 6666 MT/s (O.C.), 9600 MT/s (O.C.)
Processor Socket
Socket AM5
Power Connectors
24-pin main power connector, 8-pin ATX12V connector
Supported RAM (Registered or Buffered)
Unbuffered
RAM Slots
2 DIMM slots
Interfaces
Internal Interfaces
1 x USB-C 3.2 Gen 1 - header, 1 x audio - header, 4 x USB 2.0 - header, 2 x USB 3.2 Gen 1 - header, 1 x SPI - header
RAM
Features
AMD EXPO technology, Dual channel memory architecture, Supported ECC modules operate in non-ECC mode
Max Supported Size
128 GB
Video Output
Type
Graphics adapter (CPU required)
Audio Output
Type
Sound card
Compliant Standards
High Definition Audio
Audio
High Definition Audio (8-channel)
Networking
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet
Network
2.5 Gigabit Ethernet
Expansion Slots
Expansion Slots
1 x CPU, 1 x PCIe 5.0 x16, 3 x M.2 socket (2280 M.2 Key M slot), 2 x DIMM 288-pin, 1 x PCIe 3.0 x4 (x4 mode)
Interfaces
Storage Interfaces
PCIe 4.0 -connectors: 2 x M.2, PCIe 5.0 -connectors: 1 x M.2, SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
Storage
Serial ATA-600 (RAID), M.2 socket
USB / FireWire
USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen 1
Storage Ports
4 x SATA-600 (RAID), 3 x M.2
USB / FireWire Ports Configuration (Active)
1 x USB 3.2 Gen 2 + 1 x USB-C 3.2 Gen 1 + 2 x USB 3.2 Gen 1 + 2 x USB 2.0
USB / FireWire Ports Configuration (Headers)
1 x USB-C 3.2 Gen 1 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0
Software
Software Included
GIGABYTE Control Center, Norton Internet Security (OEM Version), Realtek Gaming LAN Bandwidth Control
Dimensions & Weight
Width
24,4 cm
Depth
24,4 cm
Description

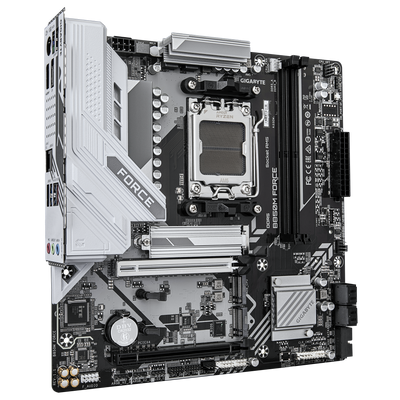

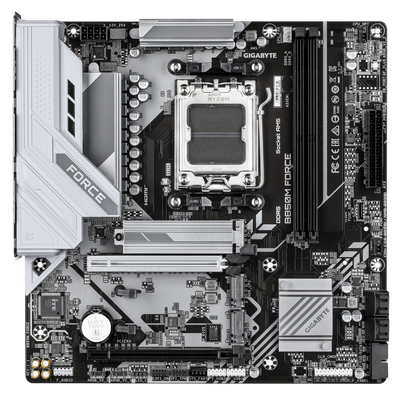

The GIGABYTE B850M FORCE motherboard is built for performance and versatility, making it suitable for gamers and professionals. It features an AMD B850 chipset and is compatible with Ryzen 7000/8000/9000 Series processors. Support for DDR5 SDRAM enables high memory speeds of up to 9600 MT/s, providing the bandwidth needed for demanding applications.
With its micro ATX form factor, this motherboard provides multiple expansion slots for graphics and storage options. Featuring PCIe 5.0 x16 and M.2 slots, users can enjoy high-speed data transfer and storage capabilities. The array of I/O options, including HDMI, DisplayPort, and various USB ports, ensures connectivity. Furthermore, advanced features such as GIGABYTE Smart Fan 6 and M.2 Thermal Guard enhance system cooling and stability during workloads.
With its micro ATX form factor, this motherboard provides multiple expansion slots for graphics and storage options. Featuring PCIe 5.0 x16 and M.2 slots, users can enjoy high-speed data transfer and storage capabilities. The array of I/O options, including HDMI, DisplayPort, and various USB ports, ensures connectivity. Furthermore, advanced features such as GIGABYTE Smart Fan 6 and M.2 Thermal Guard enhance system cooling and stability during workloads.
- High-performance audio support
The motherboard features high-definition audio capabilities with 8-channel output, ensuring immersive sound for gaming and multimedia experiences. - Ample expansion options
Equipped with two PCIe 4.0 and three M.2 slots, the B850M FORCE offers flexibility for upgrading graphics and storage devices. - Robust hardware monitoring
Includes comprehensive hardware monitoring features that keep track of system voltage, fan speeds, and temperatures for proactive management and optimization. - Efficient cooling design
Features like GIGABYTE Smart Fan 6 and M.2 Thermal Guard prevent overheating, ensuring consistent system performance during resource-intensive tasks. - Versatile connectivity options

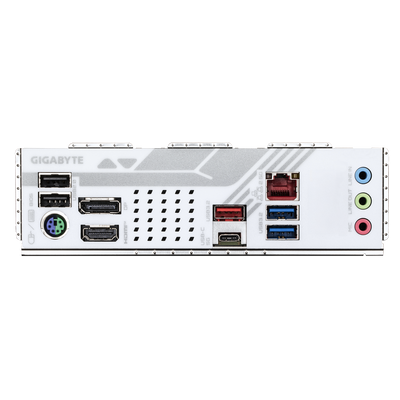

The motherboard offers a wide range of I/O interfaces, including USB 3.2 Gen 2, USB-C, HDMI, and LAN, facilitating connections to various peripherals and networks.
