Product content
Product content

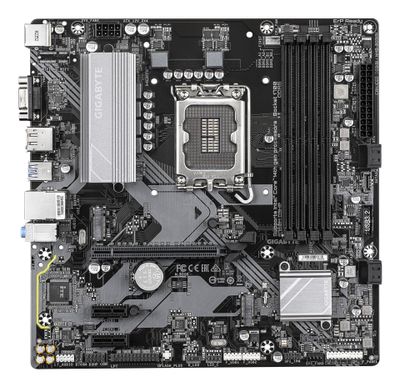

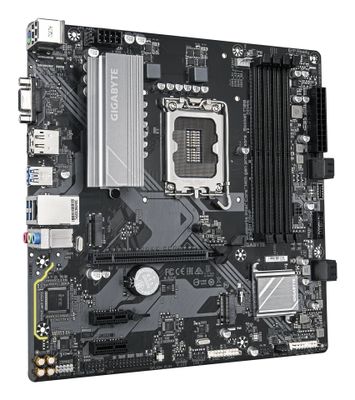

- Gigabyte B760M D3HP
- Software
/asset/4/d/0/c/4d0cc4f085b7d882ed59f7a08012f4ea8bb8118d_7d7196204784037740e918ae1ef9f0491f1521bb.jpg)
/asset/d/e/7/4/de74421456f0b7a615a84562a91993c6c63dfd82_226dc97480fce9ada6ee74c46b6beba09742901c.jpg)
/asset/9/f/7/5/9f7513f6f6a48eb04b72c4a64e31ac02f9784ba6_a3caee8552518af9e20d96d497601c18a443d8ad.jpg)
/asset/1/1/f/5/11f5876ac4a6b0827fdf2b1c8757ae563d3a652c_dff0f6f0c267f1c102b756b37856d43694225be8.jpg)
/asset/4/d/0/c/4d0cc4f085b7d882ed59f7a08012f4ea8bb8118d_7d7196204784037740e918ae1ef9f0491f1521bb.jpg)
/asset/d/e/7/4/de74421456f0b7a615a84562a91993c6c63dfd82_226dc97480fce9ada6ee74c46b6beba09742901c.jpg)
/asset/9/f/7/5/9f7513f6f6a48eb04b72c4a64e31ac02f9784ba6_a3caee8552518af9e20d96d497601c18a443d8ad.jpg)
/asset/1/1/f/5/11f5876ac4a6b0827fdf2b1c8757ae563d3a652c_dff0f6f0c267f1c102b756b37856d43694225be8.jpg)
Please login to see the price and order.
Article-No.:
256076
Manufacturer-No.:
B760M D3HP
EAN/GTIN:
4719331864347
WEEE Nummer
DE83654239
Technical specifications
Description
Technical specifications
General
Packaged Quantity
1
Processor
Installed Qty
0
Max Supported Qty
1
Mainboard
Form Factor
Micro ATX
Chipset Type
Intel B760 Express
Supported RAM Technology
DDR5 SDRAM
Supported RAM Integrity Check
Non-ECC, ECC (operate in non-ECC mode)
Supported RAM Speed
2400 MHz, 2200 MHz, 2800 MHz, 2600 MHz
Processor Socket
LGA1700 Socket
Power Connectors
24-pin main power connector, 8-pin ATX12V connector
Supported RAM (Registered or Buffered)
Unbuffered
RAM Slots
4 DIMM slots
Interfaces
Internal Interfaces
1 x USB-C 3.2 Gen 1 - header, 1 x audio - header, 1 x serial - header, 4 x USB 2.0 - header, 1 x SPDIF out - header, 1 x parallel - header, 2 x USB 3.2 Gen 1 - header, 1 x SPI - header
RAM
Features
Intel Extreme Memory Profiles (XMP), Dual channel memory architecture, Supported ECC modules operate in non-ECC mode
Max Supported Size
256 GB
Video Output
Type
Graphics adapter (CPU required)
Audio Output
Type
Sound card
Compliant Standards
High Definition Audio
Audio
High Definition Audio (8-channel)
Networking
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet
Network
Gigabit Ethernet
Expansion Slots
Expansion Slots
1 x CPU, 2 x M.2 socket (2280 M.2 Key M slot), 4 x DIMM 288-pin, 2 x PCIe 3.0 x1, 1 x PCIe 4.0 x16
Interfaces
Storage Interfaces
PCIe 4.0 -connectors: 2 x M.2, SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
Storage
Serial ATA-600 (RAID), M.2 socket
USB / FireWire
USB 3.2 Gen 1, USB-C 3.2 Gen 1
Storage Ports
4 x SATA-600 (RAID), 2 x M.2
USB / FireWire Ports Configuration (Active)
3 x USB 3.2 Gen 1 + 2 x USB 2.0
USB / FireWire Ports Configuration (Headers)
1 x USB-C 3.2 Gen 1 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0
Software
Software Included
GIGABYTE Control Center, LAN manager, Norton Internet Security (OEM Version)
Dimensions & Weight
Width
24,4 cm
Depth
24,4 cm
Description
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
- Robust connectivity options

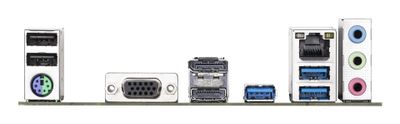

Equipped with 4 x SATA-600 and 2 x M.2 sockets, the motherboard allows for extensive storage capabilities. It offers a range of interface options including HDMI, DisplayPort, and multiple USB ports, ensuring compatibility with various devices and peripherals. - Efficient power design
The 4+1+1 Phase Power Design improves power delivery and stability, supporting high-performance CPUs with reliable power supply to optimize performance during intense operations. - Advanced memory support
Supports dual-channel memory architecture and Intel Extreme Memory Profiles (XMP), allowing for better memory management and improved data transfer rates for enhanced system performance. - Comprehensive hardware monitoring
Integrated hardware monitoring features track system voltage, water cooling flow rate, fan speed, and temperature, helping maintain peak performance with real-time updates. - Customizable aesthetics
With RGB FUSION technology, the motherboard provides customizable lighting effects, allowing users to create a unique look that matches their personal style or gaming setup.
