Please login to see the price and order.
Article-No.:
208852
Manufacturer-No.:
VFY:R2537SC330IN
EAN/GTIN:
4065221942207
WEEE Nummer
DE83654239
Suitable products

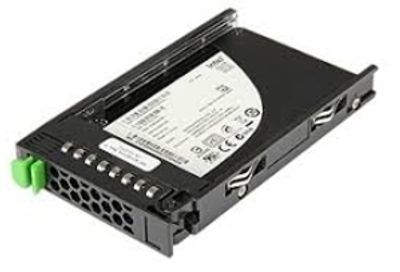

/asset/c/e/8/2/ce82f2b1e98553d134328c40d933b5c0a59ca772_ac66982c80ca38491d3477da27e5e680eebdeefe.jpg "Kioxia SSD PM7 with frame - 1.92 TB - 2.5\" - SAS 24Gb/s - BULK")
Technical specifications
Description
Technical specifications
General
Packaged Quantity
1
System
Type
Server
Embedded Security
Trusted Platform Module (TPM 2.0) Security Chip
Chassis
Form Factor
Rack-mountable
Built-in Devices
8 x fans
Hot-Swap Bays Qty
10
Server Storage Bays
Hot-swap
Server Swappable Drive Interface
SAS
Server Swappable Drive Form Factor
2.5"
Processor
Type
Xeon Silver
Installed Qty
1
Max Supported Qty
2
Manufacturer
Intel
Clock Speed
2 GHz
Processor Number
4410Y
Number of Cores
12-core
Server Scalability
2-way
Max Turbo Speed
3,9 GHz
Mainboard
Chipset Type
Intel C741
RAM
Technology
DDR5 SDRAM
Data Integrity Check
ECC
Features
Registered, Memory scrubbing, Single Device Data Correction (SDDC), Adaptive Double-Device Data Correction (ADDDC), Memory Mirroring, Dual channel memory architecture, Independent Memory Mode
Memory Speed
4000 MHz
Configuration Features
1 x 32 GB
Empty Slots
31
Slots Qty
32
Installed Size
32 GB
Max Supported Size
8 TB
Storage Controller
Interface Type
Serial ATA-600 / SAS 3.0
Storage Controller Name
Fujitsu PRAID EP 3252-8i LP
Hard Drive
Type
No HDD
Second Hard Drive
Type
None
Third Hard Drive
Type
None
Fourth Hard Drive
Type
None
Optical Storage
Drive Type
No optical drive
Second Optical Storage
Type
None
Drive Type
No optical drive
Blank Disk
Type
None
Display
Type
None.
Video Output
Video Interfaces
VGA
Audio Input
Type
None
Printer
Type
None
Networking
Remote Management Controller
Integrated Remote Management Controller (iRMC S6)
Expansion Bays
Bays
1 (total) / 1 (free) x external 5.25" (9.5mm height), 10 (total) / 10 (free) x hot-swap 2.5"
Expansion Slots
Slots
1 PCIe 4.0 x16 - low-profile, 3 PCIe 5.0 x16 - low-profile
Software
Type
iRMC S6 eLCM activation license
Power Device
Type
Power supply - hot-plug
Power Provided
900 watt
Installed Qty
2
Max Supported Qty
2
80 PLUS Certification
80 PLUS Titanium
Dimensions & Weight
Width
43,5 cm
Depth
80,8 cm
Height
4,3 cm
Weight
19,2 kg
Miscellaneous
Height (Rack Units)
1
Color Category
Black
Description
OPTIMIZED PERFORMANCE AND DENSITY
Ideal dual-socket platform for dense scale-out data center computing powered by latest 4th Generation Intel® Xeon® Scalable Processors with up to 60 cores per CPU.
POWER YOUR APPLICATIONS
Combine performance and versatility to adapt to a variety of applications and meet future demands with 32 DIMM modules and up to 8 TB of memory. DDR5 DIMM memory provides fast, high capacity for memory intensive workloads.
EASY EXPANDABILITY
Benefit from the flexibility of 2.5”, 3.5” storage devices for highest capacities with up to 10 drives per height unit (U) and additional expandability with up to 3 PCIe 5.0 /1x PCIe 4.0 (for Internal RAID controller) slots flexible adapters via OCP v3.
COMPREHENSIVE PROTECTION
Benefit from advanced security technologies such as Platform Firmware Resilience (PFR) to protect the most sensitive portions of a workload, encryption support to enhance data and VM protection as well as physical protection to avoid unauthorized access.
Ideal dual-socket platform for dense scale-out data center computing powered by latest 4th Generation Intel® Xeon® Scalable Processors with up to 60 cores per CPU.
POWER YOUR APPLICATIONS
Combine performance and versatility to adapt to a variety of applications and meet future demands with 32 DIMM modules and up to 8 TB of memory. DDR5 DIMM memory provides fast, high capacity for memory intensive workloads.
EASY EXPANDABILITY
Benefit from the flexibility of 2.5”, 3.5” storage devices for highest capacities with up to 10 drives per height unit (U) and additional expandability with up to 3 PCIe 5.0 /1x PCIe 4.0 (for Internal RAID controller) slots flexible adapters via OCP v3.
COMPREHENSIVE PROTECTION
Benefit from advanced security technologies such as Platform Firmware Resilience (PFR) to protect the most sensitive portions of a workload, encryption support to enhance data and VM protection as well as physical protection to avoid unauthorized access.
- Efficient power management
Equipped with an 80 PLUS Titanium certified power supply, this server ensures up to 96% efficiency, reducing operational costs and supporting environmental sustainability. - Robust processing capabilities

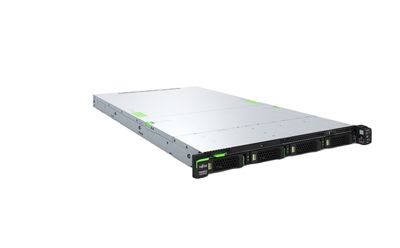

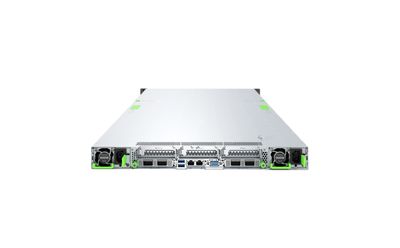

Powered by an Intel Xeon Silver processor and supporting up to 2-way server scalability, the Fujitsu PRIMERGY RX2530 M7 is designed to handle demanding workloads with ease, offering significant performance improvements. - Advanced memory technology
With 32 GB of DDR5 SDRAM installed and the capacity for up to 32 slots, this server features advanced memory technologies such as ECC, ADDDC, SDDC, and memory mirroring, ensuring data integrity and reliable performance. - Flexible storage options
Though it comes with no HDD installed, the server offers hot-swap bays for 2.5" drives, allowing for easy storage upgrades and replacements without downtime. - Comprehensive connectivity
Featuring a variety of interface options including USB 3.0, VGA, and management (Gigabit Ethernet), the server ensures versatile connectivity for all business needs.
