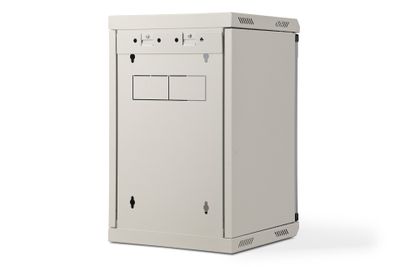

DIGITUS network cabinet DN-1019 - 10U

Article-No.:
165884
Manufacturer-No.:
DN-1019
EAN/GTIN:
4016032462811
WEEE Nummer
DE83654239

Suitable products

Technical specifications

General

Product Type
Rack
Packaged Quantity
1

Dimensions & Weight

Width
35 cm
Depth
35 cm
Height
55 cm
Weight
10,3 kg

Dimensions & Weight (Shipping)

Shipping Width
35,5 cm
Shipping Depth
35,5 cm
Shipping Height
56 cm
Shipping Weight
11,5 kg

Miscellaneous

Product Material
Powder-coated steel
Color
Gray / RAL 7035
Features
Lockable front door, Vertical orientation, Horizontal orientation, Detachable side sections, IP20 protection, Glass front door
Height (Rack Units)
10
Rack Size
10"/19"
Weight Limit
30 kg
Rack Size (metric)
25.4/48.3 cm
Color Category
Gray
Description

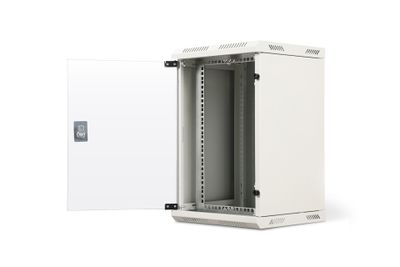

DIGITUS® wall-mounted enclosures are manufactured, designed and developed to meet the high demands of IT infrastructure.

- Can be used for 254 mm (10") or 483 mm (19") applications

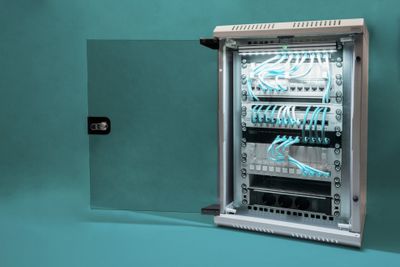

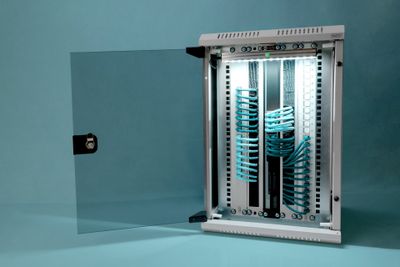

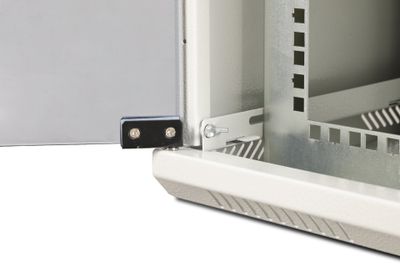

- Round profile frame: 254 mm (10") 10U horizontal or 482.6 mm (19") 5U vertical

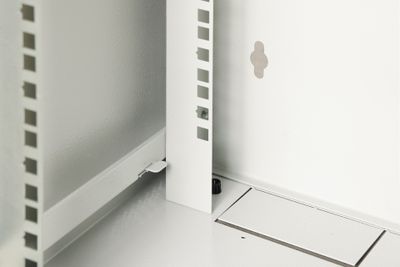

- Additional 254 mm (10") 10U profile perforation in the rear area
- Removable side panels from the inside
- Ready for immediate use: Delivery is assembled

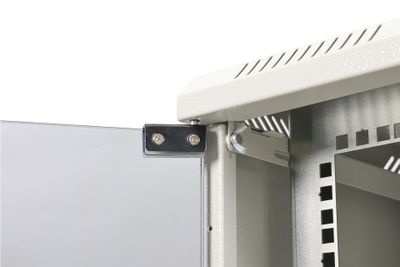

- Lockable safety glass door with 200° door opening angle

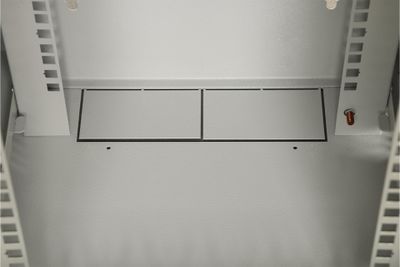

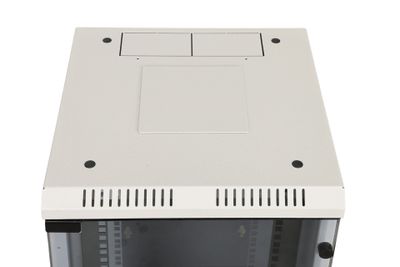

With a round profile frame installed at the front, the wall-mounted enclosure offers the option of horizontal mounting of 254 mm (10") components (10 height units) and, alternatively, vertical mounting of 482.6 mm (19") components (5 height units). The front profile frame is depth-adjustable. There is also a profile hole integrated into the rear section of the enclosure frame for mounting additional components with 254 mm (10") dimensions. The enclosure is made from a robust steel construction. The cable entry openings in the roof, base and rear provide the best options for tidy cable management. The compact enclosure is therefore ideal for all common IT and telecommunications applications, especially where space is limited and in private households.
