DIGITUS HDMI cable with Ethernet AK-330130-100-S - 10 m

Article-No.:
205134
Manufacturer-No.:
AK-330130-100-S
EAN/GTIN:
4016032483823
WEEE Nummer
DE83654239
Technical specifications

General

Packaged Quantity
1

Cable

Technology
Shielded hybrid copper/fiber optic
Left Connector Type
19 pin HDMI Type A
Right Connector Type
19 pin HDMI Type A
Right Connector Gender
Plug
Left Connector Gender
Plug
Right Connector Qty
1
Left Connector Qty
1
AV Cable Type
HDMI cable
Interface Supported
HDMI
Additional Features
21:8 cinema aspect ratio, HDCP compliant, 32 audio channels, Metal housing, EDID compatible
Technology Features
Audio Return Channel (ARC), 3D-Transmission, HDMI CEC support (Consumer Electronics Control), Supports 1080p HFR (High Frame Rate) 3D, HDR support
Plated Connector
Gold

Dimensions & Weight

Length
15 m

Dimensions & Weight (Shipping)

Shipping Width
21,7 cm
Shipping Depth
20,5 cm
Shipping Height
6,8 cm

Miscellaneous

Color
Black
Color Category
Black
Description
- Thanks to the steel and aramid fiber construction, the cable is highly resistant and offers optimal protection against external forces.

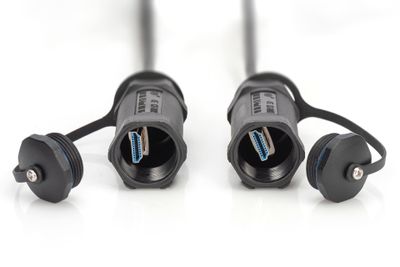

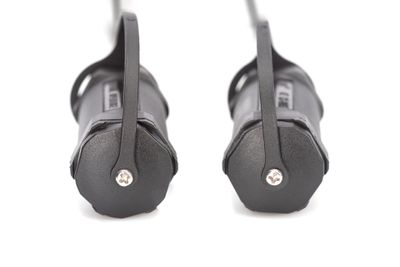

- When the cable is not in use, the plugs are protected by plastic sleeves with screw-on cover. IP68 certified.
- The active HDMI cable with AOC technology is based on a hybrid construction with copper and fiber optic cable, making bandwidths of up to 14.4 Gbit/s with full HDMI signal spectrum possible
- The hybrid fiber optic cable offers additional benefits such as a very tight bending radius and low weight. These features do not negatively affect the high image quality or the ease of the Plug & Play installation.
- The cable supports standards such as: HDMI 2.0, HDCP 2.2, HDR, ARC, DTS-HD Master Audio, CED, EDID, 21:8 Cinemascope, Dolby TrueHD, 32 channel audio
- Supports resolutions of up to 4K with a display refresh rate of 60Hz

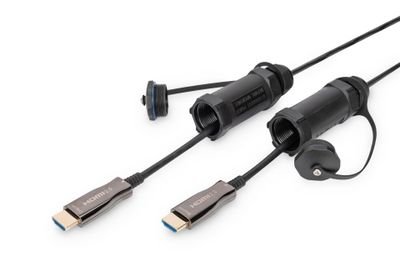

This active HDMI® AOC Hybrid Fiber Optic Cable is ideally suited for transferring uncompressed video and audio data with high bandwidth over longer distances. The hybrid construction, which uses copper and fiber optic cable, prevents electromagnetic interference. This ensures a loss-free transfer along the entire length of the cable with UHD resolution of up to 4K/60Hz and bandwidths of up to 14.4 Gbps. The use of fiber optic cable keeps the diameter of this active cable very low (OD: 5.2 mm). The steel and aramid fiber construction of the cable ensures optimal protection against external forces, making the cable crush-proof and puncture-resistant. When the cable is not in use, the protective sleeves protect the connections (IP68). The ideal companion for use at trade fairs, concerts and other events. The simple Plug and Play installation is user-friendly; just plug it in and immediately enjoy optimal image quality. It supports numerous standards such as HDMI 2.0, HDCP 2.2 and HDR. Some of the many audio features supported are ARC, DTS-HD Master Audio and Dolby TrueHD. Cutting edge chip technology makes it possible to transfer the full HDMI® signal spectrum while also supporting uncompressed CED and EDID with very low latency.
  • Enhanced connectivity
    This HDMI cable by DIGITUS offers high-speed with Ethernet, ensuring a stable, high-quality connection between devices. Its compatibility with HDMI CEC support enhances user control over multiple HDMI connected devices, making it a seamless addition to any home entertainment or professional setup.
  • Superior audio and video quality
    Experience audiovisual clarity with support for 4K resolution, HDR, and a 21:8 cinema aspect ratio. The cable's ability to transmit 32 audio channels and support for 1080p HFR 3D provides an immersive viewing and listening experience, perfect for movie enthusiasts and gamers.
  • Durable design
    Featuring a robust metal housing and gold-plated connectors, this cable is designed for longevity and reliable performance. The shielded hybrid copper/fiber optic technology ensures minimal signal loss over distance, making it ideal for both short and long-range connections.
