DIGITUS DS-12860 - KVM / audio / USB switch - 2 ports

DIGITUS DS-12860 - KVM / audio / USB switch - 2 ports_thumb_3

DIGITUS DS-12860 - KVM / audio / USB switch - 2 ports_thumb_4

DIGITUS DS-12860 - KVM / audio / USB switch - 2 ports_1

DIGITUS DS-12860 - KVM / audio / USB switch - 2 ports_2

DIGITUS DS-12860 - KVM / audio / USB switch - 2 ports_3

DIGITUS DS-12860 - KVM / audio / USB switch - 2 ports_4

Article-No.:

166689

Manufacturer-No.:

DS-12860

EAN/GTIN:

4016032467168

WEEE Nummer

DE71839861

Compare

Print view

Technical specifications

General

Packaged Quantity

Chassis

Built-in Devices

USB 2.0 hub

Ports

Qty

Type

KVM / audio / USB

Networking

Type

KVM / audio / USB switch

Ports Qty

KVM

KVM V-Sync Rate At Max Resolution

30 Hz

KVM Max Supported Video Resolution

3840 x 2160

KVM Local Users Qty

1 local user

Keyboard / Mouse Interface

USB

Power Device

Nominal Voltage

AC 120/230 V

Type

External power adapter

System Requirements

OS Required

SunSoft Solaris 8 or later, FreeBSD 5.5, IBM AIX 4.3, Apple MacOS X 10.6, Debian Linux 3.1, Microsoft Windows 2003, Microsoft Windows Server 2008, SuSE Linux 10.0 or later, Debian Linux 4.0, Apple MacOS 9.0 or later, Ubuntu 7.10, Ubuntu 7.04, SuSE Linux 11.1, Red Hat Linux 9.0, Novell NetWare 6, Microsoft Windows 2000/XP/Vista/7/8/10

Dimensions & Weight

Width

13,2 cm

Depth

9,2 cm

Height

6,6 cm

Weight

575 g

Miscellaneous

Color

Black

Color Category

Black

Description

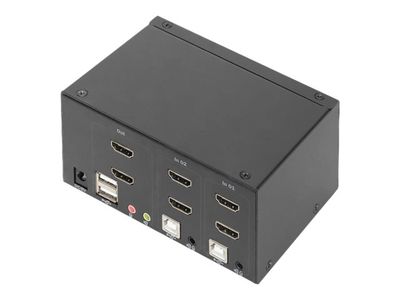

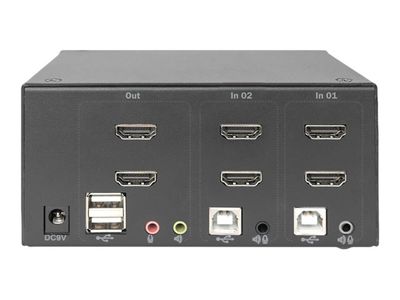

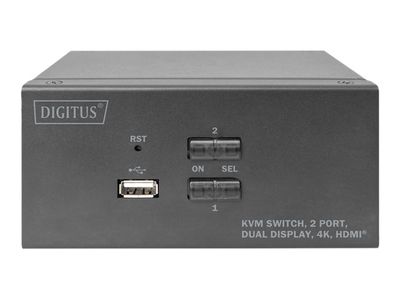

With the DIGITUS 2-Port KVM Switch for dual displays, you can operate two 4k-compatible PCs using a single USB keyboard and mouse combination. By pressing a button or hot key, you can switch comfortably between the two PCs and are spared the trouble of replugging all cables. Output on up to two monitors is provided via two HDMI outputs on the rear side. You can also switch between the audio signals for the microphone and speaker. In addition, a USB port is included on the front side for use with other peripheral devices like USB sticks or external hard drives on both PCs. The connected peripheral devices are each assigned to the active PC. Status LEDs on the front side of the switch show you the current configuration at all times. The slim switch features the added benefits of sturdy metal housing.

Product content

DIGITUS DS-12860
External power adapter
2 x HDMI cable
2 x keyboard / mouse / audio / USB cable
