DIGITUS Basis IT PDU - 1-phase - 32 A - 3 m

DIGITUS Basis IT PDU - 1-phase - 32 A - 3 m_thumb_3

DIGITUS Basis IT PDU - 1-phase - 32 A - 3 m_thumb_4

DIGITUS Basis IT PDU - 1-phase - 32 A - 3 m_1

DIGITUS Basis IT PDU - 1-phase - 32 A - 3 m_2

DIGITUS Basis IT PDU - 1-phase - 32 A - 3 m_3

DIGITUS Basis IT PDU - 1-phase - 32 A - 3 m_4

Article-No.:

207408

Manufacturer-No.:

DN-95451

EAN/GTIN:

4016032485964

WEEE Nummer

DE83654239

Compare

Print view

Technical specifications

General

Packaged Quantity

Product Type

Power distribution strip

Power Device

Voltage Required

AC 230

Frequency Required

50/60

Power Provided

8000 watt

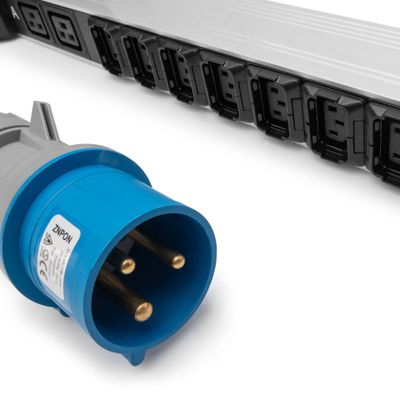

Input Connector Type

Power IEC 60309

Input Connector Qty

Output Connector Type

4 x power IEC 60320 C19, 24 x power IEC 60320 C13

Output Connector Qty

Circuit Protection

Circuit breaker

Max Electric Current

32 A

Frequency Provided

50/60

Power Device Features

Aluminum enclosure, Integrated extraction protection

Input Wiring

1-phase

Power Capacity (VA)

73000 VA

Cord Length

3 m

Dimensions & Weight

Width

4,5 cm

Depth

6 cm

Height

138,85 cm

Weight

3 kg

Dimensions & Weight (Shipping)

Shipping Width

8 cm

Shipping Depth

20 cm

Shipping Height

160 cm

Shipping Weight

3,75 kg

Miscellaneous

Color

Black

Features

ABS plastic, Vertical orientation

Height (Rack Units)

Color Category

Black

Description

Secure and professional power distribution solution for demanding IT requirements in network and server cabinets

- Optimum design for mounting in 19" racks
- Reliable power distribution
- Excellent space management of the sockets
- Integrated pull-out protection on each output, protects C13 and C19 standard cables from unintentional unplugging

The DIGITUS® power strips are the perfect solution for your network or server cabinet. In terms of power distribution, the PDU meets the requirements of many applications in IT, network technology and laboratories. The individual C13 and C19 outlets are equipped with pull-out protection. It is designed for vertical installation, which saves height units and provides more space for additional devices. The socket strip with 28 outlets has excellent physical properties and is designed for an output of up to 8,000 W (250VAC / 32A), which enables the best performance to be achieved with the corresponding load.

Robust design
Encased in an aluminum enclosure, this power distribution unit is designed for durability and reliability, ensuring a long-lasting power solution for any setup.
Efficient power distribution
With a power capacity of 8000 W and 32 A max electric current, it efficiently distributes power across 28 output connectors, including 24 x power IEC 60320 C13 and 4 x power IEC 60320 C19, catering to a wide range of power needs.
Safety assured

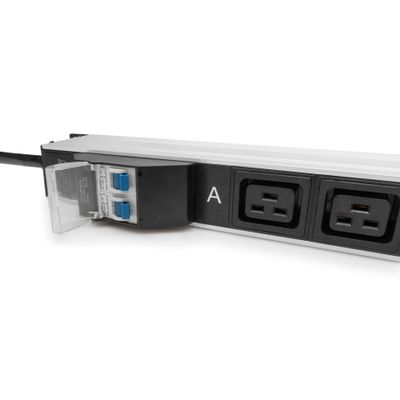

Features such as integrated extraction protection and a circuit breaker enhance safety by preventing overloads and short circuits, ensuring a secure power supply.
Versatile compatibility
The unit's vertical orientation and ABS plastic construction make it a versatile addition to any space, while compliance with UL 94V-0 standards underscores its quality and safety.
