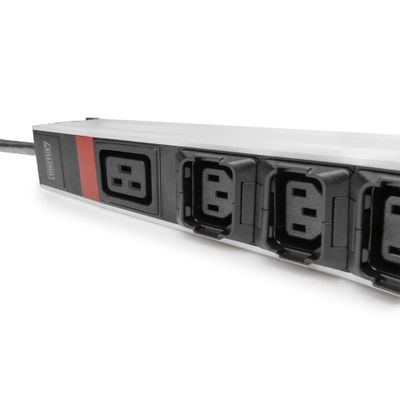

DIGITUS Basic IT PDU - 3-phase - 16 A - 3 m

DIGITUS Basic IT PDU - 3-phase - 16 A - 3 m_thumb_3

DIGITUS Basic IT PDU - 3-phase - 16 A - 3 m_thumb_4

DIGITUS Basic IT PDU - 3-phase - 16 A - 3 m_1

DIGITUS Basic IT PDU - 3-phase - 16 A - 3 m_2

DIGITUS Basic IT PDU - 3-phase - 16 A - 3 m_3

DIGITUS Basic IT PDU - 3-phase - 16 A - 3 m_4

Article-No.:

207409

Manufacturer-No.:

DN-95452

EAN/GTIN:

4016032485971

WEEE Nummer

DE83654239

Compare

Print view

Technical specifications

General

Packaged Quantity

Product Type

Power distribution strip

Power Device

Voltage Required

AC 230 - 400

Frequency Required

50/60

Power Provided

4000 watt

Input Connector Type

Power IEC 60309

Input Connector Qty

Output Connector Type

3 x power IEC 60320 C19, 24 x power IEC 60320 C13

Output Connector Qty

Max Electric Current

16 A

Frequency Provided

50/60

Power Device Features

Aluminum enclosure, Integrated extraction protection

Input Wiring

3-phase

Power Capacity (VA)

11000 VA

Cord Length

3 m

Dimensions & Weight

Width

4,5 cm

Depth

6 cm

Height

128 cm

Dimensions & Weight (Shipping)

Shipping Width

14 cm

Shipping Depth

7 cm

Shipping Height

140 cm

Shipping Weight

1,5 kg

Miscellaneous

Color

Black

Features

Color indication for each phase, ABS plastic, Vertical orientation

Height (Rack Units)

Rack Size

19"

Rack Size (metric)

48.3 cm

Color Category

Black

Description

Secure and professional power distribution solution for demanding IT requirements in network and server cabinets

- Optimum design for mounting in 19" racks
- Reliable power distribution
- Excellent space management of the sockets
- Integrated pull-out protection on each output, protects C13 and C19 standard cables from unintentional unplugging
- Color display for each phase

The DIGITUS® power strips are the perfect solution for your network or server cabinet. In terms of power distribution, the PDU meets the requirements of many applications in IT, network technology and laboratories. The individual C13 and C19 outlets are equipped with pull-out protection. It is designed for vertical installation, which saves height units and provides more space for additional devices. The socket strip with 27 outlets has excellent physical properties and is designed for an output of up to 4,000 W (250VAC / 16A), enabling the best performance to be achieved with the corresponding load.

Robust design
Encased in an aluminum enclosure with ABS plastic, this power distribution unit is designed for durability and safety, ensuring long-term reliability in demanding environments.
Efficient power distribution
With a power capacity of 4000 W and support for 3-phase input wiring, this unit efficiently distributes power across 27 output connectors, including 24 x power IEC 60320 C13 and 3 x power IEC 60320 C19, catering to a wide range of power needs.
Enhanced safety features
Features integrated extraction protection and color indication for each phase, providing an extra layer of safety and ease of use, ensuring devices are protected and power distribution is easily monitored.
