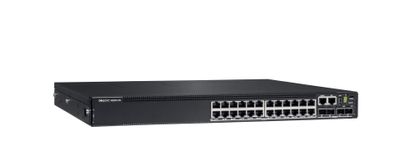

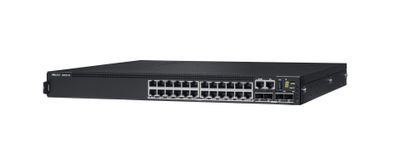

DELL N2224X-ON Managed L3 2.5G Ethernet (100/1000/2500) 1U Black

DELL N2224X-ON Managed L3 2.5G Ethernet (100/1000/2500) 1U Black_thumb_3

DELL N2224X-ON Managed L3 2.5G Ethernet (100/1000/2500) 1U Black_thumb_4

DELL N2224X-ON Managed L3 2.5G Ethernet (100/1000/2500) 1U Black_thumb_5

DELL N2224X-ON Managed L3 2.5G Ethernet (100/1000/2500) 1U Black_thumb_6

DELL N2224X-ON Managed L3 2.5G Ethernet (100/1000/2500) 1U Black_thumb_7

DELL N2224X-ON Managed L3 2.5G Ethernet (100/1000/2500) 1U Black_1

DELL N2224X-ON Managed L3 2.5G Ethernet (100/1000/2500) 1U Black_2

DELL N2224X-ON Managed L3 2.5G Ethernet (100/1000/2500) 1U Black_3

DELL N2224X-ON Managed L3 2.5G Ethernet (100/1000/2500) 1U Black_4

DELL N2224X-ON Managed L3 2.5G Ethernet (100/1000/2500) 1U Black_5

DELL N2224X-ON Managed L3 2.5G Ethernet (100/1000/2500) 1U Black_6

DELL N2224X-ON Managed L3 2.5G Ethernet (100/1000/2500) 1U Black_7

Article-No.:

155474

Manufacturer-No.:

210-ASPJ

EAN/GTIN:

5397184224540

WEEE Nummer

DE49515708

Compare

Print view

Technical specifications

General

Packaged Quantity

RAM

Installed Size

4 GB

Flash Memory

Installed Size

8 GB

Performance

Forwarding rate: 667 Mpps, Switching capacity: 480 Gbps

Ports

Qty

Type

10/100/1000/2.5G

Second Ports

Qty

Type

25 Gigabit SFP28

Capacity

RIP interfaces: 256, Maximum ACL rules per interface (IPv6) ingress rules: 1023, Max ACL rules system-wide: 3914, Priority queues per port: 8, IPv4 routes (static): 256, IPv6 routes (static): 128, IPv4 routes (dynamic): 256, Maximum ACL rules per interface (IPv4) ingress rules: 1023, Maximum ACL rules per interface (IPv4) egress rules: 1023, Maximum ACL rules per interface (IPv6) egress rules: 509, Maximum VLAN interfaces with ACLs applied: 24, VLANs supported: 4096, NDP entries: 512, ARP entries: 4096

Networking

Type

Switch

Ports Qty

Routing Protocol

OSPFv3, IPv4-to-IPv6 Multicast, OSPF, RIP, RIP-2, IGMPv2, IGMP, OSPFv2, IGMPv3

MAC Address Table Size

32K entries

Stackable

Advanced Switching

Layer 3

Software

Type

Dell EMC OS6

Power Device

Power Consumption Operational

238 watt

Frequency Required

50/60

Power Provided

550 watt

Installed Qty

Nominal Voltage

AC 120/230 V

Type

Internal power supply

Hot-Plug

Hot-plug

Dimensions & Weight

Width

43,4 cm

Depth

40 cm

Height

4,34 cm

Weight

6,5 kg

Miscellaneous

Height (Rack Units)

Manufacturer Selling Program

CAMPUS Smart Value

Color Category

Black

Description

Modernize your campus access network
Purpose-built industry’s first 24 and 48 port Multi-Gig and Multi-Gig 60W PoE switches for modern workloads and greater employee productivity.

Increased Power over Ethernet Capacity
Customers can operate more powered devices (surveillance cameras, building automation, lighting, phone systems, and so on) directly from the switches.
Improve employee efficiency with better connectivity
Modernize existing infrastructure networks to handle modern workloads.
Increases efficiency
Facilitates workforce transformation and increases employee efficiency with engaging, bandwidth-intensive applications.
Numerous benefits
Discover and gain the many benefits of IoT and automation with the enhanced PoE features of the new Dell EMC PowerSwitch N Series.
