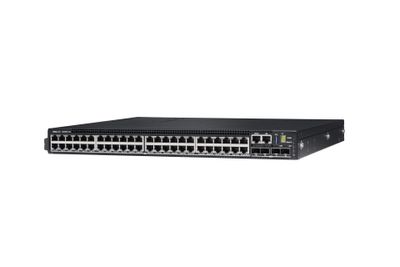

DELL N-Series N3248TE-ON Managed L2/L3 Gigabit Ethernet (10/100/1000) Black

DELL N-Series N3248TE-ON Managed L2/L3 Gigabit Ethernet (10/100/1000) Black_thumb_3

DELL N-Series N3248TE-ON Managed L2/L3 Gigabit Ethernet (10/100/1000) Black_thumb_4

DELL N-Series N3248TE-ON Managed L2/L3 Gigabit Ethernet (10/100/1000) Black_1

DELL N-Series N3248TE-ON Managed L2/L3 Gigabit Ethernet (10/100/1000) Black_2

DELL N-Series N3248TE-ON Managed L2/L3 Gigabit Ethernet (10/100/1000) Black_3

DELL N-Series N3248TE-ON Managed L2/L3 Gigabit Ethernet (10/100/1000) Black_4

Article-No.:

162345

Manufacturer-No.:

210-ASOZ

EAN/GTIN:

5397184363508

WEEE Nummer

DE49515708

Compare

Print view

Technical specifications

General

Packaged Quantity

RAM

Installed Size

32 GB

Flash Memory

Installed Size

8 GB

Performance

Forwarding rate: 800 Mpps, Switching capacity: 576 Gbps

Ports

Qty

Type

10/100/1000

Second Ports

Qty

Type

10 Gigabit SFP+

Third Ports

Qty

Type

100 Gigabit QSFP28

Capacity

Max ACL rules system-wide: 3914, OSPF routes: 8158, ECMP next hops per route: 16, Multicast entries (IPv4): 1023, Multicast entries (IPv6): 1021, NDP entries: 2560, Maximum ACL rules per interface (IPv4) egress rules: 511, Maximum ACL rules per interface (IPv6) egress rules: 506, ACL: 100, Maximum member ports per LAG: 8, VLAN routing interfaces: 128, Maximum rules per ACL: 1023, Maximum ACL rules per interface (IPv4) ingress rules: 1023, Maximum VLAN interfaces with ACLs applied: 24, Maximum dynamic ports per switch stack: 144, RIP routes: 512, ARP entries: 6144, VLANs supported: 4094, LAG groups: 128, IPv4 routes (static): 1024, IPv6 routes (static): 1024, IPv4 routes (dynamic): 8160, IPv6 routes (dynamic): 4096, ECMP groups: 1024, Maximum ACL rules per interface (IPv6) ingress rules: 1021

Networking

Type

Switch

Ports Qty

Routing Protocol

OSPFv3, IPv4-to-IPv6 Multicast, OSPF, RIP, RIP-2, IGMPv2, IGMP, OSPFv2, IGMPv3

MAC Address Table Size

32K entries

Stackable

Advanced Switching

Layer 3

Software

Type

Dell EMC OS6

Power Device

Power Consumption Operational

212 watt

Power Provided

550 watt

Installed Qty

Max Supported Qty

80 PLUS Certification

80 PLUS Platinum

Type

Internal power supply

Hot-Plug

Hot-plug

Dimensions & Weight

Width

43,4 cm

Depth

40 cm

Height

4,34 cm

Weight

6,99 kg

Miscellaneous

Height (Rack Units)

Manufacturer Selling Program

CAMPUS Smart Value

Color Category

Black

Description

Power up your campus access network
Purpose-built 8, 24 and 48 port Multi-Gig and Multi-Gig 802.3bt 90W PoE switches for modern workloads and greater employee productivity.

High-capacity support
This switch supports a wide range of entries and routes, including 100 multicast entries for IPv4 and 100 for IPv6, as well as sufficient OSPF and RIP routes, allowing for effective network management.
Flexible networking options
With a mix of 48 Gigabit Ethernet ports and additional 10 and 100 Gigabit ports, the switch provides ample connectivity options tailored to various business needs.
Advanced security features
Features such as RADIUS and TACACS+ authentication methods enhance the security of the network by controlling user access and ensuring device integrity.
Robust environmental resilience
The switch operates efficiently in a wide temperature range, from 0 °C to 45 °C, and maintains functionality in high humidity conditions, making it suitable for various environments.
Compliance with standards
The Dell PowerSwitch meets multiple industry certifications like FCC Class A and RoHS, ensuring that it adheres to important regulatory and environmental standards.
