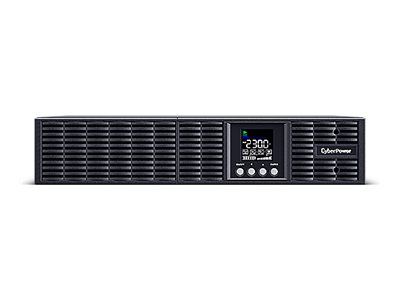

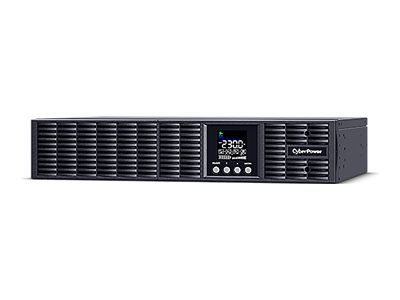

CyberPower Smart App Online S OLS1500ERT2UA - UPS - 1350 Watt - 1500 VA

Article-No.:
168215
Manufacturer-No.:
OLS1500ERT2UA
EAN/GTIN:
4711027790282
WEEE Nummer
DE77251196

Suitable products

Technical specifications

General

Packaged Quantity
1
Product Type
UPS

Networking

Remote Management Interface
RS-232, USB

Expansion Slots

Expansion Slots
1 (total) / 1 (free) x expansion slot

Power Device

Voltage Required
AC 230
Voltage Required Margin
± 10%
Frequency Required
50/60
Surge Suppression
Yes
Voltage Provided Margin
± 1%
Power Provided
1350 Watt
Input Connector Type
Power IEC 60320 C14
Input Connector Qty
1
Output Connector Qty
8
Circuit Protection
Fuse, Circuit breaker
Surge Energy Rating
363 Joules
Frequency Provided
50/60
UPS Output Waveform
Sinewave
UPS Technology
On-line
Input Voltage Range
AC 190 - 300 V
Input Voltage Range (Adjustable)
AC 80 - 300 V
Form Factor
Rack-mountable / external
Power Device Features
Audible alarm, Internal bypass, Overload protection, Cooling fan, Smart Battery Management (SMB), Eco-Mode, Start on battery, Generator compatible, Rotatable LCD panel
Input Wiring
1-phase
Power Capacity (VA)
1500 VA
Transfer Time
0 ms
Power Factor (PF)
1
Frequency Required Margin
± 10%
Frequency Provided Margin
± 0.5%

Battery

Voltage Provided
48
Recharge Time
4 hours
Run Time (Up To)
3 min
Load Type
At full load
Lead Acid Battery Features
Sealed

UPS

Expandable Battery
Expandable
Battery Technology
Lead acid
Battery Capacity
7 Ah

Dimensions & Weight

Width
43,8 cm
Depth
43 cm
Height
8,8 cm
Weight
13,8 kg

Dimensions & Weight (Shipping)

Shipping Width
54 cm
Shipping Depth
55 cm
Shipping Height
23 cm

Miscellaneous

Color
Black
Height (Rack Units)
2
Color Category
Black
Description
CyberPower OLS1500ERT2UA is a high-performance UPS featuring online double-conversion topology, which provides seamless Pure Sine Wave power for mission-critical devices such as NAS and servers, DVRs/surveillance systems, transportation and infrastructure, and emergency systems. It's typically integrated in the back office, server room, and data center environment. The UPS features a color LCD panel for users to monitor power system and configure settings easily, and relay-type dry contact to perform local management. This model is designed with extended battery module auto-detection, which can automatically detect the quantity of connected Extended Battery Modules (EBM) to estimate UPS's runtime. The variable speed fans provide automatic thermal management based on power load to reduce noise and provide greater comfort for users.
