Please login to see the price and order.
Article-No.:
184722
Manufacturer-No.:
OLS3000EA-DE
EAN/GTIN:
4711027790251
WEEE Nummer
DE77251196
Technical specifications
Description
Technical specifications
General
Packaged Quantity
1
Product Type
UPS
Networking
Remote Management Interface
RS-232, USB
Expansion Slots
Expansion Slots
1 (total) / 1 (free) x Intelligent Slot
Power Device
Voltage Required
AC 230
Voltage Required Margin
+ 10% / - 10%
Frequency Required
50/60
Surge Suppression
Yes
Voltage Provided Margin
± 1%
Power Provided
2700 Watt
Input Connector Type
Power IEC 60320 C20
Input Connector Qty
1
Output Connector Qty
7
Circuit Protection
Fuse, Circuit breaker
Surge Energy Rating
370 Joules
Frequency Provided
50/60
UPS Output Waveform
Sinewave
UPS Technology
On-line
Input Voltage Range
AC 190 - 300 V
Form Factor
External
Power Device Features
Zero transfer time, Audible alarm, Emergency power off, LCD display, Internal bypass, Overload protection, Smart Battery Management (SMB), Eco-Mode, Start on battery, Generator compatible, Double conversion
Power Factor Correction
Active Power Factor Correction (PFC)
Power Capacity (VA)
3000 VA
Power Factor (PF)
0.9
Frequency Required Margin
± 10Hz
Frequency Provided Margin
± 0.5%
Battery
Voltage Provided
12
Recharge Time
4 hours
Run Time (Up To)
4,3 min
Load Type
At full load
Lead Acid Battery Features
Sealed
UPS
Battery Technology
Lead acid
Battery Capacity
9 Ah
Dimensions & Weight
Width
19,6 cm
Depth
41,6 cm
Height
33,7 cm
Weight
21,3 kg
Miscellaneous
Color
Black
Features
Built-in 2 cooling fans, Variable speed fans, Metal housing
Color Category
Black
Description

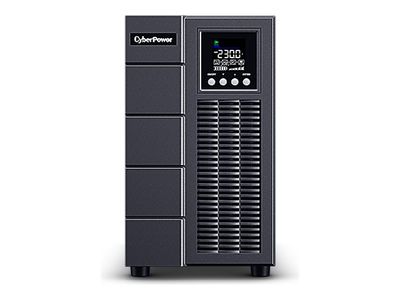

CyberPower OLS3000EA is a high-performance UPS featuring online double-conversion topology, which provides seamless Pure Sine Wave power for mission-critical devices such as NAS and servers, DVRs/surveillance systems, transportation and infrastructure, and emergency systems. It's typically integrated in the back office, server room, and data center environment.
The UPS is designed with a color LCD panel for users to monitor power system and configure settings easily. This model is generator compatible and also adopts ECO mode to conserve power. The product can be connected to Emergency Power Off (EPO) switch, which allows users to shut off the UPS immediately during emergency. The variable speed fans provide automatic thermal management based on power load to reduce noise and provide greater comfort for users.
The UPS is designed with a color LCD panel for users to monitor power system and configure settings easily. This model is generator compatible and also adopts ECO mode to conserve power. The product can be connected to Emergency Power Off (EPO) switch, which allows users to shut off the UPS immediately during emergency. The variable speed fans provide automatic thermal management based on power load to reduce noise and provide greater comfort for users.
