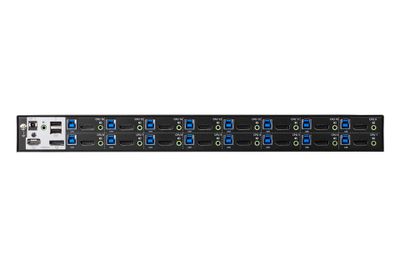

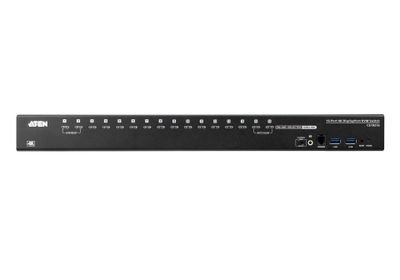

ATEN 16-Port USB 3.0 4K DisplayPort KVM Switch

Manufacturer-No.:
CS19216
EAN/GTIN:
4719264649264
WEEE Nummer
DE83654239
Technical specifications

General

Packaged Quantity
1

Chassis

Built-in Devices
2-port USB 3.1 Gen 1 hub

Ports

Qty
16
Type
KVM / audio / USB

Networking

Type
KVM / audio / USB switch
Ports Qty
16
Stackable
Cascadable

KVM

KVM V-Sync Rate At Max Resolution
60 Hz
KVM Max Supported Video Resolution
4096 x 2160
KVM Local Users Qty
1 local user
KVM Features
ATEN Video DynaSync, Auto Scan mode, Broadcast mode
Keyboard / Mouse Interface
USB

Power Device

Power Consumption Operational
26,66 watt
Type
External power adapter

Dimensions & Weight

Width
43,24 cm
Depth
21,43 cm
Height
4,4 cm
Weight
3,54 kg

Miscellaneous

Color Category
Black
Description
The ATEN CS19216 16-Port USB 3.0 4K DisplayPort KVM Switch can effectively access and control up to 16 DisplayPort computers from a single USB keyboard, USB mouse, and monitor console. With its dual interface console, users can choose between DisplayPort/HDMI video output supporting high video quality up to 4K DCI (4096 x 2160 @ 60Hz), presenting crystal-clear visuals.
1x CS19216 16-Port USB 3.0 4K DisplayPort KVM Switch with Rack Mounting Kit
2x LIN5-20K1-K13G DisplayPort 1.4 Cables
2x LIN6-11C1-E12G USB 3.0 Cables
2x LIN5-0205-21CG Audio Cables
1x LIN5-04A2-J11G Firmware Upgrade Cable
1x 0X02-0017-000G Foot Pad Set (4 pcs)
1x LIN2-418K-E12G + 0AD8-8012-50M2 Power Adapter
1x User Instructions
Product content

Product content

  • ATEN CS19216
  • External power adapter
  • 2 x DisplayPort cable
  • 2 x SuperSpeed USB cable
  • 2 x audio cable
  • Firmware upgrade cable
  • Rack mounting kit
