Product content
Product content
- ASUS PRIME B840-PLUS WIFI
- 2 x Serial ATA cable

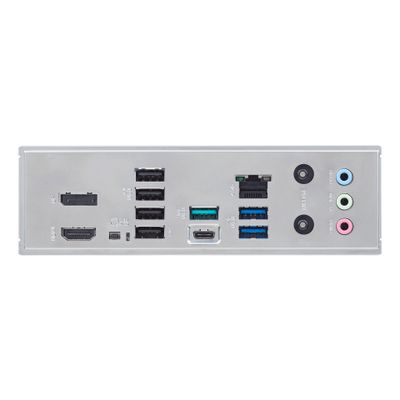

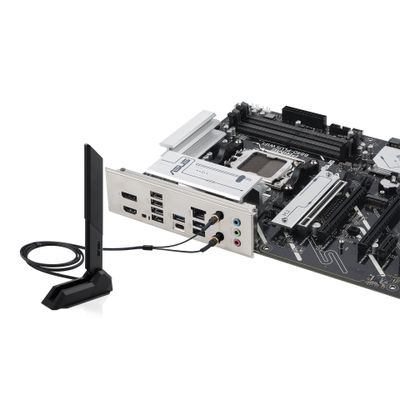

- IO shield, 3 x M.2 SSD screw package, ASUS Wi-Fi Q-antenna
- Software
/asset/4/a/1/6/4a16d42c52edd315f9929497abe788dcbf1e0ae4_260214.jpg)
/asset/d/6/2/f/d62f0bf7cc98ba202721ed4acfdc26ad6d57911e_260214_2.jpg)
/asset/1/1/c/b/11cbaf049704a5a9eda1c48df7b32974a0207c2d_260214_3.jpg)
/asset/1/9/5/e/195e8e343e8262d75b3963c88a4adda016e1f1d0_260214_4.jpg)
/asset/2/8/e/8/28e820c78d650aa5b9a391f240c17123456369b0_260214_5.jpg)
/asset/3/b/3/6/3b361f31470509871dcd0dc9da83e70a3a76ffd8_260214_6.jpg)
/asset/4/a/1/6/4a16d42c52edd315f9929497abe788dcbf1e0ae4_260214.jpg)
/asset/d/6/2/f/d62f0bf7cc98ba202721ed4acfdc26ad6d57911e_260214_2.jpg)
/asset/1/1/c/b/11cbaf049704a5a9eda1c48df7b32974a0207c2d_260214_3.jpg)
/asset/1/9/5/e/195e8e343e8262d75b3963c88a4adda016e1f1d0_260214_4.jpg)
/asset/2/8/e/8/28e820c78d650aa5b9a391f240c17123456369b0_260214_5.jpg)
/asset/3/b/3/6/3b361f31470509871dcd0dc9da83e70a3a76ffd8_260214_6.jpg)
Please login to see the price and order.
Article-No.:
260214
Manufacturer-No.:
90MB1IZ0-M0EAY0
EAN/GTIN:
4711387797273
WEEE Nummer
DE12375349
Technical specifications
Description
Technical specifications
General
Packaged Quantity
1
Processor
Installed Qty
0
Max Supported Qty
1
Mainboard
Form Factor
ATX
Compatible Processors
Ryzen
Chipset Type
AMD B840
Supported RAM Technology
DDR5 SDRAM
Supported RAM Integrity Check
Non-ECC, ECC, On-die ECC
Supported RAM Speed
3800 MHz (O.C.)
Processor Socket
Socket AM5
Power Connectors
24-pin main power connector, 8-pin ATX12V connector
Supported RAM (Registered or Buffered)
Unbuffered
RAM Slots
4 DIMM slots
Interfaces
Internal Interfaces
1 x USB-C 3.2 Gen 1 - header, 1 x audio - header, 1 x serial - header, 4 x USB 2.0 - header, 1 x SPDIF out - header, 1 x speaker - header, 2 x USB 3.2 Gen 1 - header, 1 x SPI - header
RAM
Features
AMD EXPO technology, Dual channel memory architecture
Max Supported Size
192 GB
Video Output
Type
Graphics adapter (CPU required)
Audio Output
Type
Sound card
Compliant Standards
High Definition Audio
Audio
High Definition Audio (8-channel)
Networking
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.3, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, 2.5 Gigabit Ethernet
Network
2.5 Gigabit Ethernet, Bluetooth 5.3, 802.11a/b/g/n/ac/ax (Wi-Fi 6E)
Bluetooth
Expansion Slots
Expansion Slots
1 x CPU, 1 x M.2 socket (2242/2260/2280 M.2 Key M slot), 2 x M.2 socket (2280 M.2 Key M slot), 4 x DIMM 288-pin, 2 x PCIe 3.0 x1, 1 x PCIe 4.0 x16
Interfaces
Storage Interfaces
PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10, SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10, PCIe 4.0 -connectors: 1 x M.2
Storage
Serial ATA-600 (RAID), M.2 socket
USB / FireWire
USB 3.2 Gen 1, USB-C 3.2 Gen 1
Storage Ports
4 x SATA-600 (RAID), 3 x M.2
USB / FireWire Ports Configuration (Active)
1 x USB-C 3.2 Gen 2 + 1 x USB 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0
USB / FireWire Ports Configuration (Headers)
1 x USB-C 3.2 Gen 1 + 1 x USB 3.2 Gen 1 + 2 x USB 2.0
Software
Software Included
ASUS AURA Creator, Armoury Crate, ASUS Fan Xpert 2+, Norton 360 for Gamers (60 days trial), Adobe Creative Cloud (free trial), WinRAR (40 days trial), ASUS TurboV EVO Utility, ASUS CPU-Z, ASUS AI Suite III, PC Cleaner, WinRAR
Dimensions & Weight
Width
30,5 cm
Depth
24,4 cm
Description

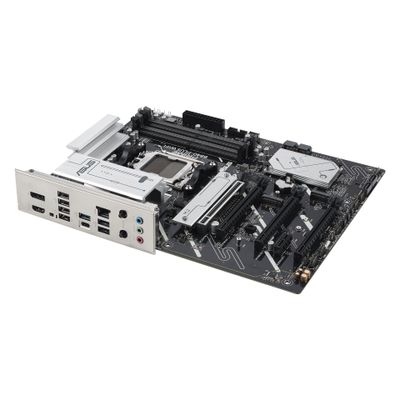

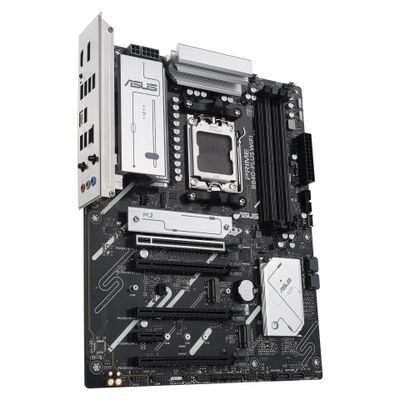

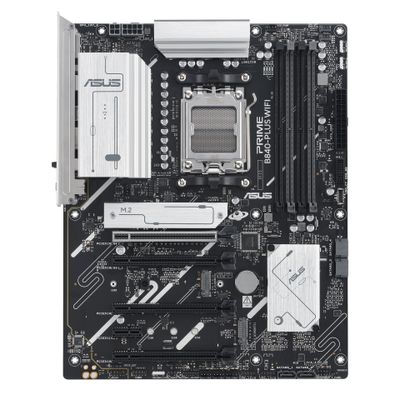

The ASUS PRIME B840-PLUS WIFI motherboard delivers performance and reliability for users. Equipped with support for DDR5 SDRAM and a wide range of compatible processors, including Ryzen 7000/8000/9000 Series, this motherboard is designed to handle demanding applications. Featuring multiple connectivity options such as USB-C and advanced audio capabilities, it ensures seamless integration into high-performance setups. With its robust BIOS features, including ASUS EZ Flash 3 and CrashFree BIOS 3, users can easily manage and maintain system stability. The motherboard also incorporates ASUS 5X Protection III, providing overvoltage protection and enhancing system durability. The inclusion of Gigabit Ethernet and Bluetooth 5.3 allows for high-speed networking and wireless connectivity, making it an ideal choice for users seeking efficiency and versatility in their build.
- Robust connectivity options
The ASUS PRIME B840-PLUS WIFI provides an extensive array of connectivity options, including multiple USB ports, HDMI, and DisplayPort. This variety allows for easy connection of peripherals and display devices, enabling a versatile computing experience. - Advanced audio output
Featuring a high definition audio output with support for 8-channel audio, this motherboard delivers an immersive sound experience. Ideal for gamers and media professionals, it ensures high-quality audio playback. - Efficient power management
With a 24-pin main power connector and an 8-pin ATX12V connector, the motherboard ensures efficient power delivery to the installed components. This design helps maintain stability during intensive processing tasks. - Dynamic cooling solutions
Designed with cooling in mind, the motherboard includes a VRM heatsink and supports ASUS Control Center Express for monitoring system temperatures. This feature is crucial for maintaining optimal performance during extended use. - Reliable BIOS features
The motherboard is equipped with AMI BIOS, supporting ASUS EZ Flash 3 and ASUS UEFI BIOS EZ Mode for simple and effective system management. These features contribute to overall system reliability and user convenience.
