Product content
Product content
- ASUS PRIME B760-PLUS D4
- 2 x Serial ATA cable
- IO shield, 1 x M.2 rubber package, 2 x M.2 SSD screw package
- Software
/asset/c/d/2/0/cd20b5bae49d7094887c4b247d39f7b41de27b3c_217586.jpeg)
/asset/e/b/3/6/eb36b7c79f08878e7f0ff9f31bdfea49e1045000_217586_2.jpeg)
/asset/e/f/2/1/ef2147c8bd7df1a14f0b4e4f4bb341c284d38115_217586_3.jpeg)
/asset/0/7/0/8/070843ba1d1a2de535b9ca65198d8d663538e10b_217586_4.jpeg)
/asset/d/7/5/9/d759f4b773c3bfabc88f0bb8774a4176dd6573f8_217586_5.jpeg)
/asset/d/d/2/b/dd2b55155db23188efe2e85b4188310fa01e617d_217586_6.jpeg)
/asset/c/d/2/0/cd20b5bae49d7094887c4b247d39f7b41de27b3c_217586.jpeg)
/asset/e/b/3/6/eb36b7c79f08878e7f0ff9f31bdfea49e1045000_217586_2.jpeg)
/asset/e/f/2/1/ef2147c8bd7df1a14f0b4e4f4bb341c284d38115_217586_3.jpeg)
/asset/0/7/0/8/070843ba1d1a2de535b9ca65198d8d663538e10b_217586_4.jpeg)
/asset/d/7/5/9/d759f4b773c3bfabc88f0bb8774a4176dd6573f8_217586_5.jpeg)
/asset/d/d/2/b/dd2b55155db23188efe2e85b4188310fa01e617d_217586_6.jpeg)
Please login to see the price and order.
Article-No.:
217586
Manufacturer-No.:
90MB1CW0-M1EAY0
EAN/GTIN:
4711081970309
WEEE Nummer
DE12375349
Technical specifications
Description
Technical specifications
General
Packaged Quantity
1
Processor
Installed Qty
0
Max Supported Qty
1
Mainboard
Form Factor
ATX
Chipset Type
Intel B760
Supported RAM Technology
DDR4 SDRAM
Supported RAM Integrity Check
Non-ECC
Supported RAM Speed
4800 MHz (O.C.), 3200 MHz, 5000 MHz (O.C.), 5066 MHz (O.C.), 2400 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 2933 MHz, 3400 MHz (O.C.), 3333 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 4000 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4600 MHz (O.C.)
Processor Socket
LGA1700 Socket
Power Connectors
24-pin main power connector, 8-pin ATX12V connector
Supported RAM (Registered or Buffered)
Unbuffered
RAM Slots
4 DIMM slots
Interfaces
Internal Interfaces
1 x USB-C 3.2 Gen 1 - header, 1 x audio - header, 1 x serial - header, 4 x USB 2.0 - header, 1 x SPDIF out - header, 1 x Thunderbolt - header, 2 x USB 3.2 Gen 1 - header, 1 x SPI - header
RAM
Features
Intel Extreme Memory Profiles (XMP), Dual channel memory architecture
Max Supported Size
128 GB
Video Output
Type
Graphics adapter (CPU required)
Audio Output
Type
Sound card
Compliant Standards
High Definition Audio
Audio
High Definition Audio (8-channel)
Networking
Network
2.5 Gigabit Ethernet
Expansion Slots
Expansion Slots
1 x CPU, 1 x M.2 socket (2242/2260/2280/22110 M.2 Key M slot), 2 x M.2 socket (2242/2260/2280 M.2 Key M slot), 1 x PCIe 5.0 x16, 4 x DIMM 288-pin, 2 x PCIe 3.0 x1, 1 x M.2 socket (Key E), 1 x PCIe 4.0 x16 (x4 mode)
Interfaces
Storage Interfaces
PCIe 4.0 -connectors: 3 x M.2, SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
Storage
Serial ATA-600 (RAID), M.2 socket
RAID Features
Intel Rapid Storage Technology
USB / FireWire
USB 3.2 Gen 1, USB 3.2 Gen 2, USB4, USB-C 3.2 Gen 2x2, USB-C 3.2 Gen 1
Storage Ports
4 x SATA-600 (RAID), 3 x M.2
USB / FireWire Ports Configuration (Active)

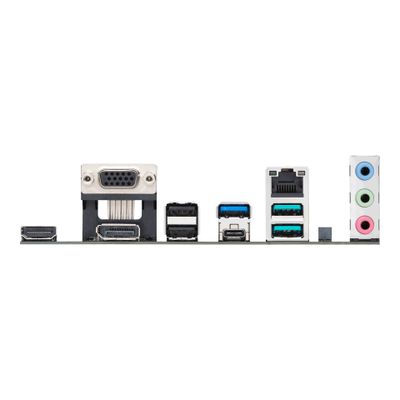

1 x USB-C 3.2 Gen 2x2 + 2 x USB 3.2 Gen 2 + 1 x USB 3.2 Gen 1 + 2 x USB 2.0
USB / FireWire Ports Configuration (Headers)
1 x USB4 + 1 x USB-C 3.2 Gen 1 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0
Software
Software Included
ASUS AURA Creator, Armoury Crate, Norton 360 Deluxe (60 days trial), ASUS Fan Xpert 2+, ASUS CPU-Z, ASUS AI Suite III, PC Cleaner, WinRAR
Dimensions & Weight
Width
30,5 cm
Depth
24,4 cm
Description

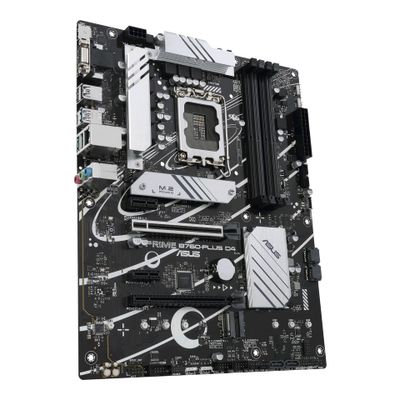

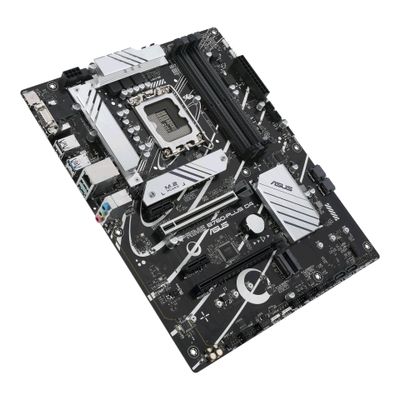

ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel Core processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B760-PLUS D4 provides users and PC DIY builders with a range of performance optimizations.
- All-around energy efficiency
The Power Saving function contains several settings can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows. - Precise digital power control
The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for ultimate stability and performance. - Advanced tuning for serious tweakers
An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want. - Quick and simple setup
EZ mode displays vital settings and stats and also offers guided wizards, drag-and-drop functionality, and one-click application of important settings - all to help you get your rig up and running in no time. - M.2 heatsink
M.2 heatsink wards off throttling that can occur with M.2 storage during sustained transfers. The heatsink is held in place by captive screws, and these removable captive screws help reduce risk of drops or loss during heatsink removal. - VRM heatsinks and thermal pads
VRM heatsinks and thermal pads improve heat transfer from the MOSFETs for better cooling performance. - ProCool connector
Proprietary connectors augment the motherboard's link to the PSU with 8 pin connectors that pass 12 volts of power directly to the processors. Each jack features solid pins that can handle more current than hollow-pin connectors. - DDR4 support
Improvements to trace routing design provide the Intel processors with enhanced access to memory bandwidth. ASUS OptiMem technology carefully maps memory signal pathways across different PCB layers to reduce path distance, and it adds shielding zones that significantly reduce crosstalk. - ASUS OptiMem
Revisions to the motherboard's trace routing provide the latest Intel processors with unrestricted access to memory bandwidth. ASUS OptiMem technology carefully maps memory signal pathways across different PCB layers to reduce vias and adds shielding zones that significantly reduce crosstalk. - Three M.2 slots (up to 64 Gbps)
PRIME B760-PLUS D4 offers a total of three M.2 slots that support data-transfer speeds of up to 64 Gbps via PCIe 4.0, enabling quicker boot-up and app load times with OS or application drives. - PCIe 5.0 slot
PCIe 5.0 offers twice the data transfer speed of PCIe 4.0, making it robust enough to handle new data-heavy tasks. PCIe 5.0 also brings other benefits, such as electrical changes to improve signal integrity, backward-compatible CEM connectors for add-in cards, and compatibility with previous versions of PCI Express. - USB 3.2 Gen 2x2 Type-C
A batch of USB ports support high-end rigs loaded with peripherals, including the rear USB Type-C connector with ultrafast USB 3.2 Gen 2x2 for transmission speeds of up to 20 Gbps. - Front USB Type-C
A full complement of USB ports support high-end rigs loaded with peripherals, including a front-panel USB 3.2 Gen 1 Type-C connector that provides data transfer speeds of up to 5 Gbps. - Thunderbolt 4 (USB4 compliant)
PRIME B760-PLUS D4 motherboard features USB4 support via a Thunderbolt (USB4) header. Additionally, this card has a daisy-chain function for multi-screen connection and supports up to dual displays with 4K resolution.
