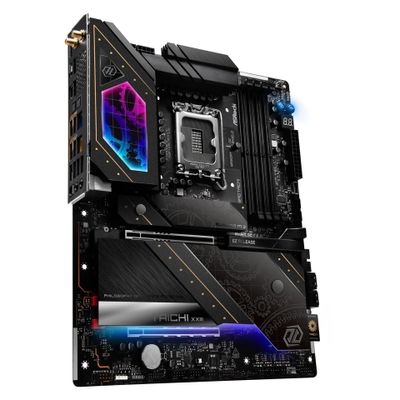

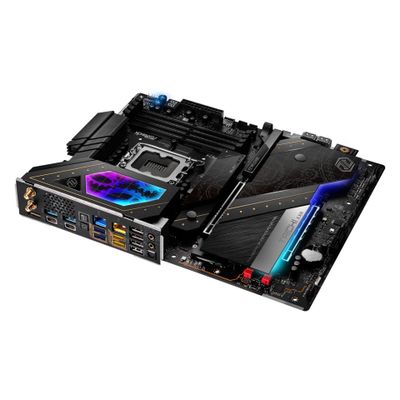

ASRock Z890 TAICHI - motherboard - ATX - LGA1851 Socket - Z890

ASRock Z890 TAICHI - motherboard - ATX - LGA1851 Socket - Z890_thumb_3

ASRock Z890 TAICHI - motherboard - ATX - LGA1851 Socket - Z890_thumb_4

ASRock Z890 TAICHI - motherboard - ATX - LGA1851 Socket - Z890_thumb_5

ASRock Z890 TAICHI - motherboard - ATX - LGA1851 Socket - Z890_1

ASRock Z890 TAICHI - motherboard - ATX - LGA1851 Socket - Z890_2

ASRock Z890 TAICHI - motherboard - ATX - LGA1851 Socket - Z890_3

ASRock Z890 TAICHI - motherboard - ATX - LGA1851 Socket - Z890_4

ASRock Z890 TAICHI - motherboard - ATX - LGA1851 Socket - Z890_5

Article-No.:

255620

Manufacturer-No.:

90-MXBPR0-A0UAYZ

EAN/GTIN:

4710483949685

Compare

Print view

Technical specifications

General

Packaged Quantity

Processor

Installed Qty

Max Supported Qty

Mainboard

Form Factor

ATX

Chipset Type

Intel Z890

Supported RAM Technology

DDR5 SDRAM

Supported RAM Integrity Check

Non-ECC

Supported RAM Speed

5800 MHz (O.C.), 4800 MHz, 6800 MHz (O.C.), 4400 MHz, 5600 MHz, 9600 MHz (O.C.)

Processor Socket

LGA1851 Socket

Power Connectors

24-pin main power connector, 2 x 8-pin ATX12V connectors

Supported RAM (Registered or Buffered)

Unbuffered

RAM Slots

4 DIMM slots

Interfaces

Internal Interfaces

1 x USB-C 3.2 Gen 2x2 - header, 1 x audio - header, 4 x USB 2.0 - header, 1 x speaker - header, 4 x USB 3.2 Gen 1 - header, 1 x SPI - header

RAM

Features

Intel Extreme Memory Profiles (XMP) 3.0, AMD EXPO technology, Dual channel memory architecture

Max Supported Size

256 GB

Video Output

Type

Graphics adapter (CPU required)

Audio Output

Type

Sound card

Compliant Standards

High Definition Audio

Audio Codec

Realtek ALC4082 / ESS ES9219

Audio

High Definition Audio (5.1-channel)

Networking

Data Link Protocol

Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6), Bluetooth 5.4, IEEE 802.11be (Wi-Fi 7), IEEE 802.11n, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, 5 Gigabit Ethernet, 2.5 Gigabit Ethernet

Network Controller

Dragon RTL8125BG / Realtek RTL8126

Network

802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4, 5 Gigabit Ethernet

Expansion Slots

1 x CPU, 1 x M.2 socket (2230 M.2 Key E slot), 1 x M.2 socket (2280 M.2 Key M slot), 1 x PCIe 5.0 x16, 1 x M.2 socket (2230/2242/2260/2280 M.2 Key M slot), 4 x M.2 socket (2260/2280 M.2 Key M slot), 4 x DIMM 288-pin, 1 x PCIe 4.0 x16 (x4 mode)

Interfaces

Storage Interfaces

PCIe 4.0 -connectors: 4 x Hyper M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5, SATA-600 / PCIe 4.0 -connectors: 1 x Hyper M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5, PCIe 5.0 -connectors: 1 x Blazing M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5, SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5

Storage

Hyper M.2 socket, Blazing M.2 socket, Serial ATA-600 (RAID)

USB / FireWire

USB 3.2 Gen 1, USB 3.2 Gen 2, USB4, USB-C 3.2 Gen 2x2

Storage Ports

4 x SATA-600 (RAID), 5 x Hyper M.2, 1 x Blazing M.2

USB / FireWire Ports Configuration (Active)

2 x USB4 + 4 x USB 3.2 Gen 2 + 4 x USB 3.2 Gen 1 + 2 x USB 2.0

USB / FireWire Ports Configuration (Headers)

1 x USB-C 3.2 Gen 2x2 + 4 x USB 3.2 Gen 1 + 4 x USB 2.0

Software

Software Included

ASRock Polychrome SYNC, ASRock Dragon 2.5G LAN Software, ASRock A-Tuning

Dimensions & Weight

Width

30,5 cm

Depth

24,4 cm

Description

The ASRock Z890 TAICHI motherboard is designed for high-performance computing, featuring capabilities for both gamers and content creators. It supports Intel Core Ultra processors and DDR5 RAM, allowing for a seamless experience in multitasking and heavy workloads. With its robust BIOS and hardware features, such as ASRock Instant Flash and Auto Driver Installer, it ensures easy management and updates. The motherboard also offers extensive connectivity options including USB 4, HDMI, and 2.5 Gigabit LAN, catering to modern peripherals and network demands.

Robust memory support
With 4 DIMM slots supporting DDR5 SDRAM up to 9600 MHz (O.C.), the memory architecture allows efficient multitasking and demanding applications. It also features dual-channel memory architecture and support for Intel Extreme Memory Profiles (XMP) 3.0 and AMD EXPO technology.
Advanced connectivity options

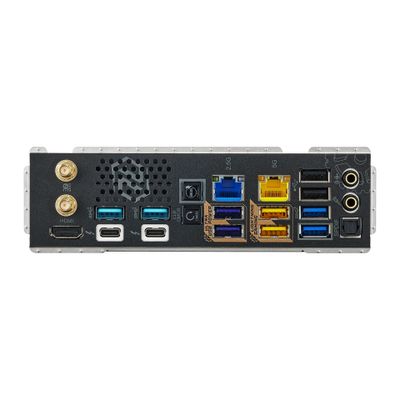

The ASRock Z890 TAICHI is equipped with numerous interfaces including USB 4 and USB 3.2 ports, as well as HDMI for video output. A strong network capability with 2.5 Gigabit Ethernet ensures fast and reliable Internet connectivity.
Enhanced cooling design
The motherboard features a VRM heatsink design and enlarged heatsink armor, facilitating optimal thermal performance under heavy loads. The thoughtful cooling solutions help maintain temperature stability during demanding tasks.
User-friendly features
User-focused features such as ASRock Full HD UEFI and EZ Mode streamline the setup and configuration process. The pre-mounted I/O shield and BIOS FlashBack button simplify installation and troubleshooting.
Comprehensive audio support
Includes a high definition audio compliant sound card with multiple output options such as audio line-out and SPDIF out. The Nahimic Audio Enhancer adds to the immersive audio experience, perfect for gaming and multimedia.

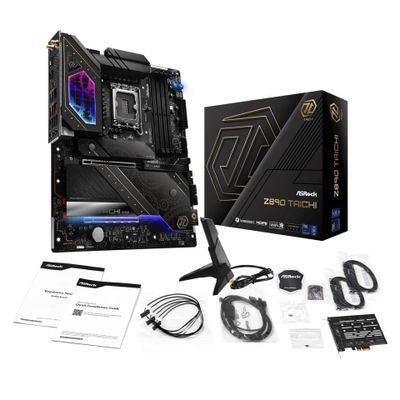

Product content

ASRock Z890 TAICHI
4 x Serial ATA cable
1 x M.2 screw, 3 thermistor cables, 1 to 3 ARGB LED splitter cable, standoff, ASRock WiFi 2.4/5/6 GHz aerial, M.2 expansion card
