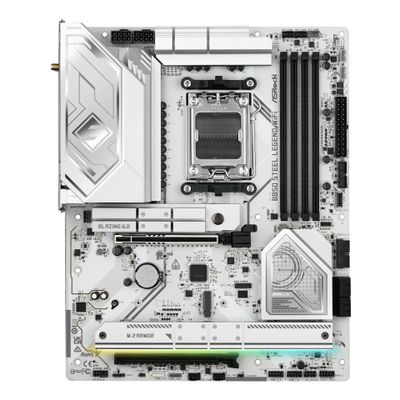

- ASRock B850 STEEL LEGEND WIFI
- Software
/asset/0/e/2/b/0e2b0bdc0ba8735ca8a9c30c11c1182ae615408f_262368.jpg)
/asset/a/1/e/f/a1efb403cb49b47ef2698ab141d669f4510ac4a0_262368_2.jpg)
/asset/a/c/e/9/ace91ccad8a783e26fa46ac2d3c53705595817cc_262368_3.jpg)
/asset/0/e/2/b/0e2b0bdc0ba8735ca8a9c30c11c1182ae615408f_262368.jpg)
/asset/a/1/e/f/a1efb403cb49b47ef2698ab141d669f4510ac4a0_262368_2.jpg)
/asset/a/c/e/9/ace91ccad8a783e26fa46ac2d3c53705595817cc_262368_3.jpg)
Please login to see the price and order.
Article-No.:
262368
Manufacturer-No.:
90-MXBQS0-A0UAYZ
EAN/GTIN:
4711581490062
WEEE Nummer
DE46285170
Technical specifications
Description
Technical specifications
General
Packaged Quantity
1
Processor
Installed Qty
0
Max Supported Qty
1
Mainboard
Form Factor
ATX
Compatible Processors
Ryzen
Chipset Type
AMD B850
Supported RAM Technology
DDR5 SDRAM
Supported RAM Integrity Check
Non-ECC, ECC
Supported RAM Speed
8000 MHz (O.C.)
Processor Socket
Socket AM5
Power Connectors
24-pin main power connector, 2 x 8-pin ATX12V connectors
Supported RAM (Registered or Buffered)
Unbuffered
RAM Slots
4 DIMM slots
Interfaces
Internal Interfaces
1 x USB-C 3.2 Gen 1 - header, 1 x audio - header, 4 x USB 2.0 - header, 2 x USB 3.2 Gen 1 - header, 1 x SPI - header
RAM
Features
AMD EXPO technology, Intel Extreme Memory Profiles (XMP), Dual channel memory architecture
Max Supported Size
256 GB
Video Output
Type
Graphics adapter (CPU required)
Audio Output
Type
Sound card
Compliant Standards
High Definition Audio
Audio Codec
Realtek ALC4082
Audio
High Definition Audio (8-channel)
Networking
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.4, IEEE 802.11be (Wi-Fi 7), IEEE 802.11n, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, 2.5 Gigabit Ethernet
Network Controller
Dragon RTL8125BG
Network
2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4
Bluetooth
Expansion Slots
Expansion Slots
1 x CPU, 1 x PCIe 5.0 x16, 2 x M.2 socket (2260/2280 M.2 Key M slot), 1 x M.2 socket (2230/2242/2260/2280 M.2 Key M slot), 1 x M.2 socket (Key E, for wireless module), 1 x M.2 socket (2280 M.2 slot), 4 x DIMM 288-pin, 1 x PCIe 4.0 x16 (x4 mode)
Interfaces
Storage Interfaces
PCIe 5.0 -connectors: 1 x Blazing M.2, PCIe 4.0 -connectors: 3 x Hyper M.2, ASMedia ASM1061: SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10
Storage
Hyper M.2 socket, Blazing M.2 socket, Serial ATA-600 (RAID)
USB / FireWire
USB-C 3.2 Gen 2x2, USB-C 3.2 Gen 1
Storage Ports
4 x SATA-600 (RAID), 3 x Hyper M.2, 1 x Blazing M.2
USB / FireWire Ports Configuration (Active)
1 x USB-C 3.2 Gen 2x2 + 6 x USB 3.2 Gen 1 + 2 x USB 2.0
USB / FireWire Ports Configuration (Headers)
1 x USB-C 3.2 Gen 1 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0
Software
Software Included
ASRock Polychrome SYNC, ASRock Dragon 2.5G LAN Software, ASRock A-Tuning
Dimensions & Weight
Width
30,5 cm
Depth
24,4 cm
Description
The ASRock B850 STEEL LEGEND WIFI motherboard is designed for high-performance computing with a focus on versatility and connectivity. Built on the AMD B850 chipset, it supports Ryzen 7000, 8000, and 9000 Series processors, providing a robust architecture for gaming and productivity. With support for DDR5 SDRAM and four DIMM slots, this motherboard offers excellent memory performance for demanding applications. Equipped with advanced networking capabilities, including 2.5 Gigabit Ethernet and Wi-Fi 7 support, the B850 STEEL LEGEND WIFI ensures seamless connectivity whether wired or wireless. A variety of expansion slots including PCIe 5.0 x16, PCIe 4.0 x16, and multiple M.2 sockets provide flexible options for upgrades. The motherboard also features a high definition audio codec, ensuring an immersive sound experience for gamers and media enthusiasts alike.
- Robust architecture for performance
The ASRock B850 STEEL LEGEND WIFI motherboard is built on the AMD B850 chipset, enabling support for Ryzen processors and delivering a reliable platform for both gaming and multitasking. - Advanced networking capabilities
Featuring 2.5 Gigabit Ethernet and support for Wi-Fi 7, this motherboard ensures quick and stable Internet connections for online gaming and streaming. - Versatile expansion options
The board comes equipped with various expansion slots, including PCIe 5.0 and multiple M.2 sockets, providing room for upgrading components and enhancing performance. - Immersive audio experience
High definition audio output is enabled by the Realtek ALC4082 codec, offering an 8-channel sound system that enhances the overall user experience. - User-friendly design
With features like a pre-mounted I/O shield, DIY-friendly layout, and ASRock's Auto Driver Installer, setting up this motherboard is convenient for both new and experienced builders.
