Product content
Product content
- ASRock B860M-X WiFI
- 2 x Serial ATA cable
- 2 x M.2 screws, IO shield, standoff for M.2 socket, 2 x ASRock WiFi 2.4/5/6 GHz Antennas
- Software
/asset/e/2/1/3/e213d24ec72399525cbc61c8713e055135f830b6_262362.jpg)
/asset/9/8/7/b/987b491d6b5a8e4421a6f4858e1c869ad289605e_262362_2.jpg)
/asset/4/b/a/c/4bac8890bc860b266fe3d306e7e95eb025b518f2_262362_3.jpg)
/asset/a/d/e/c/adec75fc6550eab1a1454f309c74d75d6aff0e8c_262362_4.jpg)
/asset/e/2/1/3/e213d24ec72399525cbc61c8713e055135f830b6_262362.jpg)
/asset/9/8/7/b/987b491d6b5a8e4421a6f4858e1c869ad289605e_262362_2.jpg)
/asset/4/b/a/c/4bac8890bc860b266fe3d306e7e95eb025b518f2_262362_3.jpg)
/asset/a/d/e/c/adec75fc6550eab1a1454f309c74d75d6aff0e8c_262362_4.jpg)
Please login to see the price and order.
Article-No.:
262362
Manufacturer-No.:
90-MXBRY0-A0UAYZ
EAN/GTIN:
4711581490413
WEEE Nummer
DE46285170
Technical specifications
Description
Technical specifications
General
Packaged Quantity
1
Processor
Installed Qty
0
Max Supported Qty
1
Mainboard
Form Factor
Micro ATX
Chipset Type
Intel B860
Supported RAM Technology
DDR5 SDRAM
Supported RAM Integrity Check
Non-ECC
Supported RAM Speed
6800 MHz (O.C.), 6400 MHz, 9066 MHz (O.C.)
Processor Socket
LGA1851 Socket
Power Connectors
4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector
Supported RAM (Registered or Buffered)
Unbuffered, Clocked unbuffered
RAM Slots
2 DIMM slots
Interfaces
Internal Interfaces
1 x USB-C 3.2 Gen 1 - header, 1 x audio - header, 4 x USB 2.0 - header, 2 x USB 3.2 Gen 1 - header, 1 x SPI - header
RAM
Features
Intel Extreme Memory Profiles (XMP) 3.0, AMD EXPO technology, Dual channel memory architecture
Max Supported Size
128 GB
Video Output
Type
Graphics adapter (CPU required)
Audio Output
Type
Sound card
Compliant Standards
High Definition Audio
Audio Codec
Realtek ALC897
Audio
High Definition Audio (8-channel)
Networking
Data Link Protocol
Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.3, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, 2.5 Gigabit Ethernet
Network Controller
Dragon RTL8125BG
Network
2.5 Gigabit Ethernet, Bluetooth 5.3, 802.11a/b/g/n/ac/ax (Wi-Fi 6E)
Bluetooth
Expansion Slots
Expansion Slots
1 x CPU, 1 x PCIe 4.0 x4, 1 x M.2 socket (2230 M.2 Key E slot), 1 x M.2 socket (2260/2280 M.2 Key M slot), 1 x M.2 socket (2230/2242/2260/2280 M.2 Key M slot), 2 x DIMM 288-pin, 1 x PCIe 4.0 x16, 1 x PCIe 4.0 x1
Interfaces
Storage Interfaces
PCIe 4.0 -connectors: 1 x Hyper M.2, PCIe 5.0 -connectors: 1 x Blazing M.2, SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
Storage
Hyper M.2 socket, Blazing M.2 socket, Serial ATA-600 (RAID)
USB / FireWire
USB 3.2 Gen 1, USB-C 3.2 Gen 2x2, USB-C 3.2 Gen 1
Storage Ports
4 x SATA-600 (RAID), 1 x Hyper M.2, 1 x Blazing M.2

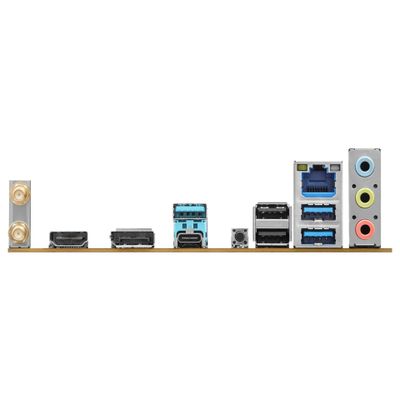

USB / FireWire Ports Configuration (Active)
1 x USB-C 3.2 Gen 2x2 + 3 x USB 3.2 Gen 1 + 2 x USB 2.0
USB / FireWire Ports Configuration (Headers)
1 x USB-C 3.2 Gen 1 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0
Software
Software Included
ASRock Polychrome SYNC, ASRock Dragon 2.5G LAN Software, ASRock A-Tuning
Dimensions & Weight
Width
24,4 cm
Depth
21,8 cm
Description

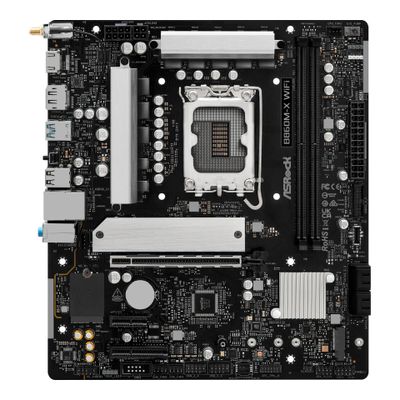

The ASRock B860M-X WiFi motherboard is designed to provide reliable performance for users looking to build or upgrade their systems. Supporting Intel Core Ultra processors, this micro ATX model offers ample RAM capability with support for DDR5 SDRAM, featuring dual-channel memory architecture and Intel Extreme Memory Profiles (XMP) 3.0 technology for performance tuning. Equipped with multiple expansion slots including PCIe 4.0 for graphics and storage options, it ensures that your system can handle demanding tasks with ease. Networking is a strong point with built-in 2.5 Gigabit Ethernet and Wi-Fi 6E (802.11ax), providing fast and reliable connectivity for online gaming, streaming, or downloading large files. The audio output features high definition audio with Realtek ALC897 codec, allowing for immersive sound quality. Additionally, with an array of USB ports, including USB-C 3.2 Gen 2x2, this motherboard offers versatile options for peripherals and storage devices, making it a well-rounded choice for any user.
- Robust connectivity options
This motherboard includes a variety of connectivity options including 2.5 Gigabit Ethernet and multiple USB ports such as USB-C 3.2 Gen 2x2, allowing for quick data transfer and a stable Internet connection. - Versatile expansion capabilities
With three M.2 slots and multiple PCIe 4.0 slots, the B860M-X WiFi motherboard can accommodate a wide array of expansion cards and storage solutions, ensuring users can tailor their setup according to their needs. - Enhanced audio experience
The motherboard features a high definition audio codec, allowing for 8-channel audio output that delivers a rich sound experience, perfect for gaming and multimedia applications. - Advanced memory support
Support for DDR5 SDRAM with Intel XMP technology enables higher speeds and better performance for memory, ensuring a responsive user experience. - User-friendly BIOS features
Equipped with AMI UEFI BIOS and user experiences such as ASRock Instant Flash and EZ Mode, the motherboard provides a straightforward way to manage system settings and updates.
