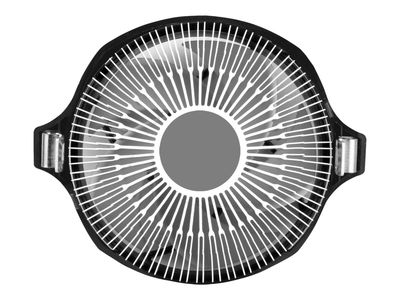

ARCTIC processor cooler Alpine 23

ARCTIC processor cooler Alpine 23_thumb_3

ARCTIC processor cooler Alpine 23_thumb_4

ARCTIC processor cooler Alpine 23_thumb_5

Article-No.:

151360

Manufacturer-No.:

ACALP00035A

EAN/GTIN:

4895213702829

WEEE Nummer

DE61101640

Compare

Print view

Technical specifications

General

Product Type

Processor cooler

Packaged Quantity

Heatsink & Fan

Fan Diameter

90 mm

Rotation Speed

100-2000 rpm

Compatible With

Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket FM2, Socket AM4

Power Connector

4-pin fan connector

Features

Pulse-width modulation (PWM) support

Heatsink Material

Aluminum

Fan Bearing

Fluid dynamic bearing

Noise Level

0.3 Sone

Dimensions & Weight

Width

9,86 cm

Depth

12,1 cm

Height

6,5 cm

Weight

275,5 g

Dimensions & Weight (Shipping)

Shipping Width

11,1 cm

Shipping Depth

11,1 cm

Shipping Height

7,6 cm

Service & Support

Type

6-year warranty

Miscellaneous

Color Category

Black, White

Description

Improved cooling performance

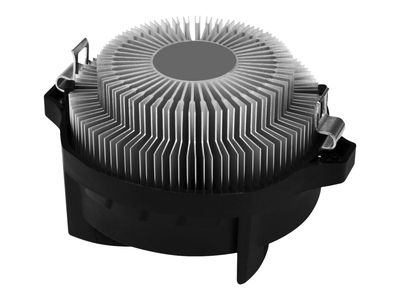

The high thermal conductivity of aluminum is fully retained by a new type of extrusion. This production process creates a powerful yet very compact radial heat sink. The particularly thin cooling fins are fanned out in a Y-shape. This increases the surface area of the heat sink and therefore the cooling capacity.
Wide RPM range
The Alpine 23 features an innovative motor technology with a very wide, PWM-controlled RPM range. This keeps the noise level at a minimum while guaranteeing maximum cooling performance when needed.
Lower power consumption & minimum vibration
The Alpine 23 is powered by an updated motor and runs much more efficiently than its predecessors. Due to sinus-magnetizing the new motor creates just 5 % of the vibration from commutation of a regular DC-motor. These factors contribute towards saving energy, lowering the coil temperature and reducing vibrations to a minimum without compromising performance.
High-quality bearing
Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan.
Extended life span
A 10 °C lower motor temperature roughly doubles the life span of a fan. The ARCTIC motor has a four times longer service life through its low coil temperature.
Pre-applied MX-2 thermal paste
The pre-applied, high-performance MX-2 thermal compound ensures fast and clean installation.
Easy and tool-free installation
Thanks to the mounting clips, the installation is really easy. Alpine 23 is simply plugged onto the existing AMD retention modules and screwed tight.
