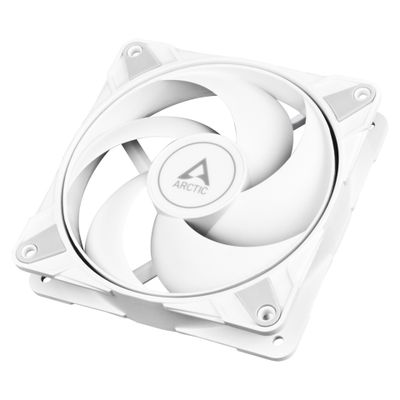

Arctic case fan P12 Max - 12 cm

Article-No.:

243996

Manufacturer-No.:

ACFAN00293A

EAN/GTIN:

4895213704267

Compare

Print view

Technical specifications

General

Product Type

Case fan

Packaged Quantity

Heatsink & Fan

Fan Diameter

120 mm

Fan Height

25 mm

Rotation Speed

400-3300 rpm

Air Flow

81.04 cfm

Power Connector

4-pin PWM

Features

PWM control

Fan Bearing

Fluid dynamic bearing

Air Pressure

4.35 mm

Noise Level

0.6 Sone

Start Voltage

3,9 V

Cable Length

40 cm

Dimensions & Weight

Width

12 cm

Depth

12 cm

Height

2,5 cm

Weight

184 g

Dimensions & Weight (Shipping)

Shipping Width

12,7 cm

Shipping Depth

12,5 cm

Shipping Height

3 cm

Shipping Weight

214 g

Service & Support

Type

6-year warranty

Miscellaneous

Color

White

Features

Box package

Color Category

White

Description

The ARCTIC P12 Max is a case fan designed to enhance airflow and cooling performance in any setup. With a diameter of 120 mm and a height of 25 mm, this fan operates efficiently with a rotation speed ranging from 200 to 3300 rpm, providing airflow of 81.04 cfm. Its PWM control feature ensures that the fan adjusts its speed according to the temperature of the system, maintaining quiet operation with a noise level of just 0.6 Sone.
Optimized for diverse environmental conditions, the P12 Max operates within a temperature range of 0°C to 40°C. Equipped with a cable length of 40 cm and a rated voltage of 12 V, it is user-friendly and can be easily integrated into any case. The air pressure of 4.35 mm ensures that cooling is effective, making this fan a valuable addition to any computer build.

Designed for continuous operation
The ball bearing of the Japanese manufacturer NMB ensures a particularly long service life. Compared to sleeve bearings, ball bearings produce a significantly higher bearing noise. Therefore, the P12 Max is the perfect choice if you want to ensure permanent operation at high speeds.
Extremely wide speed range
Building upon the success of the P12 PWM, the P12 Max extends the controllable speed to an impressively wide range from 200 rpm up to 3300 rpm. This enables a quiet operation when low airflow is needed and also an unprecedented level of performance on heatsinks and radiators. The P12 Max provides a significant performance boost to existing air and water cooling solutions.
Maximum performance - without compromises
The P12 Max delivers focused airflow and high static pressure, making it suitable for all scenarios. The fan is optimized for use on radiators, heat sinks, pinholes, and mesh. Therefore, the P12 Max is the ideal fan for enthusiasts and professionals who are looking for maximum performance with a long service life.
0 dB mode - zero rpm
The fan speed can be throttled down to a standstill via PWM. This allows silent operation in IDLE and at the same time guarantees maximum performance when required. Thus, the P12 Max allows an incomparably dynamic adjustment of the speed, so that the airflow can be perfectly regulated for every case.
Improved stability
The P12 Max features a closed fan-wheel design. The advantage of this fan wheel combination is pressure stability without compromise. In scenarios with high-pressure resistances and higher speeds, the force effect is distributed uniformly over the entire fan wheel and enables low-vibration rotation while maintaining high static pressure.
Maximum smoothness, minimum vibration
Due to a sinus-magnetizing, the motor only creates about 5 % of the vibration from commutation of a regular DC-motor without filter. The rubber pads mounted at the corners additionally dampen the residual vibrations caused by the higher revolutions.
